Quick Details
-
Model Number:
-
ADS-E1818-18W-HE
-
Power Consumption:
-
48W
-
Product name:
-

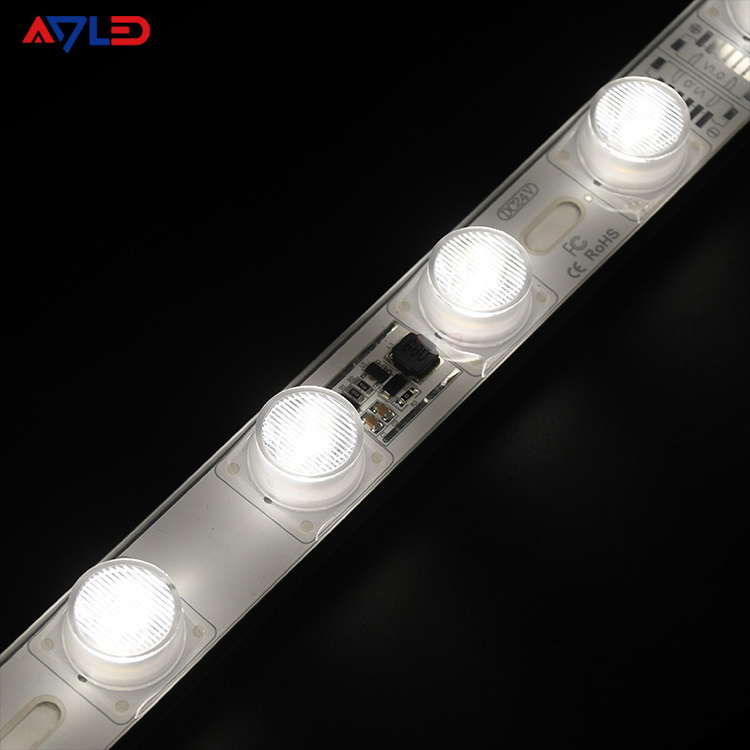

High Power Edge Lit 24V 4400lm IP67 For Advertising Light Box
-
Emitting Color:
-
3000K/4000K/6500K/10000K
-
LED Light Source:
-
SMD1818
-
Input Voltage:
-
DC24V
-
LED QTY:
-
18 pcs/m
-
IP Rating:
-
IP67
-
Driven mode:
-
Constant current
-
Size:
-
940*28*18mm
-
Beam Angle:
-
15x45°
-
Application:
-
Recommended depth 10-30cm internal light boxes
Quick Details
-
Shape:
-
Rectangle Strip
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ADLED
-
Model Number:
-
ADS-E1818-18W-HE
-
Power Consumption:
-
48W
-
Product name:
-
High Power Edge Lit 24V 4400lm IP67 For Advertising Light Box
-
Emitting Color:
-
3000K/4000K/6500K/10000K
-
LED Light Source:
-
SMD1818
-
Input Voltage:
-
DC24V
-
LED QTY:
-
18 pcs/m
-
IP Rating:
-
IP67
-
Driven mode:
-
Constant current
-
Size:
-
940*28*18mm
-
Beam Angle:
-
15x45°
-
Application:
-
Recommended depth 10-30cm internal light boxes
Products Description
|
Model
|
ADS-E1818-18W-HE
|
|
LED type
|
SMD1818 LED
|
|
LEDs per metre
|
18LEDs
|
|
Operating voltage
|
DC24V
|
|
Watts per metre
|
48W
|
|
Colour temperature
|
3000K/4000L/6500K/10000K
|
|
IP rating
|
IP67
|
|
Length
|
940mm
|
|
Driven Mode
|
Constant Current
|
|
Beam angle
|
15x45°
|
|
PCB Width
|
28mm
|
|
Warranty
|
5 Years
|
|
Certifications
|
UL/CE/RoHS/FCC
|
|
Dimmable
|
0-100% dimmable by LED strip light dimmer
|
FAQ
Q: Which lighting project use your LED light bars?
Our LED light bars used in Olympic Games light boxes, Coca Cola poster box, Metro LED light frames, Airport LED fabric frame, etc.
Q: How to install LED light bars in double-sided fabric frame displays?
Step 1 : Caculate LED light bars quantity and how much LED power supply
Step 2: Clean the surface of aluminum frame light box
Step 3: Install LED light bars to two sides or four sides of lightbox
Step 4: Connect LED power supply with LED bar module
Q: How many piece (1m LED bar) can connect in parallel?
You can connect maximum 3pcs LED light bar.
Q: Can I cut LED light bars?
Yes, you can cut LED light bars at the soldering point.
DC12V edge lit LED bar can be cut each 1LED
DC24V edge lit LED bar can be cut each 2LEDs
