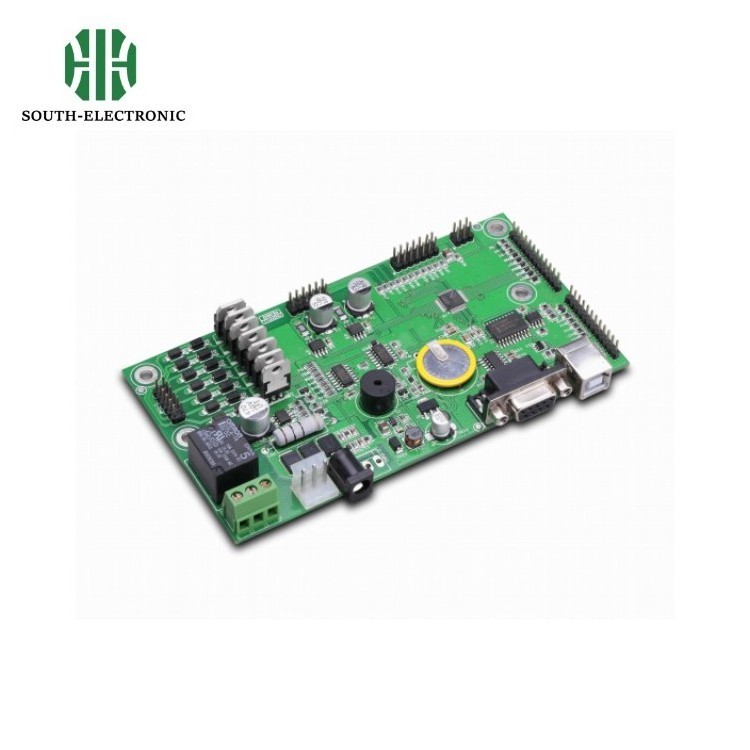

Original Custom Customized Turnkey Electronic Product Control PCB Printed Circuit Board Assembly Manufacture Factory Price PCBA

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.1

Free Inquiry

Customized Request

Quick Details

South Electronic PCB

5-year warranty

Lifetime After-Sales Service

Exceed clients expectations

SMT PRPGRESS	ITEM	PRODUCTION CAPABILITY
_{Solde Paste Print}	Max PCB size can be processed	900*600mm²
		Max PCB WT can be processed	8kg
		Actual printing accuracy	±25μm
		System calibration repeatability	±10μm
		Squeegee pressure detection	Pressure closed loop control system
SPI (Solder Paste Inspection)	Min Detectable solder ball pitch	100μm
		X-Y axis accuracy	0.5μm
		False positive rate	≤0.1%
Mount	Min-Max machinable components	0.30.15 mm²--200125 mm²
		Max Height of machinable components	25.4mm
		Max Weight of machinable components	100g
		BGA/CSP Min ball spacing, ball diameter	0.30mm，0.15mm
		Mount accuracy	±22μm，±0.05
		Min-Max PCB size can be processed	5050 mm²—850560 mm²
		Min-Max PCB thickness can be processed	0.3mm--6mm
		Max PCB WT can be processed	6kg
		Max types of materials can place up to the line	500
3D X-Ray	Gain	Geometric magnification 2000; system magnification 12000
		Resolution	1μm /nm
		Rotation angle & tilt angle of view	any ±45°+360°Spin
AXI	Min components can be processed	1005
		Min detectable lead pitch	0.4mm（QFP）
		Min detectable tin thickness	0.0127mm
