High Quality A Shape Tent Outdoor Wedding Tent Custom Large Waterproof Wedding Party Event Marquee Tent For Outdoor

High Quality A Shape Tent Outdoor Wedding Tent Custom Large Waterproof Wedding Party Event Marquee Tent For Outdoor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $762

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: White Aluminum Frame Tent for Events

Type:: A Shape Tent

Cover Material:: 850 g/m2 for roof, 650 g/m2 for walls , Double PVC-Coated Polyester

Sidewall Material:: Glass or fiber glass wall, ABS hard wall

Lifespan of Frame:: 15 to 20 years if well maintained

Lifespan of Cover:: 5 to 10 more years if well maintained

Max wind Speed Allowance:: 100km/h

Application:: party, event, ceremony,Wedding, promotion activity, tent hire, etc

Color:: White, blue, black,green, yellow, red, etc

Quick Details

Brand Name:: Jieol

Place of Origin:: Guangdong, China

Model Number:: TIH-45, TIH-45

Product name:: White Aluminum Frame Tent for Events

Type:: A Shape Tent

Cover Material:: 850 g/m2 for roof, 650 g/m2 for walls , Double PVC-Coated Polyester

Sidewall Material:: Glass or fiber glass wall, ABS hard wall

Lifespan of Frame:: 15 to 20 years if well maintained

Lifespan of Cover:: 5 to 10 more years if well maintained

Max wind Speed Allowance:: 100km/h

Application:: party, event, ceremony,Wedding, promotion activity, tent hire, etc

Color:: White, blue, black,green, yellow, red, etc

Product Description

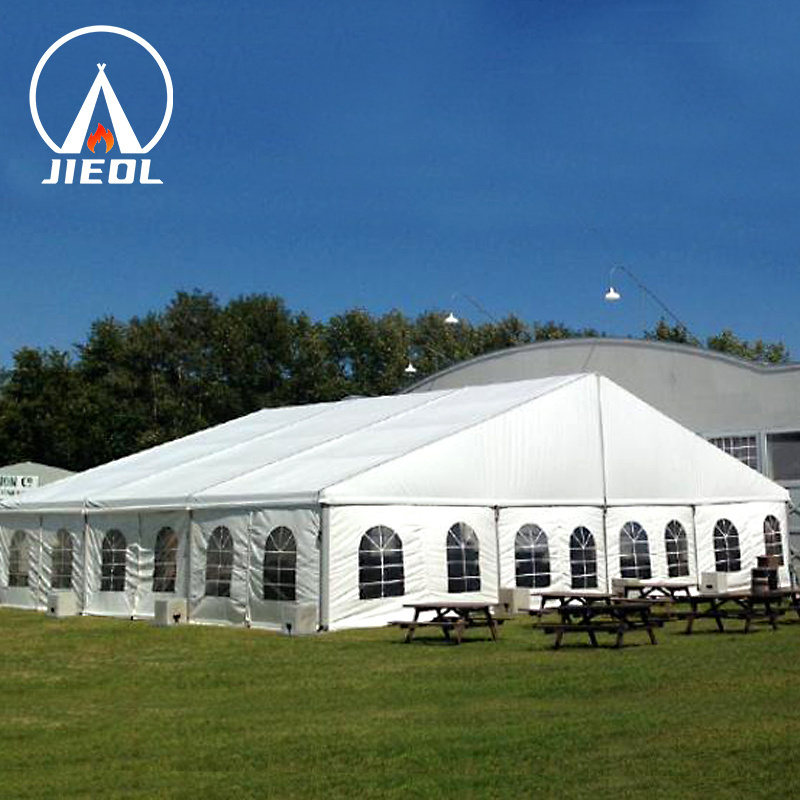

A Shape Tent

Outdoor aluminum event tent is a new type of temporary building for outdoor activities. With the features of safe and reliable performance. easy to install and dismantle, convenient storage and transportation, free combination, Aluminum Tents are widely used in exhibition, celebration party, outdoor wedding, sports activities,festival activities (music festival, beer festival, food festival) warehouse and temporary construction. emergency relief and so on.

Tent Main Profile

Main profile: hard pressed extruded aluminum 6061/T6
Connector: strong hot-dip galvanized steel (Surface >60μm)
Wind load: max. 100km/h (can be reinforced)
Allowed temperature condition: -30 degree Celsius +70 degree Celsius
Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.

Tent Cover Specification

Cover: 850g/m² or 650g/m² White Double PVC-Coated,
Colorful PVC Cover, Tansparent PVC Cover，PU
Feature: Fire Retardant (DIN 4102 B1, M2), Wateroof, UV Resistant.

Specification & Size

Appearance

Roof Structure Shape : “A” Upright Support

Feature

1. Temporary tent: easy assembly and disassembly 2. Resuable： environmentally friendly 3. Suitable for most of the ground: lawn, gazebo, concrete 4. Firm structure: Category 8~12 typhoon 5. Large usable area 6. Customization: size, accessories

Structure

Frame structure: Hard pressed extruded aluminium 6061/T6(15HW), No rust, Oxidation resistance.

PVC cover: 850 g/m² or 650 g/m² white, transparent, color customization, 100% Waterproof, Flame retardant (DIN4102 B1, M2, CFM), UV resistant, Tear resistant, Self-cleaning ability, Mildew resistance, etc.

Connector: Hot-dip galvanized steel insert.

Allowed temperature condition: -30 degree Celsius + 70 degree Celsius.

Wind load: max. 120 km/h (can be reinforced)

Snow load: 75 kg/m² (snow can't stay if use big degree roof pitch design)

Easy to be assembled and dismantled, movable.

No pole inside, 100% available interior space.

3 meter Bay Distance
Clear Span Width	Ridge Height	Tent size	Profile size	Material
6m	3.7m	*632.63.7m**	*84483mm*	T6061-T6
8m	4m	*832.64m**	*88483mm*	T6061-T6
10m	4.4m	*1032.64.4m**	*100483mm*	T6061-T6
12m	4.8m	*1232.64.8m**	*100483mm*	T6061-T6
