Quick Details
-
Weight (KG):
-
600 KG
-
Power:
-
Cusomized
-
Dimension(L*W*H):
-
Customer's Requirement
-
Name:
-
Road shot blasting machine
-
Application:
-
Remove dirt and anti-slip
-
Mode of operation:
-
Horizontal automatic frequency conversion
-
Color:
-
Customers Requirement
-
Overall dimension:
-
Customers Requirement
-
Operate:
-
Horizontal movement
-
Advantages:
-
Anti-skid road surface
-
Abrasive:
-
Steel Grits
-
Voltage:
-
custom
-
Usage:
-
Variable frequency speed regulation
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DINGTIAN
-
Core Components:
-
shot blasting turbine, dust collector,etc., Tossing head
-
Weight (KG):
-
600 KG
-
Power:
-
Cusomized
-
Dimension(L*W*H):
-
Customer's Requirement
-
Name:
-
Road shot blasting machine
-
Application:
-
Remove dirt and anti-slip
-
Mode of operation:
-
Horizontal automatic frequency conversion
-
Color:
-
Customers Requirement
-
Overall dimension:
-
Customers Requirement
-
Operate:
-
Horizontal movement
-
Advantages:
-
Anti-skid road surface
-
Abrasive:
-
Steel Grits
-
Voltage:
-
custom
-
Usage:
-
Variable frequency speed regulation

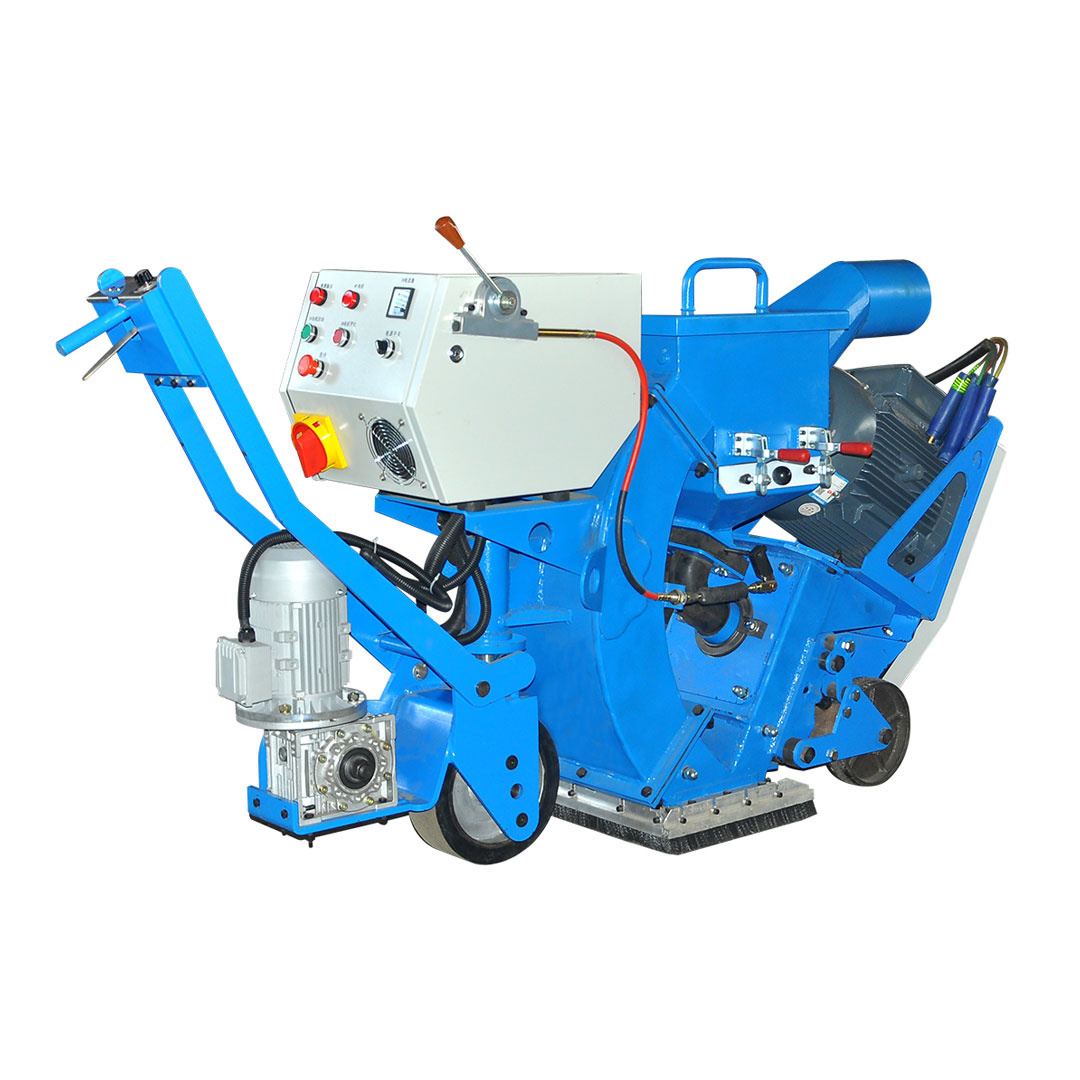

Road shot blasting machine is a machine that throws pellets at a high speed and a certain Angle to the working surface by mechanical method, so that the pellets impact the surface of the road, so that the surface of the road is rough and remove the residue effect, at the same time, the negative pressure generated by the dust collector will recover the pellets and the impurities and dust under the cleaning after the air flow cleaning, the intact pellets will be automatically recycled. Impurities and dust will also fall into the dust collection box.
The road shot blasting machine can clean up the floating slurry and impurities on the surface of the concrete at one time, exposing the new clean concrete surface, and can treat the surface of the concrete to make its surface uniform and rough, which greatly improves the adhesion strength of the waterproof layer and the concrete base, so that the waterproof layer and the bridge floor can be better combined, and the cracks of the concrete can be fully exposed. Nip in the bud.
Its functions are:
1. Used to improve the roughness and friction coefficient of asphalt road surface, so as to improve the adhesion of the road surface, to ensure the safety of driving. At the same time, the asphalt pavement attachment (such as fuel, oil, etc.) also has nowhere to escape, so it can improve the anti-skid performance of the road surface;
2. Steel bridge deck anti-corrosion coating
In our country, the application of shot blasting technology in the anti-corrosion coating of steel Bridges cannot be denied. Most Bridges under construction or already built will choose to use the shot blasting process for surface cleaning and roughness treatment before anti-corrosion primer or other spraying. The shot blasting machine used in Qingdao Trans-Bay Bridge can meet the requirements of SA2.5/SA3 steel plate cleanliness, and can control the roughness degree to meet the user's painting requirements. The whole process is dust-free operation and easy to move. It's environmentally friendly and convenient.
3. Maintain the tunnel
Due to the consideration of water resistance, fire resistance and oil resistance of the material, cement concrete is generally used in the tunnel pavement. However, this also puts forward higher requirements for the anti-skid performance of the tunnel road surface. For the above two problems that are still difficult to solve in our country, shot blasting technology is a treatment method with simple construction, small equipment investment, remarkable results and environmental protection.
In the waterproof pavement of concrete bridge floor, shot blasting process has been the requirements of the process specifications of European and American countries, and it is gradually accepted in China.
4. Preventive maintenance of airport runways
The use of road shot blasting machine makes it easy to remove tire tracks and marks on concrete and asphalt runways. Removing tire tracks (removing rubber), removing marking, restoring and increasing the surface roughness of the airport runway, and improving the friction coefficient of the runway are all the processing ranges of the road shot blasting machine. And in the process of treatment, easy to use, the road shot blasting work is orderly.
5. Municipal roads and paved surfaces
All kinds of road pavement in the city can be cleaned by the shot blasting machine, remove the road markings, and pull the road surface for busy traffic intersections to improve the road roughness and friction coefficient. Reduce problems in road construction. Therefore, the auxiliary role of road shot blasting machine for urban construction is gradually standardizing and facilitating our life.
|
Type
|
270
|
550
|
850
|
|
Clearing width
|
270mm
|
550mm
|
850mm
|
|
Impeller diameter
|
200mm
|
200mm
|
200mm
|
|
Shot blasting quantity
|
200kg/min
|
200kg/min
|
250kg/min
|
|
Travel speed
|
20m/min
|
20m/min
|
20m/min
|
|
First load of projectile
|
50kg
|
50kg
|
75kg
|
|
Fan power
|
4kw
|
4kw
|
4kw
|
The shot blasting machine is mainly used for the treatment of roads, Bridges, airport runways, parking lots and industrial floors,which can completely remove dirt and aging coatings, improve the anti-skid performance and service life of roads, and improve road traffic safety.
machine, L series sand blasting room, wheel mold shot blasting machine, steel plate pretreatment line, S11 series sand mixing machine. Can meet the user's various requirements. The company can design and produce various specifications of cleaning equipment according to the special requirements of users. "Based on innovation, focus on quality, honest service, sincere cooperation, common development" is the consistent pursuit of Dingtian people, to provide customers with high-quality, safe, reliable technology and products is the eternal policy of Dingtian people. We will continue to surpass ourselves.
Q: What standards are you carrying out for your products?
A: We produce according to the ISO9001 and ISO14001 rules.
Q: How to install the machine?
A: We will arrange 1~2 engineers to your factory to guide installation and assembly.
Q: What’s your international market?
A: We Have exported to about 40 countries and regions all around the world, such as, the USA, France, Singapore, Australia, Middle East, Brazil, Peru and so on.
Q: Do you sell steel shot or steel grit which can be uses in shot blasting machine?
A: We have four production lines for steel shot and steel grit production, one work shop for steel cut wire shots, and one workshop for stainless steel shot and Aluminium shot and so on.
Q: Do you have the right to export?
A: Yes, we registered in the Customs and gained the right to export by ourselves.
We are looking forward to doing business and making friends with you.
