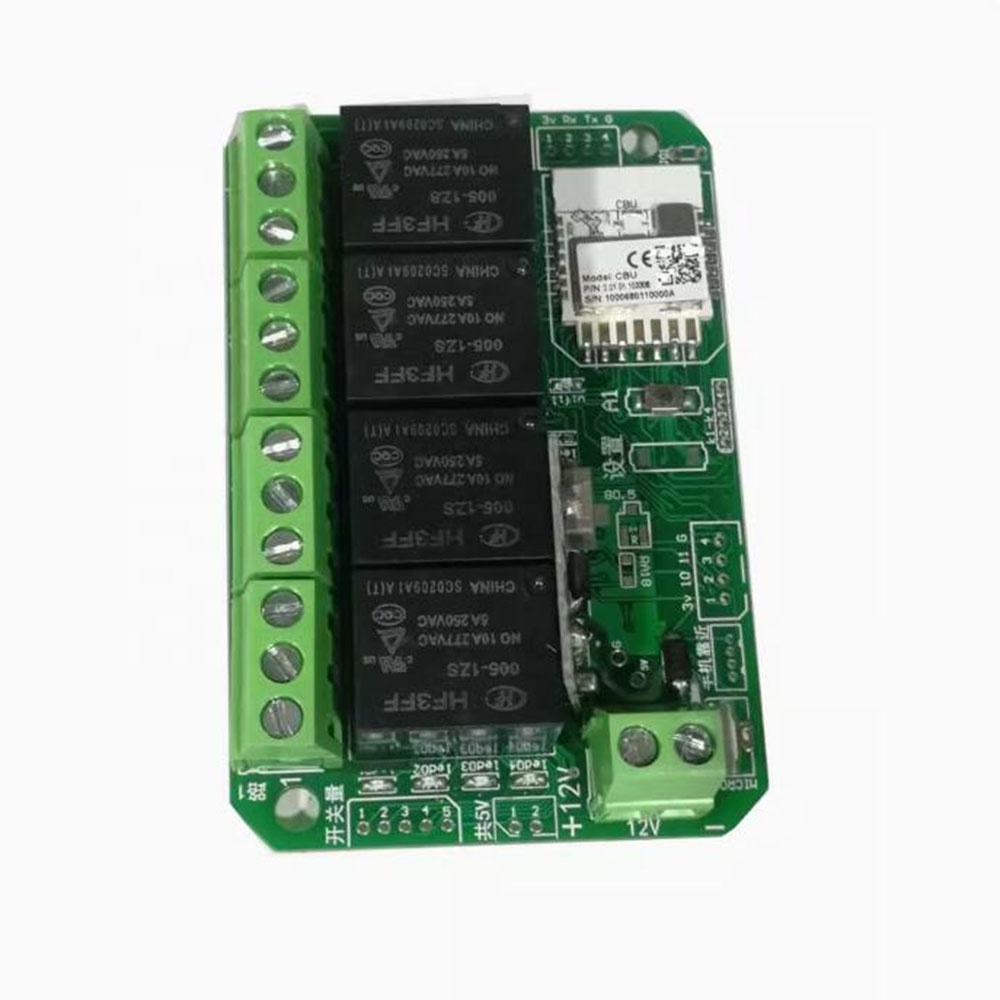

Taidacent 433mhz 12V 24V 4CH 12CH Multi-channel Zigbee Relay Module Zigbee Dimmer Smart Relay Switch Panel Board

[Interlock setting] Enter 2 above and 2 below, indicating channel 1.2. Interlock Enter 3 above and 3 below, indicating channel 12.3 interlocking Enter 10 above and 10 below, indicating channel 1.2.3.4.5.6.7.8.9.10 interlock Enter 4 above and 2 below, indicating channel 1.2. Interlock, 3.4. Interlock Enter 8 above and 2 below, indicating 1-2 interlock, 3-4 interlock, 5-6 interlock, and 7-8 interlock. Enter 10 above and 5 below, indicating channel 1.2.3.4.5 interlock and 6.7.8.9.10 interlock. Enter 0 above and 0 below, indicating no interlock. [Jog settings] Enter 1 for the channel number, and the current jog time of channel 1 will be displayed below. The jog time can be changed, such as 500 milliseconds. Enter channel number 2, and the current jog time of channel 2 will be displayed below. The jog time can be changed, such as 500 milliseconds. Entering 0 for the jog time means that this channel does not jog. You can set other channels by analogy. Description: Jog time range: 1-999999999 milliseconds [Switch exclusive setting] (or called switching setting, valid for products with switching function) Enter 1 for the channel number, and the current setting value of the channel will be displayed below. Enter 1 below, which means that this channel cannot be controlled on the mobile phone and can only be viewed. At this time, products with switching functions are turned on and off by the switching input; Enter 2 below, which means that the switch input high level triggers the flip. Enter 3 below, which means that the low level of the switch input triggers the flip (only valid for products that support low level) [Power-on settings] Enter 1 for the channel number, and the value of the current channel will be displayed below. Enter 1 below to indicate that this channel will be automatically opened after power-on. Enter 2 below to indicate that this channel will be closed after power-on. Enter 3 below to indicate that the switch state before power-off is maintained after power-on. Enter 4 below, which means it is forced to open after power on, and the mobile phone will never be able to operate this channel. [Delayed opening] "Some products are not supported, and the required requirements will be added before shooting" Enter 1 above, and the current setting value of channel 1 will be displayed below. Enter 3000 below, which means that this channel will not be opened when you click to open it, but will automatically open after 3000 milliseconds. [Delayed closing] "Some products are not supported, and the required ones are required before shooting) Enter 1 above, and the current setting value of channel 1 will be displayed below. Enter 3000 below, which means that this channel will not be closed when you click Close, but will automatically close after 3000 milliseconds. [Learning Radio Controller] "Optional" After powering off and on again, wait for 5 seconds, press 5 times quickly to set (press faster), the indicator light of channel 1 will keep moving. At this time, press and hold 1 button of the remote control. When channel 2 flashes, press and hold another button on the remote control until channel 3 flashes, and so on until all buttons are pressed, and finally power off and on again; [Reset] Press and hold the setting button for more than 10 seconds until the indicator light flashes quickly and release your hand. At this time, the phone needs to be re-added and all configurations restored to factory settings.
