* 10 amp charge controller
* Battery clamps
* Quick connectors
* Ring terminal connectors
* Solar plug adapter
* 12′ of UV 12/2 cable
* Heavy-duty, nylon storage case * Inverters
Optional Accessories Sold Separately
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TSolar
-
Model Number:
-
TSolar/SP-60
-
Place of Origin:
-
China
-
Panel Dimensions:
-
650*1010*30mm
-
Product name:
-

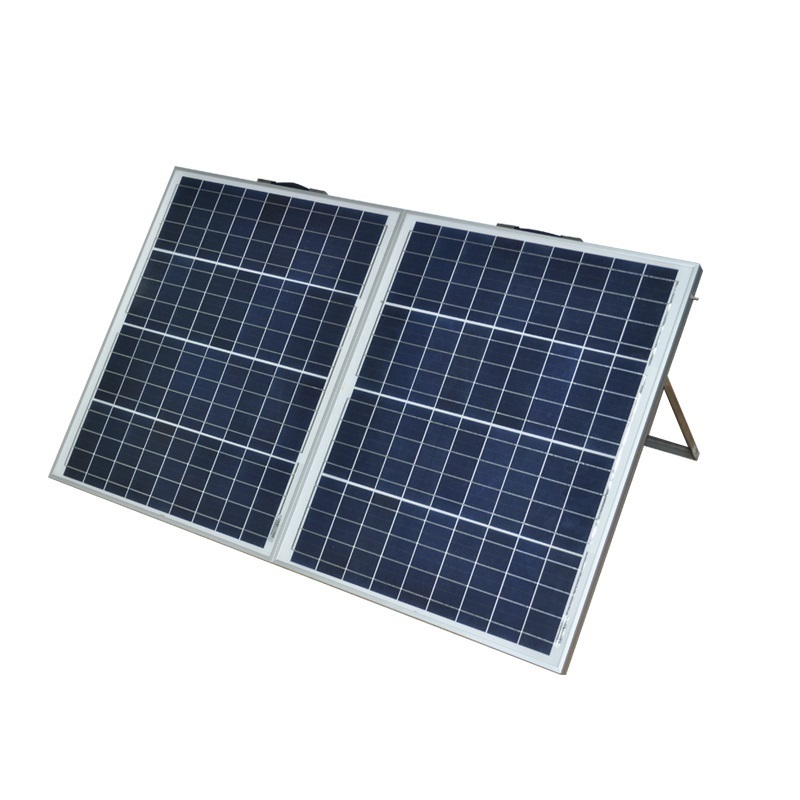

18V Foldable Solar Panel with 10A Charge Controller in Suitcase
-
Solar cell:
-
100W
-
Maximum Power:
-
100W
-
Maximum Power Voltage:
-
18.00V
-
Maximum Power Current:
-
5.56A
-
Application:
-
RV and Camping, Boating, Fishing, Emergency Power
-
Solar controller:
-
PWM/MPPT
-
Frame type:
-
Silver anodized aluminum frame, built-in adjustable folding legs
-
Warranty:
-
25 years (module) / 3 years (controller)
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
Double-glass, IBC
-
Panel Efficiency:
-
98%
-
Brand Name:
-
TSolar
-
Model Number:
-
TSolar/SP-60
-
Place of Origin:
-
China
-
Panel Dimensions:
-
650*1010*30mm
-
Product name:
-
18V Foldable Solar Panel with 10A Charge Controller in Suitcase
-
Solar cell:
-
100W
-
Maximum Power:
-
100W
-
Maximum Power Voltage:
-
18.00V
-
Maximum Power Current:
-
5.56A
-
Application:
-
RV and Camping, Boating, Fishing, Emergency Power
-
Solar controller:
-
PWM/MPPT
-
Frame type:
-
Silver anodized aluminum frame, built-in adjustable folding legs
-
Warranty:
-
25 years (module) / 3 years (controller)
-
Certificate:
-
CE
Product Description
Product Description
Product Advantage
* Negative-ground charge controller for compatibility with your RV, boat, trailer, etc
* Excellent performance in low light conditions, alligator clips can be easily connected.
* Adjustable, corrosion-resistant aluminum bracket with heavy duty handle and latch for extended life.
* The high conversion efficiency 100 watt PV panel can charge 12v / 24v batteries.
* 25 years transferable power output warranty; 5 year material and process warranty. Because it is made of glass, the package will be as careful as possible during transportation, reducing the probability of breakage.
* Excellent performance in low light conditions, alligator clips can be easily connected.
* Adjustable, corrosion-resistant aluminum bracket with heavy duty handle and latch for extended life.
* The high conversion efficiency 100 watt PV panel can charge 12v / 24v batteries.
* 25 years transferable power output warranty; 5 year material and process warranty. Because it is made of glass, the package will be as careful as possible during transportation, reducing the probability of breakage.
|
Maximum Power(Pmax):
|
100W
|
|
Maximum Power Voltage(Vmp)
|
18.00V
|
|
Maximum Power Current (Imp)
|
5.56A
|
|
Open-Circuit Voltage (Voc)
|
22.24V
|
|
Short-Circuit Current (Isc)
|
5.81A
|
|
Dimension when foldable
|
650*500*65mm
|
|
Weight
|
3.9KG
|
|
Controller
|
PWM/MPPT
|
|
Maximum System Voltage
|
1000V
|
|
Nominal Operating Cell Temp.(NOCT
|
45 to 80℃
|
RELIABILITY
This 100 watt panel is made up of monocrystalline solar cells, which give you one of the most efficiency per space.Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as with stand high winds (2400Pa) and snow loads (5400Pa).
EASY INSTALLATION
Off-Grid Rooftop/Ground Mounted. Residential/Rural. Pre-drilled holes on the back of the panel for fast mounting and securing.
RVs, trailers, motorhomes, caravans, boats, etc. 12 volt Battery Charging.
RVs, trailers, motorhomes, caravans, boats, etc. 12 volt Battery Charging.
WATERPROOF
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.
Product packaging
Product packaging
