Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FAYGO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4.2m*1.5m*2.4m
-
Power (kW):
-
11.5
-
Weight:
-
4000 KG
-
Name:
-
PVC window and door profile production line
-
Raw material:
-
PVC
-
Usage:
-
Process PVC power directly
-
Keywords:
-
double screw extruder
-
Product:
-
PVC window and door
-
Product Type:
-
SJZ65/132
-
Capacity:
-
180-250
-
Feature:
-
Better plasticzation,Stable working,High capacity
-
Speed:
-
600
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132, 65:132
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FAYGO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4.2m*1.5m*2.4m
-
Power (kW):
-
11.5
-
Weight:
-
4000 KG
-
Name:
-
PVC window and door profile production line
-
Raw material:
-
PVC
-
Usage:
-
Process PVC power directly
-
Keywords:
-
double screw extruder
-
Product:
-
PVC window and door
-
Product Type:
-
SJZ65/132
-
Capacity:
-
180-250
-
Feature:
-
Better plasticzation,Stable working,High capacity
-
Speed:
-
600
Product Overview
PVC Profile And Foamed Extrusion Line
2.PVC profiles are widely used in the building industry, home and office decoration.
3.This line has features of stable plasticization, high output, long life service.
4.This line consists of control system, conical twin screw extruder, extrusion die, calibration unit, haul-off unit, cutter, laminating machine and stacker.
PRODUCT SPECIFICATIONS
SJZ65/132 Conical Double-Screw Extruder
|
Screw, Barrel
|
Screw and Barrel Material 38CrMoAlA,Nitriding,
Surface Chrome plate, Nitriding Layer Thickness:0.5～0.7mm, Surface Rigidity:800～900HV |
|
Screw Diameter
|
Φ65/132mm
|
|
Effectual Working Length of Screw
|
1430mm
|
|
Speed of Screw
|
1~35rpm
|
|
Reducer Gearbox
|
DUOLING Brand Decelerated and Distributed Gearbox made
By JiangYin Gearbox Manufacture Co.,Ltd. |
|
Main Motor Power
|
37KW Siemens Motor
|
|
Main Motor Timing Method
|
Adopt 37KW ABB AC Inverter
|
|
Force Feeder Motor Power
|
1.1KW
|
|
Force Feeder Motor Timing
|
Adopt 1.1KW ABB AC Inverter
|
|
Barrel Heating system
|
Foundry Aluminum Heater
Total heating power 20.7kw, total 4 heating zones. Zone 1#: 7.5kw Zone 2#: 3.5kw Zone 3#: 5.5kw Zone 4#: 4.2kw |
|
Barrel cooling system
|
force cooling fan,
fan adopt Suzhou SOK 240W fan |
|
Capacity
|
180～250kg/h
|
|

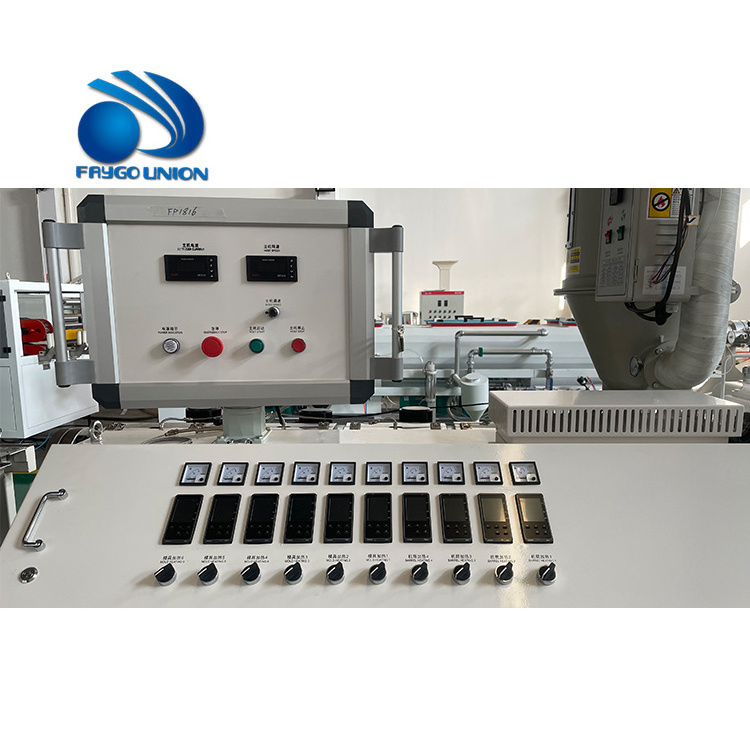

Main Electrical Equipment
|
Japanese OMRON Temperature Control Meter,
Siemens Contactor, |
|
Vacuum exhaust system
|
Adopt 2.2KW water loop vacuum pump, contain pressure box
|
|
Calibration Table Length
|
6 Meter
|
|
Calibration Table Width
|
1000mm
|
|
Vacuum Pump
|
5.5KW×3pcs
|
|
Water Pump
|
4KW*1pc,2.2KW*1PC
|
|
Vacuum & Water Tie-in
|
Vacuum Tie-in＝20pcs,Water Tie-in＝20pcs
|
|
Vortex Gas Pump Power
|
1.1KW
|
|
Mould Install Rail
|
Adopt High Quality Aluminum Profile
|
|
Mould Rail Center Distance
|
320mm
|
|
Distance of from rail to floor
|
900±40mm
|
|
Table fore-and-aft Move
|
Adopt 1.5KW Gearbox Speed Reducer Motor,
Adjusting Distance equal to 800mm |
|
Table Adjustment
|
Up-and-down adopt worm reducer & screw adjust
Right-and-left adopt screw adjust |
QYQG240 Haul-offs and cutting machine
|
Haul-off Bracket Length
|
2700mm
|
|
Rubber Block Width
|
240mm
|
|
Haul-off Motor Power
|
1.5KW×2PCS
|
|
Haul-off Speed Adjusting
|
Adopt 3.7KW Japanese ABB AC Inverter
|
|
Haul-off Speed
|
0.3～6 meter/min
|
|
Above Haul-off Bracket Compaction Mode
|
Adopt pneumatic gas cylinder
|
|
Maximum Cut Profile Size
|
240×100mm
|
|
Saw Diameter
|
Φ400mm
|
|
Cut Motor Power
|
2.2KW
|
|
Bracket Lengthways Move Distance
|
600mm
|
|
Sawdust Absorb Vortex Fan
|
0.75KW
|
Mechanical Numerical Control Processing
Mold
Application
