Quick Details
-
Model Number:
-
PG-S0402G
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Gigabit 2SFP 4 Ethernet ports optical fiber Switch
-
Device Type:
-
Switch - 4 Ports - Unmanaged
-
Optical ports:
-
2 SFP
-
Ethernet ports:
-
4 Gigabit RJ45ports
-
PoE Ports:
-
NO
-
Condition:
-
NIB Original
-
Back bandwidth:
-
60G
-
Applications:
-
Telecommunication
-
Dimensions (H x W x D):
-
160mm*110mm*33mm
-
Warranty:
-
2 Years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
PIOGOODS
-
Model Number:
-
PG-S0402G
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Gigabit 2SFP 4 Ethernet ports optical fiber Switch
-
Device Type:
-
Switch - 4 Ports - Unmanaged
-
Optical ports:
-
2 SFP
-
Ethernet ports:
-
4 Gigabit RJ45ports
-
PoE Ports:
-
NO
-
Condition:
-
NIB Original
-
Back bandwidth:
-
60G
-
Applications:
-
Telecommunication
-
Dimensions (H x W x D):
-
160mm*110mm*33mm
-
Warranty:
-
2 Years

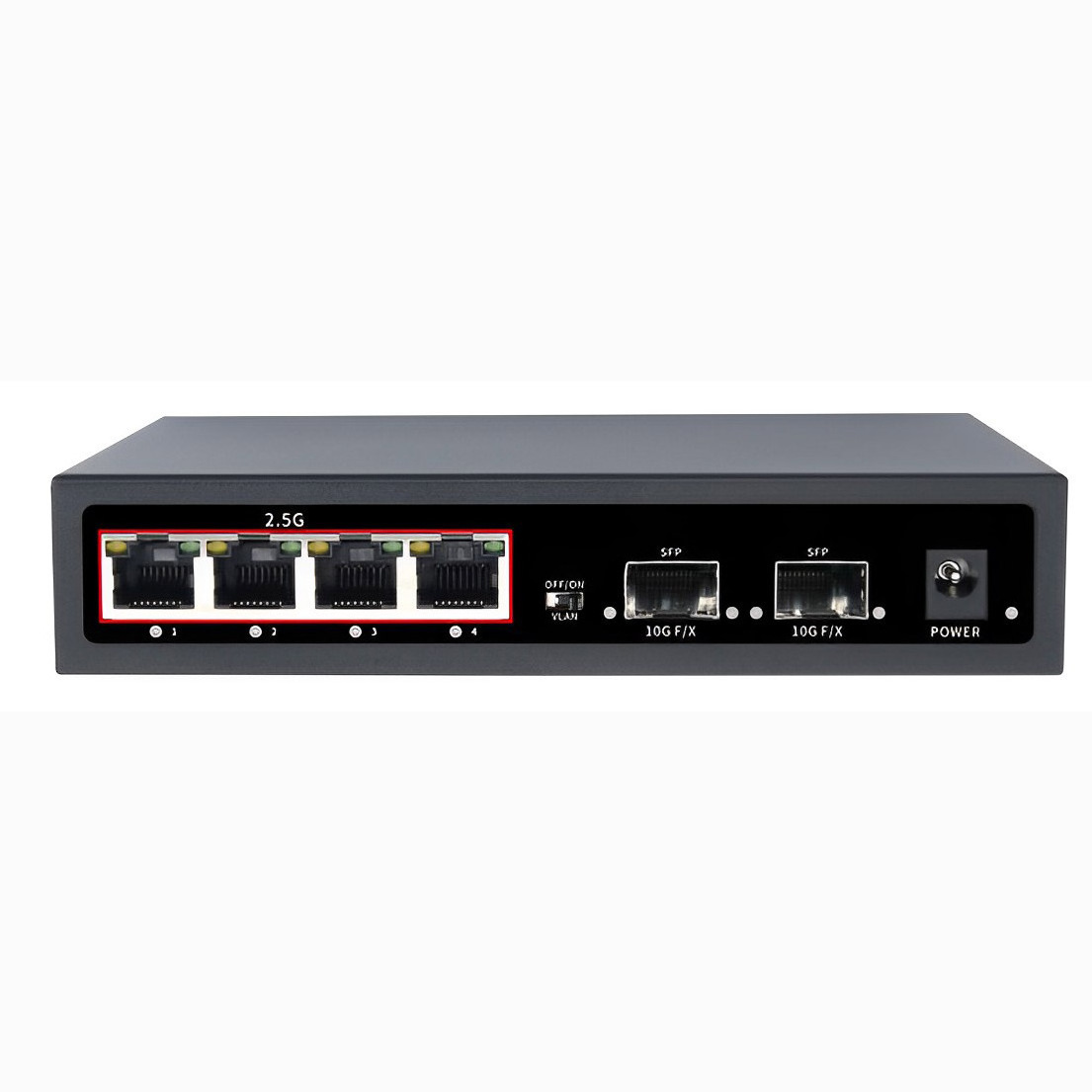

Product Overview
The PG-S0402G unmanaged switches are 2.5G Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 4*2.5Gbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 2.5Gbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.
Features
1.
4*2.5Gbps Ethernet port with auto-negotiation function
2.
2*10Gbps SFP slots
3.
Support 2.5Gbps speed rate,MDI/MDIX
4.
Support IEEE802.3x Flow control and back pressure control
5.
Each port has the complete LED Indicator light
6.
Support IEEE802.1d Spanning Tree
7.
Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed
8.
Support high performance QoS function on each port
9.
Support multicast to avoid network congestion
10.
Support 5-16V voltage input
11.
Support 4K lightning protection of each port
12.
Require no configuration and will instantly operate as soon as you power it up
13.
Use low-power consumption chips
Product Details
|
Standards
|
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX |
IEEE802.3x Flow control
IEEE802.1p QoS IEEE802.1d Spanning Tree |
|
|
Certifications
|
CCC, CE
|
|
|
|
|
Connector: 4*2.5G RJ45 port
|
|
|
|
|
Connector: 2*10G SFP slot
|
|
|
|
|
Data Rate: 2.5Gbps
|
|
|
|
|
Distance: 100m
|
|
|
|
|
UTP Type: UTP-6E or higher level
|
|
|
|
|
Processing Type: Store and Forward
|
|
|
|
|
Transmission Mode: half/full-duplex with auto-negotiation function
|
|
|
|
|
Back bandwidth: 60G
|
|
|
|
|
Time Delay: ＜150μs
|
|
|
|
|
Power type: external power supply
|
|
|
|
|
Input Voltage: AC100V～240V 50/60Hz
|
|
|
|
|
Connector: DC Socket
|
|
|
|
|
Working Voltage: 12V
|
|
|
|
|
Storage Temperature: -40～70℃
|
|
|
|
|
Operating Temperature: -10～55℃
|
|
|
|
|
Relative Humidity: 5-90% ( no condensation)
|
|
|
|
Warranty
|
2 year
|
|
|
|
Physical Characteristics
|
Dimension: 160mm*110mm*33mm
|
|
|
|
|
Color: Metal, Black
|
|
|
