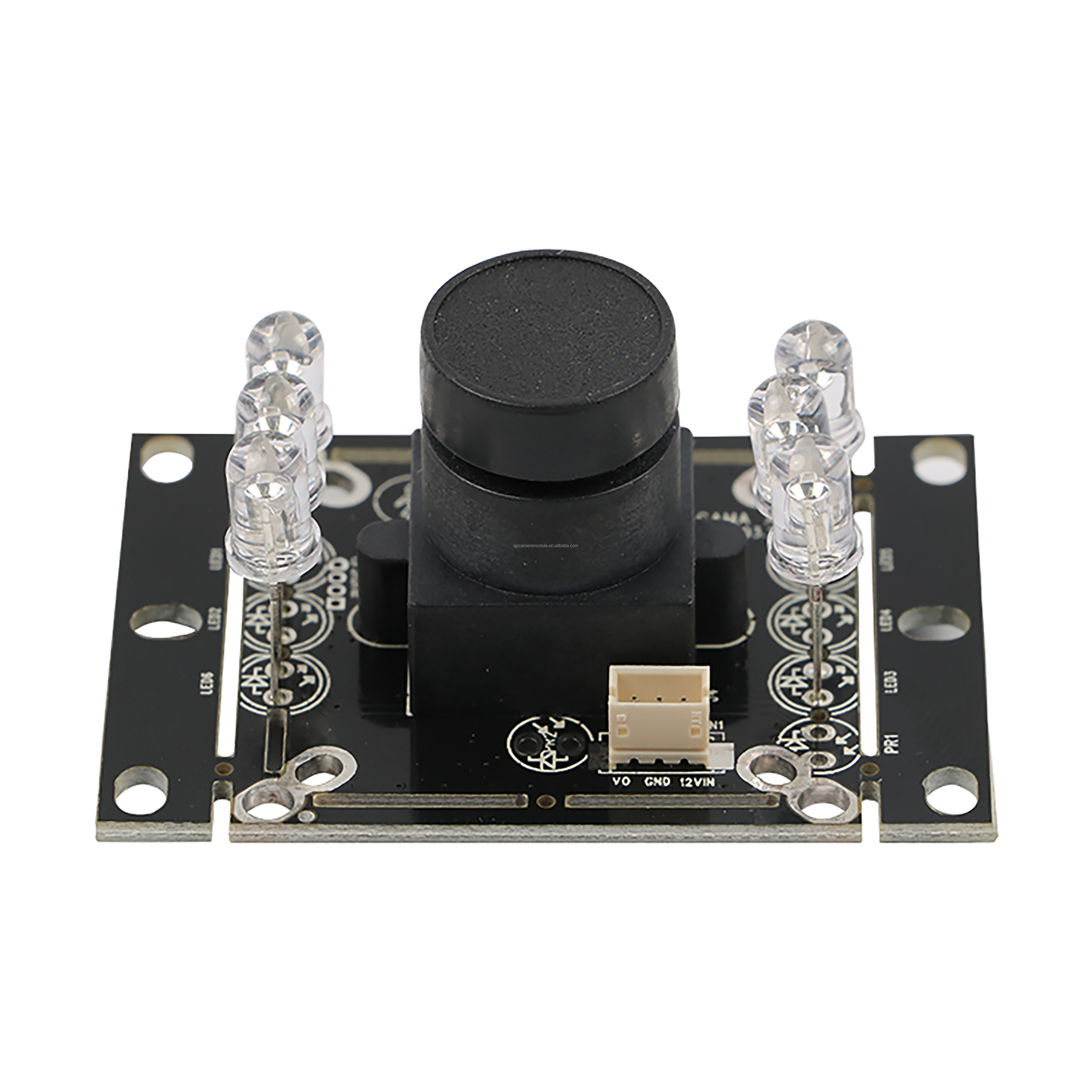

CCTV camera module hidden analog camera module build video doorbell opener intercom system PCB board CMOS TVL PAL camera module

FOB Reference Price: Get Latest Price

≥2 Pieces

US $5.5

≥2000 Pieces

US $4.5

Free Inquiry

Customized Request

Quick Details

Product Description

I tem	Specification
Product model	QP2098
Image sensor	1/3 inch CMOS
Video Format	PAL, CVBS
Effective pixel	720H×576V
Synchronously	Built-in synchronization
Resolution	7000TVL
Pixel size	5.6um*5.6um
S/N radio	48dB
Lamp-house	6 white light
Exposure system	Auto Exposure, Backlight Compensation
Electronic shutter	Auto
White Banlance	Auto
Image Output Forat	Color PAL/CVBS
AGC	Auto
Frame	25FPS (PAL)
Input voltage	DC12V±5%
Power Consumption	Normal:<52mA(LED light off)
Working temp	-20℃ ~ 60 ℃
Storage temp	-35℃ ~75℃
Humidity	5~95% RH
Direction	Front Stand
Dimension	55mm×38 mm
Load level	Peak value 1.0Vp-p
Minimum illumination	0.01LUX/F1.2
Load level	Line synchronizing 326mVp-p
Lens	3.6mm
Height	21mm
