Quick Details
-
Power:
-
3kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
2100*1230
-
Overall Dimensions:
-
2250*1350*1530
-
Weight:
-
1050
-
Certification:
-
CE/ISO
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QIYUN
-
Power:
-
3kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
2100*1230
-
Overall Dimensions:
-
2250*1350*1530
-
Weight:
-
1050
-
Certification:
-
CE/ISO

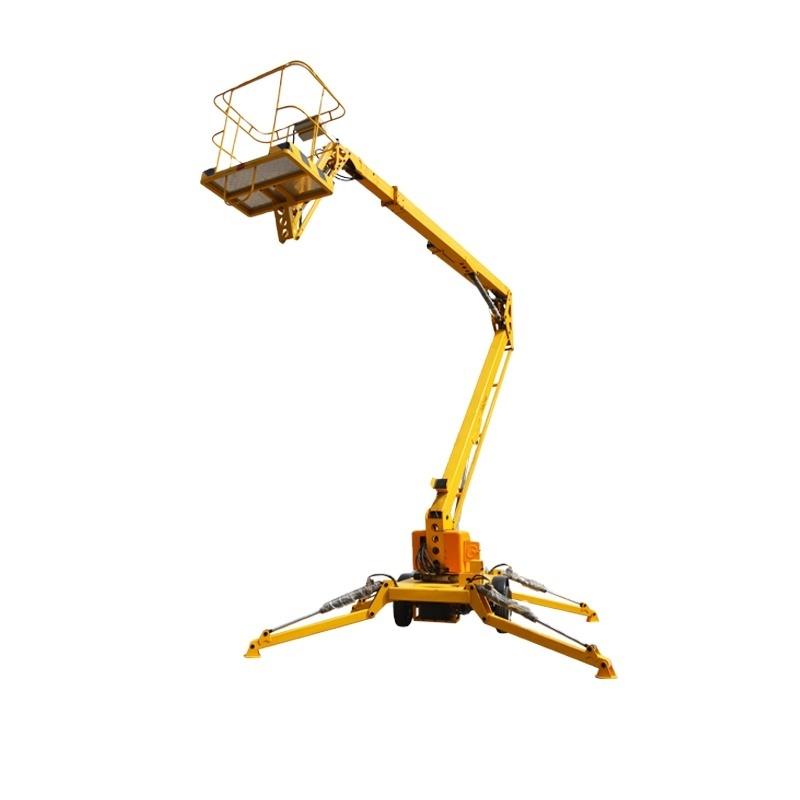

Boom lift
Application
The lift arm series has the advantages of compact structure, using a new type of high-quality steel, high strength, light weight, direct access to AC power to start, set up fast, automatic hydraulic support feet, can quickly set up safe and simple operation. The working table can be raised and the horizontal extension span is large, and the working area is increased; and the platform can be ratated. Easy to cross the obstacles and reach the working position, is the ideal equipment for climbing. The transportation is convenient, direct fast trailer, trailer speed up to 90km/h.
Features
A. Stability structural , carrying capacity, stable lifting, easy maintenance.
B. Adaptability, it can be used in harsh environments and general explosion proof place .
C. Widely applicable, it is suitable for factory shop, square, lobby, airport, park and other high-attitude operations place .
D. High s afety, it is equipped with the up-down double control button with low voltage and one-touch emergency stop and lowering devic e , to improve the safety of equipment.
(Contact us for more model)
|
Model |
Table size mm |
Dimensiones mm |
Height m |
Load kg |
Working radius m |
Weight kg |
|
QYTGZ-8 |
1200*800 |
5200*1585*1900 |
8 |
200 |
4.5 |
1500 |
|
QYTGZ-10 |
1200*800 |
5400*1665*1900 |
10 |
200 |
5.5 |
1700 |
|
QYTGZ-12 |
1200*800 |
6400*1665*1900 |
12 |
200 |
6 |
2000 |
|
QYTGZ-14 |
1200*800 |
6200*1730*2100 |
14 |
200 |
8.5 |
2350 |
|
QYTGZ-16 |
1200*800 |
7000*1730*2200 |
16 |
200 |
9 |
2600 |
|
QYTGZ-18 |
1200×800 |
7100*1850*2260 |
18 |
200 |
10 |
4300 |
|
QYTGZ-20 |
1200×800 |
7700*1850*2260 |
19.8 |
200 |
12 |
4450 |
Instructions
A. P rovide good support for the four legs of platform before using.
B. Power-on, operat e the elevator button on the electric control box to make the platform up and down
C. Operat e the up button to raise the lift platform. (the motor rotation is reversed when the platform is not raised, just swap the connection sequence of power cable, the motor can forward.)
D. It has a remote control button on the platform, standing on the platform also can make it up and down.
E. The platform is equipped with an emergency lowering valve, which is used for the emergency lowering op e ration with power failure. The platform can down slowly when loose the drop handle by hand counterclockwise. The platform will stopped declining after tighten clockwise the drop handle.
Packaging Details: plywood case package or according to the buyers requirements
Delivery Detail: within 3-10days after deposit
1. Service concept: Attention to contract, guarantee quality, on-time delivery and keeping promises.
2. Presale service: Provide the detailed technical advice for free, according to the needs of customers, to discuss the most suitable product ordering scheme.
3. Sale service: Provide free service of on-site installation, commissioning and operation for our equipment, provide the free operating guidance for user.
4. After-sale service: Free one-year warranty, 48 hours door-to-door maintenance with cost price in lifetime
5. Quick responses: We have a complete services network, 24-hours hotline, we will help you to solve the problem in the shortest possible time.
