Quick Details
-
Power:
-
18W
-
Voltage:
-
DC10V-32V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Veise
-
Model Number:
-
HDWS-772S261M
-
Wireless reception:
-
Built-in 2.4G wireless receiver
-
Color LCD screen:
-
7-inch IPS screen
-
working frequency:
-
2400~2483.5MHZ
-
Receiving distance:
-
Open ≤200m
-
Resolution:
-
1024(H) X 600(V)dot
-
Color system:
-
PAL/NTSC (AUTO)
-
Camera Resolution:
-
720P
-
Waterproof rating:
-
IP69K
-
Working voltage:
-
DC10-32V
-
Vibration resistance level:
-
5G (conforms to GB-T2423056-2006 standard)
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
120°-170°
-
Function:
-
Waterproof, NIGHT VIEW, Parking Line
-
Power:
-
18W
-
Voltage:
-
DC10V-32V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Veise
-
Model Number:
-
HDWS-772S261M
-
Wireless reception:
-
Built-in 2.4G wireless receiver
-
Color LCD screen:
-
7-inch IPS screen
-
working frequency:
-
2400~2483.5MHZ
-
Receiving distance:
-
Open ≤200m
-
Resolution:
-
1024(H) X 600(V)dot
-
Color system:
-
PAL/NTSC (AUTO)
-
Camera Resolution:
-
720P
-
Waterproof rating:
-
IP69K
-
Working voltage:
-
DC10-32V
-
Vibration resistance level:
-
5G (conforms to GB-T2423056-2006 standard)
Product Description

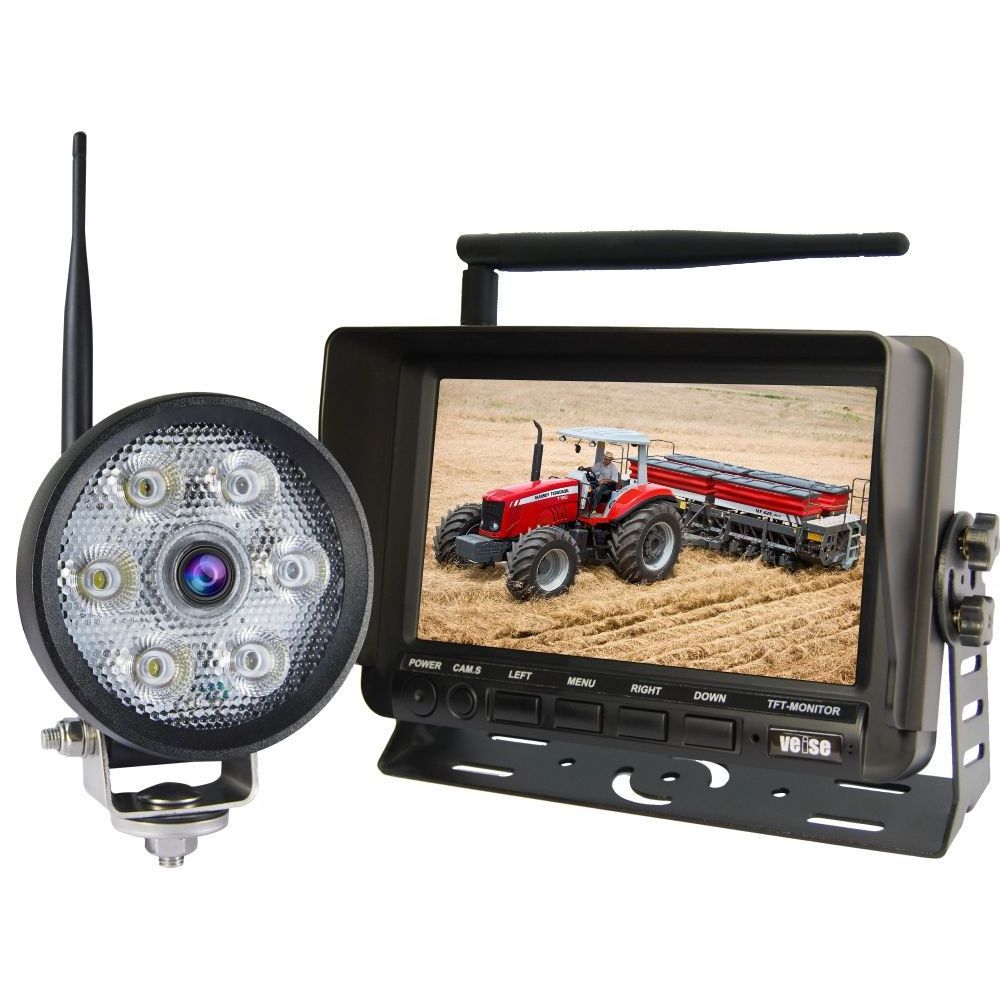

Work Light Wireless Camera System
★The 720P wireless monitor is made of durable and high temperature resistant ABS material.
★7-inch IPS screen wide viewing angle and color vivid, 1024x600(RGB) high definition.
★Graphical OSD menu to set the screen mirroring and front image, reversing ruler, trigger priority application functions.
★Support 4CH single + 2 split + 3 split + Quad image display.
★The operating temperature of automotive industrial grade DSP is -40°C to +85°C.
★Wireless video transmission distance open ≤200m.
★Wireless monitor LED backlight has constant voltage and constant current circuit protection.
★The 720P wireless camera lamp is a solution integrating 720P HD camera and 18W work light, which solves the potential safety hazard of the original equipment vehicle during night operation, which is caused by the lack of infrared light of the monitoring camera.
★720P wireless camera lamp uses an effective pixel 1280 (H) x 960 (V) image sensor.
★IR-CUT filter corrects the color cast during the day and improves the brightness at night.
★18W high brightness LED lamp provides super night vision for the camera.
★Polymethylmethacrylate optical lens enhances the illumination distance.
★Aluminum alloy shell heat dissipation design is resistant to impact and corrosion.
★Fully sealed pressure equalization patented design.
★Nitrogen after vacuum to prevent internal moisture from fogging.
★IP69K waterproof rating to resist high pressure water washdow.
★Built-in external power reverse connection protection and load shedding pulse voltage suppression circuit.
★5G anti vibration level is suitable vehicle road bumps and vibrations.
★Wireless camera system has free voltage input: DC10V-32V.
|
System model
|
HDWS-772S261M
|
|
|
HD Wireless Monitor (MWHD-772S)
|
|
|
|
Color LCD screen
|
7-inch IPS screen
|
|
|
Wireless reception
|
Built-in 2.4G wireless receiver
|
|
|
Picture mode
|
Single screen switching
|
|
|
working frequency
|
2400~2483.5MHZ
|
|
|
Receiving sensitivity
|
≤-86 dB
|
|
|
Receiving distance
|
Open ≤200m
|
|
|
Multi-frequency automatic frequency hopping channel code ion
|
80
|
|
|
Resolution
|
1024(H) X 600(V)dot
|
|
|
Color system
|
PAL/NTSC (AUTO)
|
|
|
Brightness(cd/m2)
|
600
|
|
|
Load dump
|
DC24+174V(Td350mS) 5pulses
|
|
|
Vibration resistance level
|
5G (conforms to GB-T2423056-2006 standard)
|
|
|
Working temperature
|
-20℃ to +70℃
|
|
|
Storage temperature
|
-30℃ to +80℃
|
|
|
Working voltage
|
DC8-32V
|
|
|
Dimensions
|
(L x W x T) (218 x 150 x 54mm)
|
|
|
HD Wireless Camera Work Light (CWHD-261M)
|
|
|
|
Image sensor
|
1/3.7 Color DSP
|
|
|
Wireless transmission
|
Built-in 2.4G digital wireless transmitter
|
|
|
Transmit power
|
18dBm
|
|
|
Launch distance
|
Open area≤200m
|
|
|
Resolution
|
720P
|
|
|
Effective pixels
|
1280(H) X 960(V)
|
|
|
LED power
|
18w(6pcs3w CREE)
|
|
|
Luminous flux
|
＞1150lm
|
|
|
Color temperature
|
6000K
|
|
|
Shell material
|
Die-cast aluminum alloy case + PMMA lens
|
|
|
Temperature control function
|
Built-in thermostat control circuit design
|
|
|
Thermal pressure relief process
|
Stainless steel waterproof breathable valve
|
|
|
Waterproof rating
|
IP69K
|
|
|
Working voltage
|
DC10-32V
|
|
|
Working temperature
|
-20℃ to +60℃
|
|
|
Storage temperature
|
-30℃ to +70℃
|
|
|
Vibration resistance level
|
5G (conforms to GB-T2423056-2006 standard)
|
|
|
Camera Dimensions
|
72(W) x 141.5(H) x 120(D) mm
|
|
Detailed Images
Our Company
R & D
Quality Control
The light intensity analyzer ensures that the output light intensity of LED warning light conforms to ECE R65;
The patented sealed pressure tester to ensure that the waterproof level of the camera and light conforms to IP69K;
