Quick Details
-
Warranty:
-
5years
-
Brand Name:
-
BLUE CARBON
-
Model Number:
-
BCT-550W MONO
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
1909x1134*35
-
Product name:
-
550W Monocrystalline Silicon Solar Panel
-
Solar cell:
-
Mono Half Cell
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Cable:
-
4.0mm2 300mm
-
Keyword:
-
Monocrystalin Solar Panel
-
Maximum system Voltage:
-
1000V
-
Brand:
-
BLUE CARBON
-
Efficiency:
-
21%-24%
-
Certificate:
-
CE, ROHS, IES, IEC, CE, ROHS, ISO, TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
5years
-
Brand Name:
-
BLUE CARBON
-
Model Number:
-
BCT-550W MONO
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
1909x1134*35
-
Product name:
-
550W Monocrystalline Silicon Solar Panel
-
Solar cell:
-
Mono Half Cell
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Cable:
-
4.0mm2 300mm
-
Keyword:
-
Monocrystalin Solar Panel
-
Maximum system Voltage:
-
1000V
-
Brand:
-
BLUE CARBON
-
Efficiency:
-
21%-24%
-
Certificate:
-
CE, ROHS, IES, IEC, CE, ROHS, ISO, TUV
Product Description

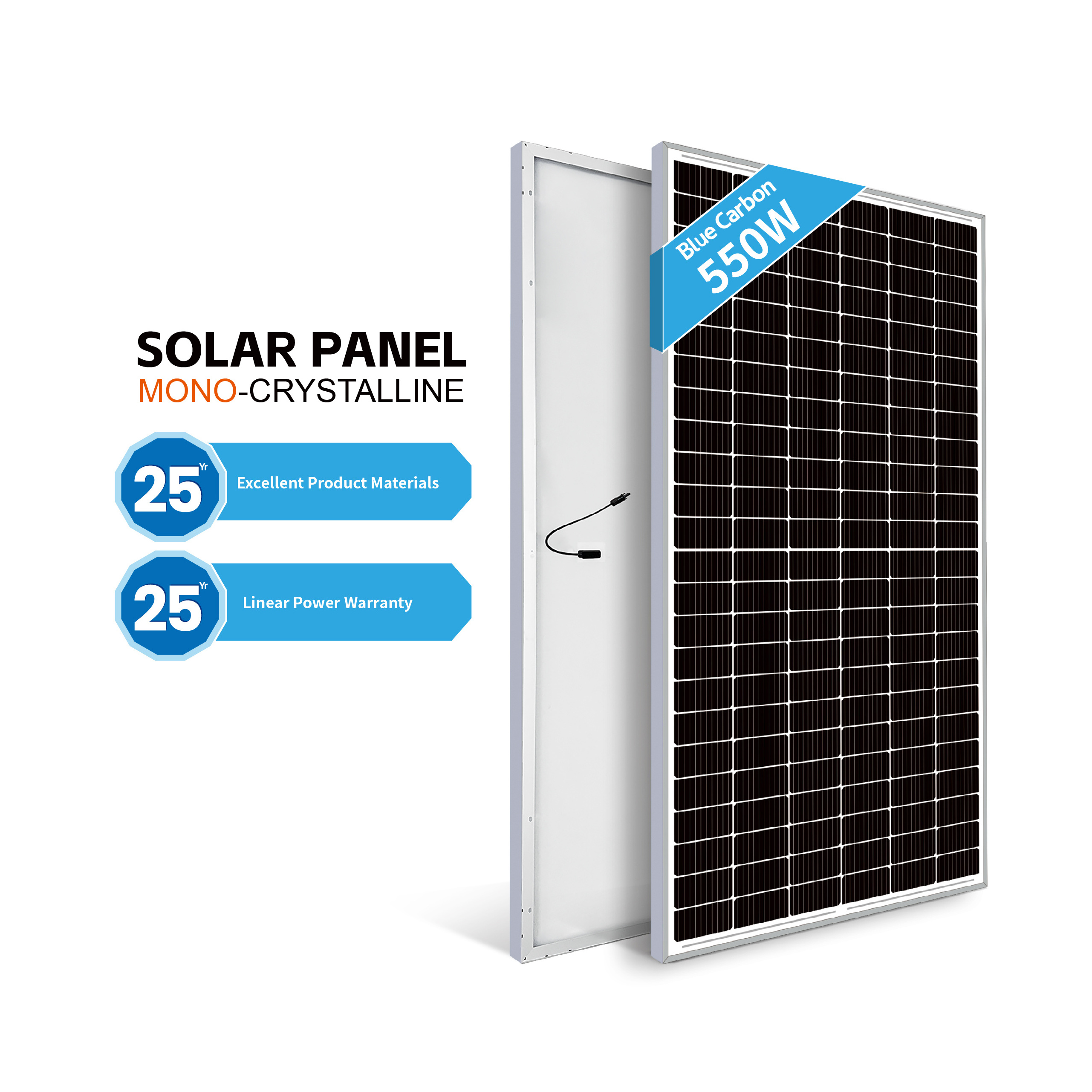

Monocrystalline 550 watt pv power solar panel
|
Cable Cross-Sectional Area
|
4mm2(62930 IEC 131)
|
Maximum System Voltage
|
1500V DC
|
|
Number of Cells
|
144(12X6x2)
|
Component Weight
|
-40°C~+85°C
|
|
Junction Box
|
IP68,3 diodes
|
Maximum Fuse Rated Current
|
25A
|
|
Connector
|
PV-XT1609Nxyz
|
Maximum Static Load, Front'
|
5400Pa(112lb/ft2)
|
|
Cable Length
|
300mm
|
Maximum Static Load, Back
|
2400Pa(50lb/ft2)
|
|
Packaging Information
|
31 pieces/pallet
|
Safety Level
|
Class II
|
