Quick Details
-
Brand Name:
-
Mingrui
-
Model Number:
-
MR-L10-SS-2A
-
material:
-
stainless steel
-
installation:
-
side install
-
used medium:
-
oil, water, liquid
-
switching voltage:
-
100V (DC / AV)
-
operation temperature:
-
-20~120
-
keywords:
-
water tank level sensor
-
switching current:
-
0.5A
-
production place:
-
ningbo
-
company profile:
-
Manufacturer
-
certification:
-
Rohs
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Mingrui
-
Model Number:
-
MR-L10-SS-2A
-
material:
-
stainless steel
-
installation:
-
side install
-
used medium:
-
oil, water, liquid
-
switching voltage:
-
100V (DC / AV)
-
operation temperature:
-
-20~120
-
keywords:
-
water tank level sensor
-
switching current:
-
0.5A
-
production place:
-
ningbo
-
company profile:
-
Manufacturer
-
certification:
-
Rohs

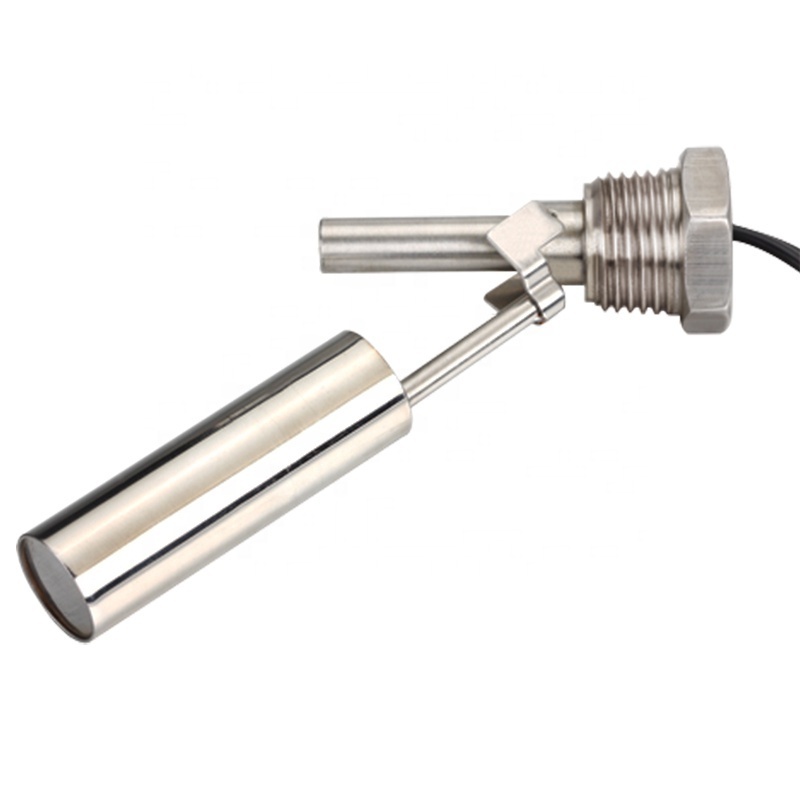

Side Mounted Level Switch
We are a professional source factory,
with good product quality and cheap price
MR-L10-SS
Operating Principle
In a float switch, the magnetic reed switch is hermetically sealed in a stem, most often made from plastic or stainless steel. The float encases a sealed magnet, which moves up and down the length of the stem as a fluid level rises and falls. As the magnet passes by the contacts in the encased reed switch, they touch and complete a circuit between the two lead wires.
Characteristic
Liquid level sensors used imported components and is provided with characteristics such as compact size ,simple working principle, highly reliable and inexpensive.Floating balls with different materials and specifications are available for selection .Electrical parameters can be changed in accordance with client's requirement,and special specification can also be customized.
* No standby power is needed
* Zero power consumption
* Compact Size
* Simple operation principle
* Highly reliable, accuracy and repeatability
Floating balls with different materials and specifications are available for selection, electrical parameters can be changed in accordance with client's requirement and specification can also be customized.
This product can be used in liquid level control for watering machine , water heater , solar energy ,air conditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical industrial ,etc. It will be widely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future .
Ningbo Mingrui Sensor Co., Ltd. is a national high -tech enterprise dedicated to sensor, centralized lubrication, and various controller research and development and manufacturing. The main products include various types of hydraulic sensors, non -contact sensors, close to sensors, car oil/water tank sensors, flow sensors, photoelectric sensors, lubricating oil pump controllers, car chassis lubricating controller, fresh air/air purification controller, etc., etc. Products are widely used in various fields such as home appliances, medical equipment, machinery, electronics, water pumps, water purification treatment, and centralized lubrication systems of automotive chassis, and are customized and developed according to customer needs.
Since its establishment in 2007, the company has obtained 5 invention patents, 3 practical new patents, and 7 software copyrights after the unremitting efforts of the R & D team. Quality management system certification. The corporate purpose of "faith, with sincerity, and winning", adhering to the "technical innovation,The quality policy of customer satisfaction continues to improve quality and services, meet customer requirements and surpass customer expectations.
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
