Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wintai-Tech Tact Switch
-
Model Number:
-
Tactile Switch TS-6060LDD
-
Product name:
-
Tactile Button Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Mechanical Life:
-
200000cycles
-
Operating force:
-
160gf/250gf
-
Certification:
-
Reach, Rohs, ISO9001, TUV, CCC.
Quick Details
-
Protection Level:
-
IP55
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
30VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wintai-Tech Tact Switch
-
Model Number:
-
Tactile Switch TS-6060LDD
-
Product name:
-
Tactile Button Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Mechanical Life:
-
200000cycles
-
Operating force:
-
160gf/250gf
-
Certification:
-
Reach, Rohs, ISO9001, TUV, CCC.

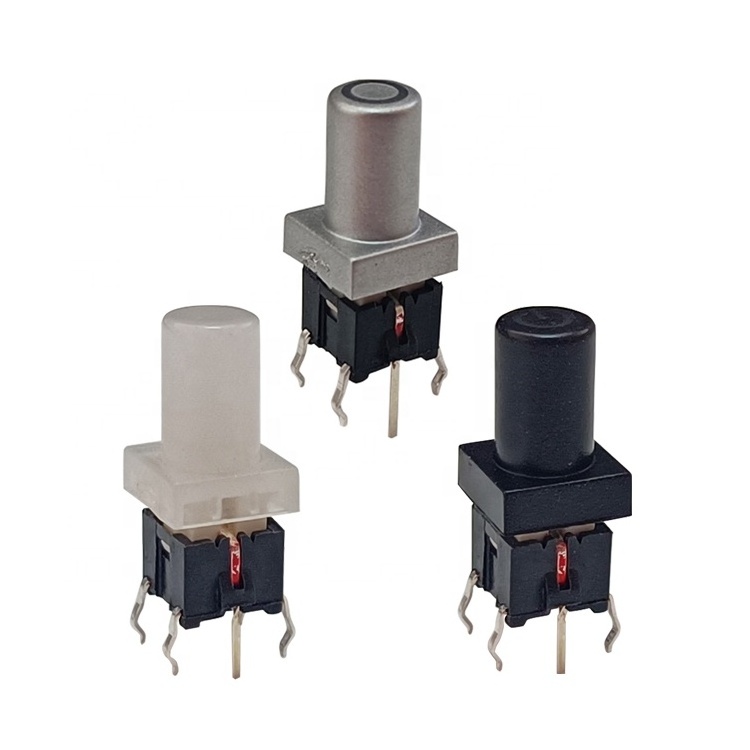

Illuminated Snap In
Tactile Switch
It is a through hole top push illuminated tactile switch, with 6.8mm x7.2mm in size, and black, blue, and RGB led color optional. There are three operating force options, 160gf, 240gf, and 330gf.
The series tact switch has a life cycle of 100,000 to 150,000 actuations depending on the operating force and is electrically rated for 30mA of 20 VDC current.
With its small footprint, low profile, and snap in design, this ultra miniature illuminated tact switch can be used for many small applications,
Wearable technology and so on.
Product Paramenters
|
Product Name
|
Tactile Switch
|
|
Current Rating
|
50mA 30VDC
|
|
Travel
|
0.25±0.05mm
|
|
Operating Force
|
160gf, 250gf
|
|
Contact Resistance
|
100mΩ
|
|
Operating Temperature
|
-25oC ～ +80oC
|
|
Materials
|
Brass/PT66
|
|
Life Time
|
300,000 Cycles
|
Details Images
The circuits characteristics
PCB installation method
Products Description
Product Structure Description
Generally speaking, the universal illuminated light touch switch is composed of 9 parts,
as shown on the right.
A,Cap, t
here are many shapes and colors to choose from. B, Filter, is made of PBT. C, Button, is made of Nylon. D, LED light,
there are three brightness levels and multiple color options.
E, Cover,
is made of PBT.
F, Base,
is made of PBT.
G, Fixed contact,
is made of brass and Ag plated
. H. Contact dome,
is made of brass
. J, Sealed rubber.
