Quick Details
-
Color:
-
White,Grey,Navy,Red,Khaki,Purple,Green,Black etc
-
Size:
-
2950*1340*2000mm
-
Brakes:
-
Hydraulic Disc
-
Motor:
-
48V 5KW Or 72V 5KW
-
Place of origin:
-
Guangzhou,China
-
Recharge Time:
-
8-10h
-
Climbing Ability:
-
45%
-
Battery:
-
8V 150Ah 6PCS or Lithium battery
Quick Details
-
Tire Size:
-
12X7
-
Dimension:
-
2950*1340*2000mm
-
Product Name:
-
4 Wheel Disc Brake Perfect Top Chassis Max 120KM Golf Cart With Bag
-
Color:
-
White,Grey,Navy,Red,Khaki,Purple,Green,Black etc
-
Size:
-
2950*1340*2000mm
-
Brakes:
-
Hydraulic Disc
-
Motor:
-
48V 5KW Or 72V 5KW
-
Place of origin:
-
Guangzhou,China
-
Recharge Time:
-
8-10h
-
Climbing Ability:
-
45%
-
Battery:
-
8V 150Ah 6PCS or Lithium battery

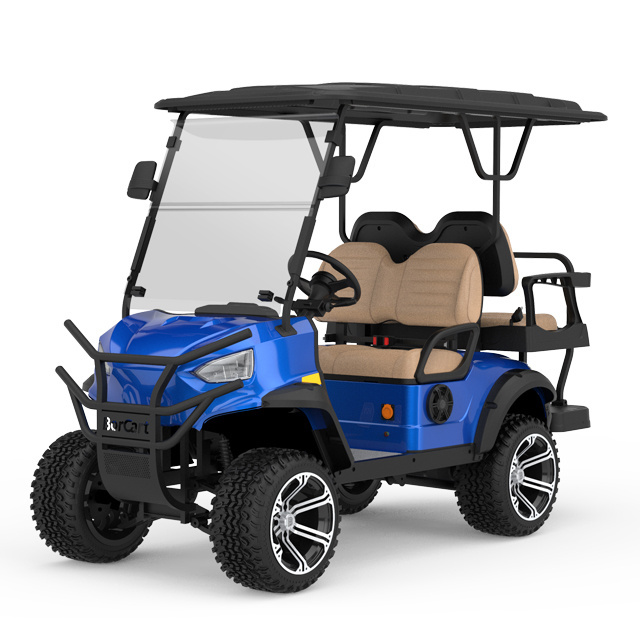

2023 OEM ODM Club Car Waterproof 4 Seater Electric Golf Cart 4 Wheel Disc Brake Perfect Top Chassis Max 120KM Golf Cart With Bag:
This is our ES-L2+2 cheap electric golf carts.
| Dynamic System | Size Overall | |||
|
Motor
:
KDS 48V AC motor
Acid Baterry : 48V-150A Lithium baterry: 48V-100Ah / 48V-134A / 72V-150A selected Charger: Intelligent, 48V/18A , charging time < 8hours (discharging rete 80%) Controller : BORCART48V350A DC: DC-DC 48V/12V-300W |
ES-L2 | ES-L2+2 | ES-L4 | ES-L4+2 |
| 2520*1340*2050mm | 2950*1340*2130mm | 3265*1340*2130mm | 2950*1340*2130mm | |
| Net Weight | ||||
| 550kg | 610 kg | 590kg | 650kg | |
| No.of Passengers | ||||
| 2 Passengers | 4 Passengers | 4 Passengers | 6 Passengers | |
| Wheel Axle Distance | ||||
| 1680mm | 2436mm | |||
| Min Turing Radius ---- 3.2m ,Max Speed --- 25MPH , Climb Performance ---25% , Slope Performance --- 25% ,Battery life --- 80-100mile(Normal road) , Brake distance --- 3.5m | ||||
Function:
1.HASDA IP66 waterproof advanced multimedia combination LCD screen with vehicle status information ;
2.HASDA IP66 Full range hi fi speaker H058
3.First class seats (overall foam seat cushion+solid high-grade imported leather).
4.High strength aluminum alloy oxidation anti-skid floor, corrosion resistance and aging resistance.
Suspension and braking system
:
1.Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.
2.Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar
3.Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking
4.Steering system:two-way rack and pinion steering system,automatic clearance compensation function.
5.Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
These are our Latest mordern Golf Carts for 2 seats,4 seats and 6 seats below:
