Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EVERGREEN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
110000x2300x2300
-
Weight:
-
11000 kg
-
After Warranty Service:
-
Video technical support
-
paper sheeter cutter:
-
roll to sheet cutter
-
Certification:
-
CE
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
350
-
Max. workable width:
-
1400mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EVERGREEN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
110000x2300x2300
-
Weight:
-
11000 kg
-
After Warranty Service:
-
Video technical support
-
paper sheeter cutter:
-
roll to sheet cutter
-
Certification:
-
CE

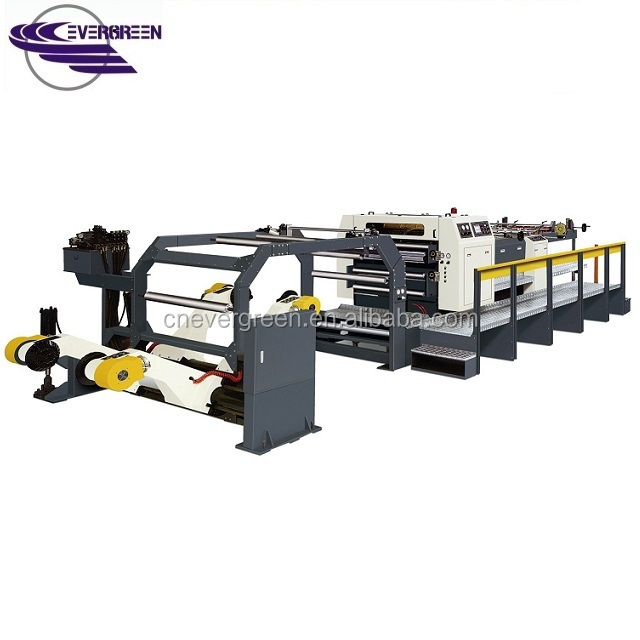

Guillotine Machine CM 1400/1700/1900
High speed roll to sheet paper cutting machine
Servo Precision high speed sheet cutter apply the advanced technique of Germany and England, the machine computer control system apply Servo motor and AC transducer which are both international of Top brand ,the conveyer belt apply NITTA from Japan ,The pneumatic vibrator apply FINDEVA form Switzerland, the electrical system adopts Schneider& Omron. It leads to the speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision, the controller of soft-touch computer screen is simple and convenient by operation, the anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry.
high speed paper sheeter cutter , cardboard rotary cutter , automatic sheeter hydraulic guillotine rotary paper cutter, guillotine electric, automatic paper sheeting machine, programmed paper roll sheet cutter
safety high speed sheet cutter , paper roll cutter, precision paper roll sheeter
|
Model |
CM-1400/1700/1900 |
Model |
CM-1400/1700/1900 |
|
Model of cutting Paper |
The up knife cut reciprocally and down knife is fixed |
Max cutting line speed |
250cuts/min |
|
Thickness of cutting paper |
60-500g |
Cutting length range |
450--1450mm |
|
Cutting precision |
The cutting length 1000mm is 0.5mm |
Paper piling height |
1300mm |
|
Max cutting speed |
250cuts/min |
Max. scroll diameter |
1800mm Max |
|
Gross Weight |
11000Kgs/ 13000Kgs/ 15000kgs |
Max. paper cutting width |
1400mm/ 1700mm/ 1900mm |
|
Power Supply |
380V/ 220V + 10% 50 Hz, 60Hz |
( The format of slitting) |
2 sheets |
|
|
|
|
|
|
|
|
The requirement of air compressor |
0.8 Mpa |
