Quick Details
-
Max. Wheel Weight:
-
NONE
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BATTLE-AXE
-
Model Number:
-
3D-ZD-6
-
Warranty:
-
1 Years
-
Product Name:
-

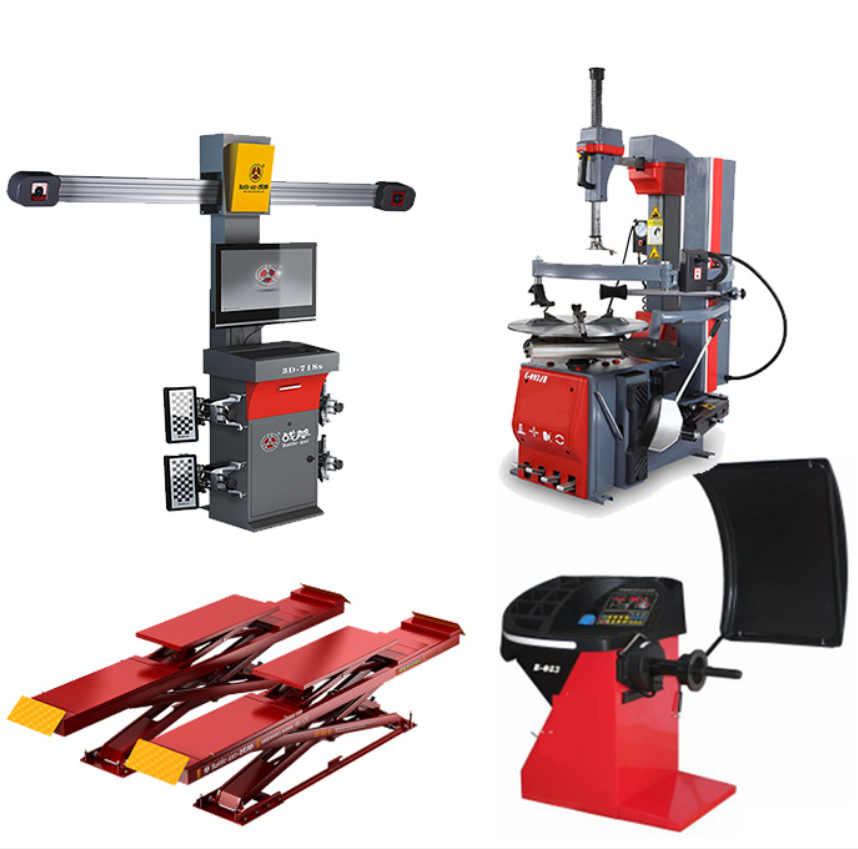

3d wheel aligner, scissor lift , tire changer and wheel balancer combo
-
Color:
-
Customised
-
Certification:
-
CE / ISO9001
-
Language:
-
Global Multi-language
-
carema beam UP A...:
-
Through remote controller
-
software update:
-
freely whole life through online
-
Installation:
-
with video training step by step
-
Sofware:
-
with front alignment function
-
advantage:
-
no need 2nd recalirbrate for whole life
-
camera:
-
2pcs Industrial 5 mega pixel cameras
Quick Details
-
Power:
-
0.5 KW
-
Power Supply:
-
110V/220V
-
Balancing Speed:
-
NONE
-
Max. Wheel Weight:
-
NONE
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BATTLE-AXE
-
Model Number:
-
3D-ZD-6
-
Warranty:
-
1 Years
-
Product Name:
-
3d wheel aligner, scissor lift , tire changer and wheel balancer combo
-
Color:
-
Customised
-
Certification:
-
CE / ISO9001
-
Language:
-
Global Multi-language
-
carema beam UP A...:
-
Through remote controller
-
software update:
-
freely whole life through online
-
Installation:
-
with video training step by step
-
Sofware:
-
with front alignment function
-
advantage:
-
no need 2nd recalirbrate for whole life
-
camera:
-
2pcs Industrial 5 mega pixel cameras
Product Description
Features
|
Adjust camera beam up and down through remote controller, Camera beam Length:2782mm
|
|
Column lift height: 1450-2110
|
|
32''TV &19''LCD show Measuring data & Parking Turntable Function
|
|
with static measuring,Turn Wheels & Static Alignment measuring function
|
|
2pcs 5 Mega pixel camera
|
|
One interface show all parameters of front wheel and rear wheel(Toe,Camber,castor etc)
|
|
with Track width and Wheelbase measuring interface also
|
|
Calibration data Saved inside of Camera instead of Software
|
|
No need to Re-calibartion even Exchange Camera Inside Processor
|
|
With Parking Camera Function
|
Product Parameters
|
Parameters
|
Precision
|
Resolution
|
Measure Range
|
|
SAI/KPI
|
±3′(±0.05º)
|
0.6′(0.01º)
|
±20º
|
|
CASTOR
|
±3′(±0.05º)
|
0.6′(0.01º)
|
±20º
|
|
CAMBER
|
±2′(±0.03º)
|
0.6′(0.01º)
|
±10º
|
|
TOE
|
±2′(±0.03º)
|
0.6′(0.01º)
|
±10º
|
|
THRUST ANGLE
|
±2′(±0.03º)
|
0.6′(0.01º)
|
±10º
|
|
TRACK WIDTH
|
±2mm
|
0.1mm
|
1200-2200mm
|
|
WHEELBASE
|
±2mm
|
0.1mm
|
1600-4200mm
|
|
WHEEL OFFSET
|
±2mm
|
0.1mm
|
±200mm
|
|
LATERAL DEVIATION
|
±2mm
|
0.1mm
|
±200mm
|
|
CASTOR OFFSET
|
±2mm
|
0.1mm
|
±200mm
|
|
RIM SIZE
|
12''-24
|
//
|
//
|
