- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Head-Power
-
After-sales Service Provided:
-
Overseas service center available, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Color:
-
White/Customize
-
Fan style:
-
Direct drive
-
Application:
-
Commercial/Office/Hotel/Hospital,etc
-
Material:
-
Metal
-
Certification:
-
Avaiable Specifications, CE
-
Power:
-
3N-380V-50Hz
-
Cooling capacity:
-
13-68KW
-
Refrigerant:
-
R417A/R407C/R404A//R410A/R134A
Quick Details
-
Type:
-
Air Handling Unit
-
Mounting:
-
Floor Standing
-
Airflow:
-
18000m³/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Head-Power
-
After-sales Service Provided:
-
Overseas service center available, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Color:
-
White/Customize
-
Fan style:
-
Direct drive
-
Application:
-
Commercial/Office/Hotel/Hospital,etc
-
Material:
-
Metal
-
Certification:
-
Avaiable Specifications, CE
-
Power:
-
3N-380V-50Hz
-
Cooling capacity:
-
13-68KW
-
Refrigerant:
-
R417A/R407C/R404A//R410A/R134A

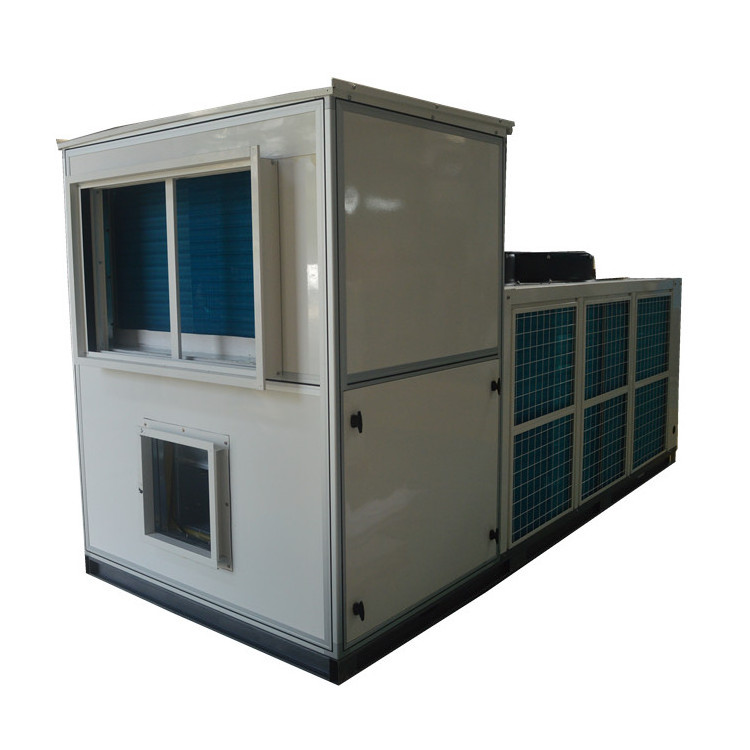

30TON Energy Saving Inverter Rooftop Package Unit Central Air Conditioner
Specifications:
Hermetic scroll compressor
Cooling capacity:13~255kw
Cooling only, electric heating, heat pump type
High static pressure duct type
R22, R407C.
Features:
1) Applied to dry areas;
2) Compact structure, installed on the roof, convenient for installation, occupy no indoor space ;
3) Sufficient external static pressure, suitable for connecting air duct system, reduce indoor noise greatly;
4) Different series of products, meet different requirements;
5) The framework of units is anti-cold bridge aluminum alloy, which eliminates cooling leakage and condensate water due to large temperature difference between inside and outside.
6) The main parts are imported quality products, with excellent performance;
7) The evaporator and condenser adopts technology of enhancing heat transfer, which makes the exchanger high efficiency and save energy
|
Cooling System |
Cooing Capacity |
Medun |
R22/R407C/R410A/R134A |
||||||||
|
DgaansionWay |
Thermal Expansion Valve,Emerson USA |
||||||||||
|
Compressor |
Type |
Hermetic Scroll |
|||||||||
|
norminal power kw |
R22 |
24 |
28.5 |
32 |
38 |
47.5 |
57 |
66.5 |
76 |
||
|
R407C |
24.6 |
29.1 |
32.8 |
38.8 |
48.5 |
58.2 |
68 |
77.6 |
|||
|
Evaporator |
Type |
Copper tubes with aluminum fins |
|||||||||
|
|
Fin Type |
Two-way slotted aluminum fin |
|||||||||
|
condenser |
Type |
Copper tubes with aluminum fins |
|||||||||
|
|
fin type |
Corrugated aluminum fin |
|||||||||
|
Fan System |
condensing fan |
type&drive mode |
Ultra-low-Noise Wide Blade Axial/ Direct Drive |
||||||||
|
Max.outdoor temperature |
45C |
||||||||||
|
power kw |
2.2 |
3 |
3 |
4.4 |
6 |
6 |
9 |
9 |
|||
|
SA Fan |
Type |
Ultra-low-noise double-inlet centrifugal unit |
|||||||||
|
Drive Mode |
Belt Drive |
||||||||||
| humidity heater |
Type |
Fin Condenser/Electrode Type |
|||||||||
