Quick Details
-
Description:
-
float level sensor, water float level sensor
-
Model Number:
-
SS2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
customized
-
Theory:
-
water float level switch
-
Output:
-
Normally closed
-
product name:
-
water level switch
-
Material:
-
PVC
-
Switching type:
-
NC (normally closed)
-
MOQ:
-
500pcs
-
Keywords:
-
water level sensor
-
Color:
-
crystal or white
-
Wires length:
-
300mm
-
Customization:
-
wires length/ housing color
Quick Details
-
Usage:
-
HVAC drain pan condensate overflow detecting, Level Sensor
-
Series:
-
HVAC WATER LEVEL SWITCH
-
Mounting Type:
-
side mounted
-
Description:
-
float level sensor, water float level sensor
-
Model Number:
-
SS2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
customized
-
Theory:
-
water float level switch
-
Output:
-
Normally closed
-
product name:
-
water level switch
-
Material:
-
PVC
-
Switching type:
-
NC (normally closed)
-
MOQ:
-
500pcs
-
Keywords:
-
water level sensor
-
Color:
-
crystal or white
-
Wires length:
-
300mm
-
Customization:
-
wires length/ housing color
Products Description

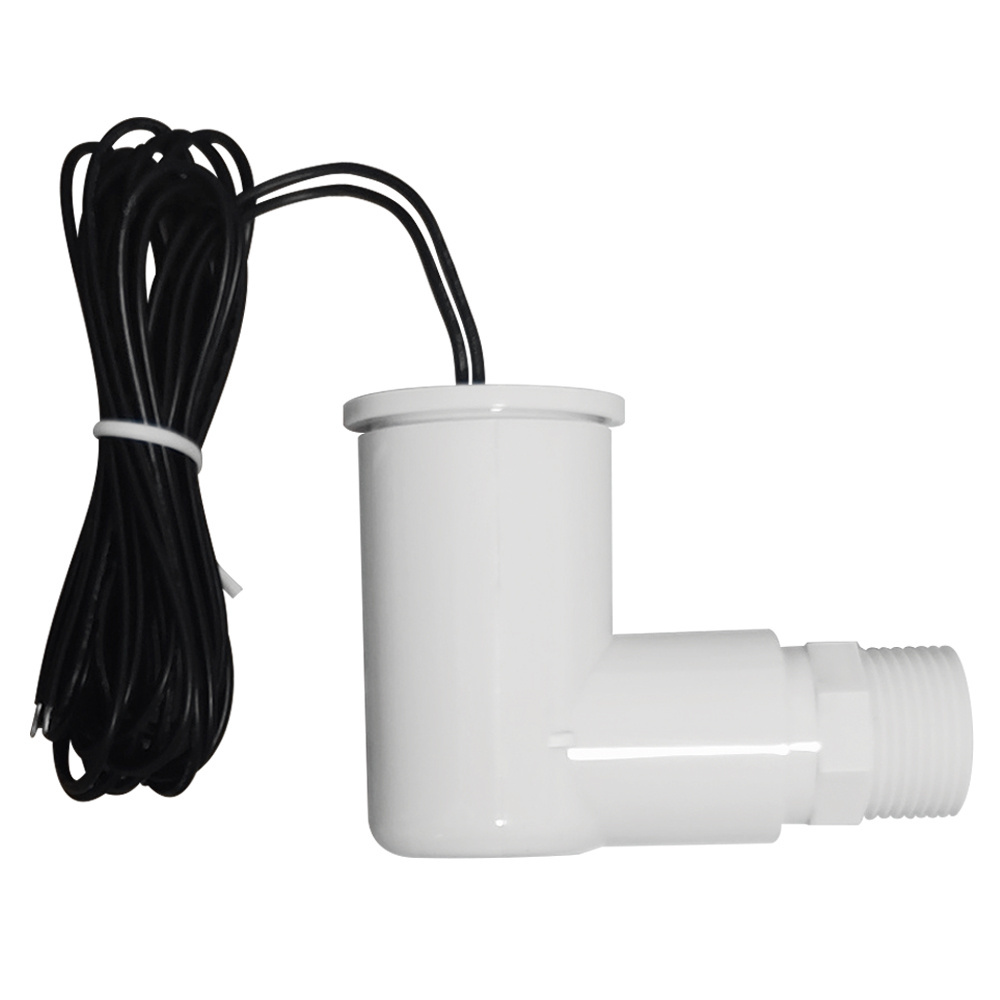

LLS-SS2 water level switch is used for HVAC system to detect the condensate overflow, it detects clogged air conditioning condensate drains and shuts off the system to prevent the overflowing water damage to floors, walls and ceilings. This easy to install with standard 3/4 adaptor, the removable cap is easy for cleaning.
The switch can be connected to either the VCC or thermostat wires, it is NC type(normally closed) switch: When there is no water overflowing, the floater stays on the bottom of the switch, the switch is close loop, and output ON signal;
When there is water overflowing, the floater is raised by buoyancy and trigger the switch to open loop, and output OFF signal to shut-off the device.
|
Model NO.
|
LLS-SS2
|
|
Installation
|
3/4 connector
|
|
Switching type
|
NC (normally closed)
|
|
Material
|
PVC
|
|
Working temperature
|
-20 ~+80℃
|
|
Wire length
|
1.8M (6feet)
|
|
Switching Voltage Max.
|
200VDC
|
|
Switching Current Max.
|
1A
|
|
Contact rating Max.
|
10W
|
Installation Instructions
