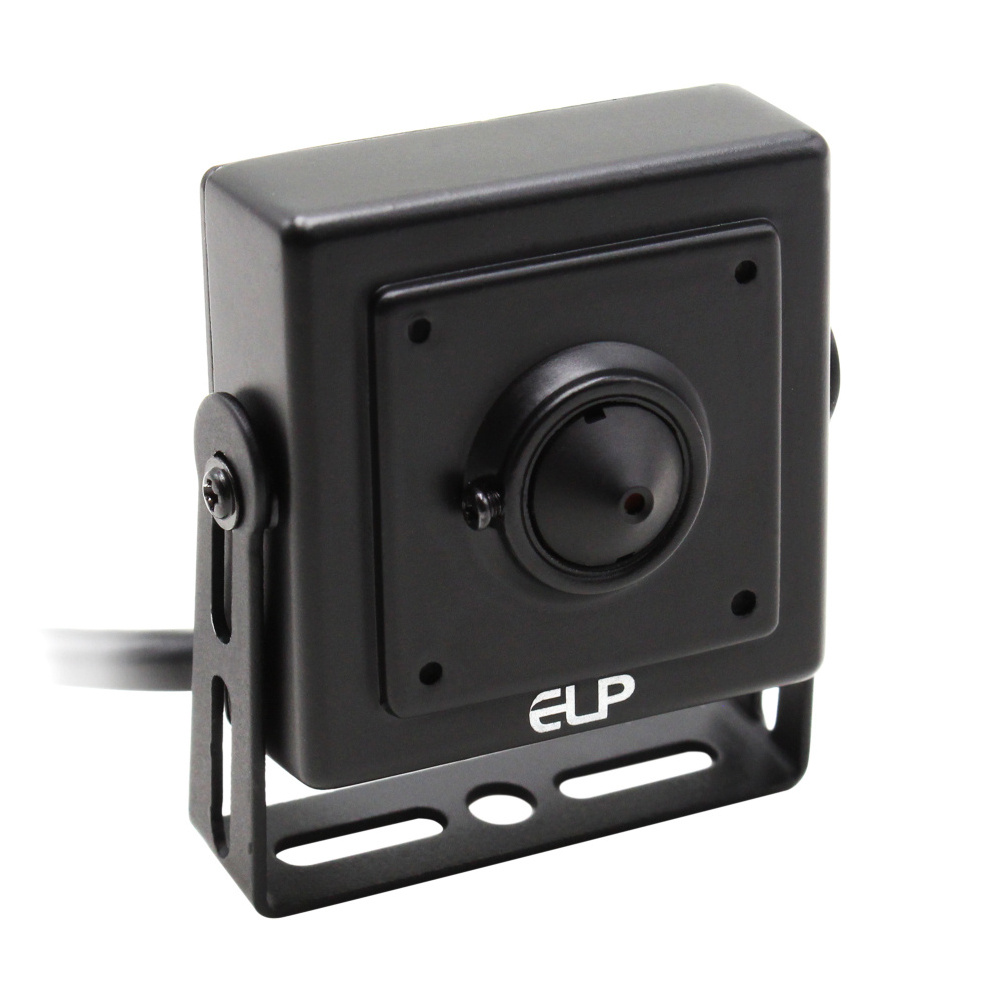

ELP 1 Megapixel UVC free driver 3.7mm mini USB Camera h.264 720P for Linux system.

ELP 1 Megapixel UVC free driver 3.7mm mini USB Camera h.264 720P for Linux system.

FOB Reference Price: Get Latest Price

≥1 Pieces

US $36.96

≥50 Pieces

US $35.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ELP/OEM

Model Number:: ELP-USB100W04H-PL37

Special Features:: mini usb camera

Network:: USB2.0

Resolution:: 1280X720

video compression format:: H.264 Mjpeg YUY

lens:: 3.7mm pinhole lens

OS:: Linux, Windows XP, WIN CE, MAC, SP2 or above.

Sensor:: OV9712

UVC:: Free driver Plug and Play

Parameters:: Adjustable

Cable:: 3 meters (1m, 2m, 5m optional)

OTG:: Support

Quick Details

Function:: H.264 USB Camera

Data Storage Options:: 720P

Place of Origin:: Guangdong, China

Brand Name:: ELP/OEM

Model Number:: ELP-USB100W04H-PL37

Special Features:: mini usb camera

Network:: USB2.0

Resolution:: 1280X720

video compression format:: H.264 Mjpeg YUY

lens:: 3.7mm pinhole lens

OS:: Linux, Windows XP, WIN CE, MAC, SP2 or above.

Sensor:: OV9712

UVC:: Free driver Plug and Play

Parameters:: Adjustable

Cable:: 3 meters (1m, 2m, 5m optional)

OTG:: Support

1 megapixel 720P HD USB Camera OV9712 free driver H.264 mini HD webcam usb for hotel

Features

* CMOS OV9712 sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*Super small outline and thin profile for embedded applications.

*High frame rate– deliver 3 0 fps in 1280*720 resolution

*Low power consumption – ideal for portable equipment.

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

* Free driver

*Support OTG Function

*Support IR CUT for ture color nigh vision

* H.264 video stream
*With microphone

Specifications

Model	ELP-USB100W04H-PL37
Sensor	OV9712
Lens Size	1/4 inch
Pixel Size	3.0um X 3.0um
image area	3888 µm x 2430 µm
Max. Resolution	1280(H)X720(V)
Compression format	H264 /MJPEG / YUV2(YUYV)
Resolution & frame	H264:640X360@ 30fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps YUV:320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 10 fps
S/N Ratio	40dB
Dynamic Range	69dB
Sensitivity	3.7V/lux-sec@550nm
Mini illumination	0. 1lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class(UVC)
Support OTG Protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	3.7mm Lens
Digital audio	High quality digital MIC, support single, dual channel
IR CUT Connector	Support 2P-1.25mm socket
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC5V
Operating Voltage	120mA~180mA
Working current	-10~70°C
Working temperature	-20~85°C
Board size /Weight	Inner Camera Board 38X38mm(Compatible 32X32mm)
Cable	Standard 3M / optional 1M,2M,5M
Operating system request	Win7 Win8,WIN9, WIN10, VISTA, XP..WIN11 etc. Linux 2.6 or above Android 4.0 or above MAC OS
