Quick Details
-
Thickness:
-
0.2 - 0.5 mm
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
23Q110 27Q105 27Q110 27Q120
-
Product Name:
-
Oriented Electrical Steel
-
Application:
-
Transformer Core
-
Material:
-
Grain-Oriented Electrical Steel
-
Material Thickness:
-
0.20-0.50mm
-
Width:
-
Customer's Request
-
Key words:
-
Silicon Steel Ei Lamination Transformer Core
-
Steel shape:
-
Steel Coil CRGO
-
Certificate:
-
ISO9001
-
MOQ:
-
25 MT
Quick Details
-
Type:
-
Oriented Silicon Steel
-
Tolerance:
-
±1%
-
Grade:
-
23ZH90, 35Z155 Please refer to as follow
-
Thickness:
-
0.2 - 0.5 mm
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
23Q110 27Q105 27Q110 27Q120
-
Product Name:
-
Oriented Electrical Steel
-
Application:
-
Transformer Core
-
Material:
-
Grain-Oriented Electrical Steel
-
Material Thickness:
-
0.20-0.50mm
-
Width:
-
Customer's Request
-
Key words:
-
Silicon Steel Ei Lamination Transformer Core
-
Steel shape:
-
Steel Coil CRGO
-
Certificate:
-
ISO9001
-
MOQ:
-
25 MT
Electical
steel, usually referring to
cold rolled
electrical steel, can be divided into two major categories including
grain oriented electrical steel
and non-oriented electrical steel.
Grain oriented electrical steel
, with its easy magnetization direction parallel to the rolling direction, has excellent magnetic properties in this direction including low core loss, high permeability and low magnetostriction and is widely used in the
transformer industry
. Further it can obtain lower core loss
by domain refinement treatment. Meanwhile non-oriented electrical steel, featured by random distribution of grain orientation and magnetic isotropy, is widely applicable to the motor industry.
by domain refinement treatment. Meanwhile non-oriented electrical steel, featured by random distribution of grain orientation and magnetic isotropy, is widely applicable to the motor industry.
Product Description
|
Product Name
|
Electrical Steel, Lamination Steel, Silicon Electrical Steel, Silicon Steel, Relay Steel, Transformer Steel
|
|
|
|
|||
|
Category
|
Grain-Oriented Electrical Steel; Non-oriented electrical steel
|
|
|
|
|||
|
Standard
|
AISI, ASTM, BS, DIN, GB, JIS, EN
|
|
|
|
|||
|
Thickness
|
0.35 - 0.5 mm
|
|
|
|
|||
|
Width
|
900-1230 mm
|
|
|
|
|||
|
Packing
|
Export standard package (as per requirements)
|
|
|
|
|||
|
Payment Terms
|
30% T/T in advance as deposit,70% balance against the B/L copy or 100% irrevocable L/C at sigh
|
|
|
|
|||
Magnetic properties
The magnetic properties of the product is featured by its low core loss, high permeability and excellent application performance.
Thickness tolerance
The good thickness tolerance is characterized by small difference in thickness in a direction parallel to the direction of rolling, small difference in thickness in a direction perpendicular to the direction of rolling, and high lamination factor.
Processing property
The product is suitable for punching and cutting with excellent dimensional
tolerance.
tolerance.
Insulation coating
The insulation coating has small color deviation, good adhesiveness and excellent resistance to heating and corrosion with high insulation coating resistance. There are several types of insulation coating available for production.
According to the test results performed by the professional inspection organizations, the contents of hazardous substances comply with all the prevailing international and domestic environment protection laws and regulations including EU RoHS and REACH regulations.
According to the test results performed by the professional inspection organizations, the contents of hazardous substances comply with all the prevailing international and domestic environment protection laws and regulations including EU RoHS and REACH regulations.
|
Mechanical Property
|
|
|
|
|
||||
|
Grade
|
Yeild Strength (N/mm2)
|
Ultra-Tension Strength (N/mm2)
|
Ductility(%)
|
Hardness (HV1）
|
||||
|
M35W230
|
430
|
560
|
20.0
|
225
|
||||
|
M35W250
|
415
|
20.5550
|
20.5
|
215
|
||||
|
M35W270
|
400
|
515
|
20.5
|
215
|
||||
|
M35W300
|
360
|
480
|
21.5
|
195
|
||||
|
M35W360
|
350
|
480
|
23.5
|
190
|
||||
|
M35W440
|
275
|
420
|
27.5
|
165
|
||||
|
M35W550
|
265
|
415
|
33.5
|
160
|
||||
|
M50W250
|
430
|
560
|
19.0
|
230
|
||||
|
M50W270
|
410
|
550
|
21.5
|
225
|
||||
|
M50W290
|
395
|
545
|
22.5
|
220
|
||||
|
M50W310
|
385
|
510
|
24.5
|
210
|
||||
|
M50W350
|
350
|
475
|
26.5
|
190
|
||||
|
M50W400
|
320
|
460
|
36.0
|
170
|
||||
|
M50W470
|
295
|
425
|
35.0
|
160
|
||||
|
M50W600
|
280
|
410
|
37.0
|
140
|
||||
|
M50W800
|
285
|
405
|
38.5
|
135
|
||||
|
M50W1300(D)
|
250
|
360
|
40.0
|
115
|
||||
Packing & Delivery
About Packing And Delivery

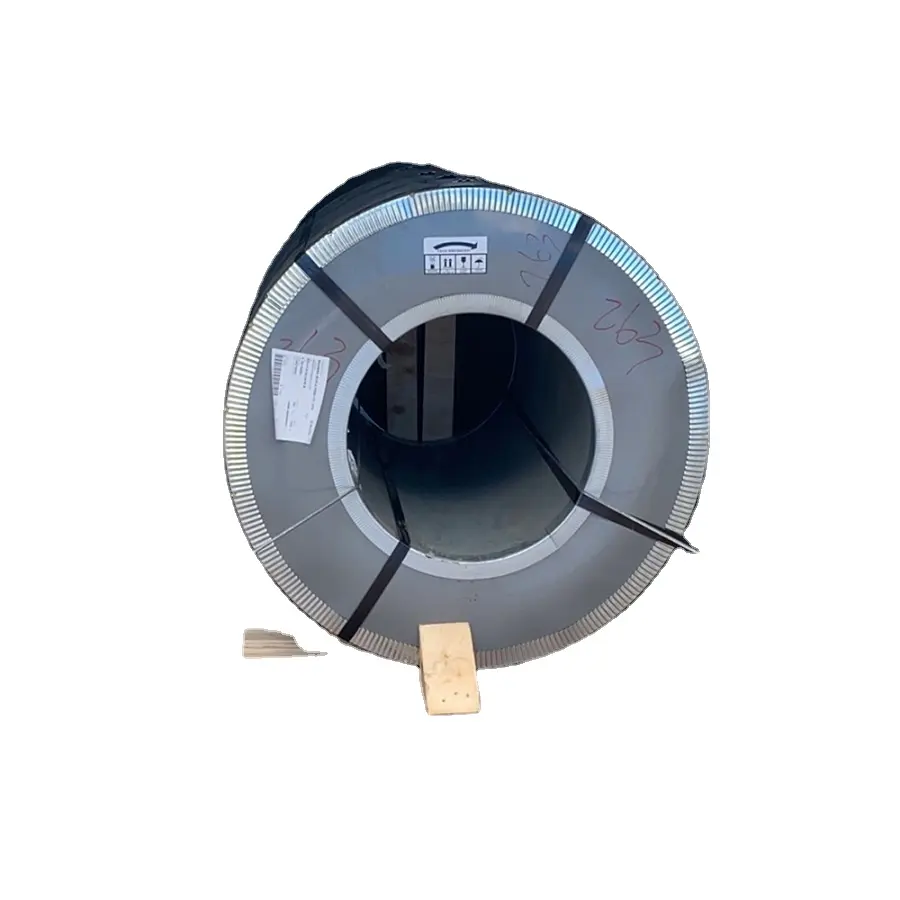

1.Standard Sea Worthy Packing 3 layers of packaging, kraft paper inside, water plastic film in the middle, the outermost GI steel plate tied with steel belt or as required.
2.Shipping port: Tianjin/Shanghai/Qingdao
3.Shipment:
a. Length: ≤6m, loaded in 20GP Container.
b. Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
4.Delivery time: Within 10-25 days, depending on the situation.
2.Shipping port: Tianjin/Shanghai/Qingdao
3.Shipment:
a. Length: ≤6m, loaded in 20GP Container.
b. Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
4.Delivery time: Within 10-25 days, depending on the situation.
