Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CGY
-
Voltage:
-
customer demand
-
Dimension(L*W*H):
-
17M X 2M X1.5M
-
Power (kW):
-
45
-
Weight:
-
20 KG
-
name:
-
Water Proof Plastic Sheet Extrusion Line
-
materail::
-
rubber and plastic
-
width:
-
max10m
-
Screw Design::
-
twin-screw
-
max output::
-
400kg/h
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
1400 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CGY
-
Voltage:
-
customer demand
-
Dimension(L*W*H):
-
17M X 2M X1.5M
-
Power (kW):
-
45
-
Weight:
-
20 KG
-
name:
-
Water Proof Plastic Sheet Extrusion Line
-
materail::
-
rubber and plastic
-
width:
-
max10m
-
Screw Design::
-
twin-screw
-
max output::
-
400kg/h
EVA/ EPE Foam Sheet Extrusion Line plastic mats extruder line
1, Application:
PVC, HDPE, EVB,EVA,TPO
floor sheet
single layer, multi-layers composite, widely used in carriage, traine, airport, hotel, public building, house decoration, etc.
PVC, PP, PE water proof sheet, widely used in tunnel drainage, foundation wetproof, roof leakproof project, etc. Production scope: thickness 1-8mm, width: 6000mm(under)
2, Description :

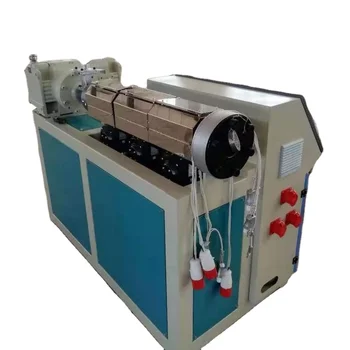

SJZ-80 Conical Twin-Screw Extruder/twin screw plastic extruder
Model SJZ series twin conical screws extruder is a kind of special equipment for extruding of PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.
The screw has applied oil cooling system. Barrel is cooled by special wind cooling system. The system has applied special computer control. According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality. The screw is made by high precision special digital screw miller, extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut. The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure. The electrical system has mainly applied imported parts, it has multiple alarm system, there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be ±1°C.
|
Screw and Barrel |
800~900HV Barrel Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate Nitriding Layer Thickness:0.5~0.7mm Surface Rigidity:800~900HV |
|
Screw Diameter |
Φ80/156mm |
|
Effectual Working Length of Screw |
1800mm |
|
Speed of Screw |
1~37rpm |
|
Main Motor Power |
55KW |
|
Main Motor Timing Method |
55KW ABB inverter |
|
Force Feeder Motor Power |
0.75KW |
|
Force Feeder Motor Timing |
0.75KW ABB inverter |
| Barrel Heating Method | Foundry Aluminum Heater, include force cooling fan, |
|
Barrel Heating Power |
24KW |
|
Capacity |
250~380kg/h |
|
Main Electrical Equipment |
Japanese OMRON Temperature Control Meter,Siemens Contactor,
Shanghai TAYEE Button and Indicator Light, Suzhou ChuangShuan digital display meter |
3, Advantages:
Conical twin screw plastic extruder:
Features Specifications:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
4, Parameters:
All SJZ Series Conical Twin-Screw Extruder Technical Parameter:
|
Model |
SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
|
Max. Rotating speed(rpm) |
40 | 38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
|
Capacity(kg/h) |
80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 |
6*1.6*2.5
|
5, Machines and plant:
6, Our packing and shipment:
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
2. Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. After-sales service:
2 years quality guarantee, Life-long Maintenance
8 , FAQ:
1.Please kindly inform us your requirement: material(PVC, HDPE, EVB,EVA,TPO,etc), width (ID, OD)& thickness and capacity(kg/h), etc.
2.Payment terms: 30% advance by T/T before produce, 70% balance by T/T or L/C before shippment.
3. Installation: Engineer will be send to your country, we will offer all the technical guidance.
4.How to get to our factory: Our factory is about 1.5 hours far away from Qingdao airport.
5.Other requirements about the machine you want, like delivery time, painting, spare parts, etc, pls feel free to contact us.
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
