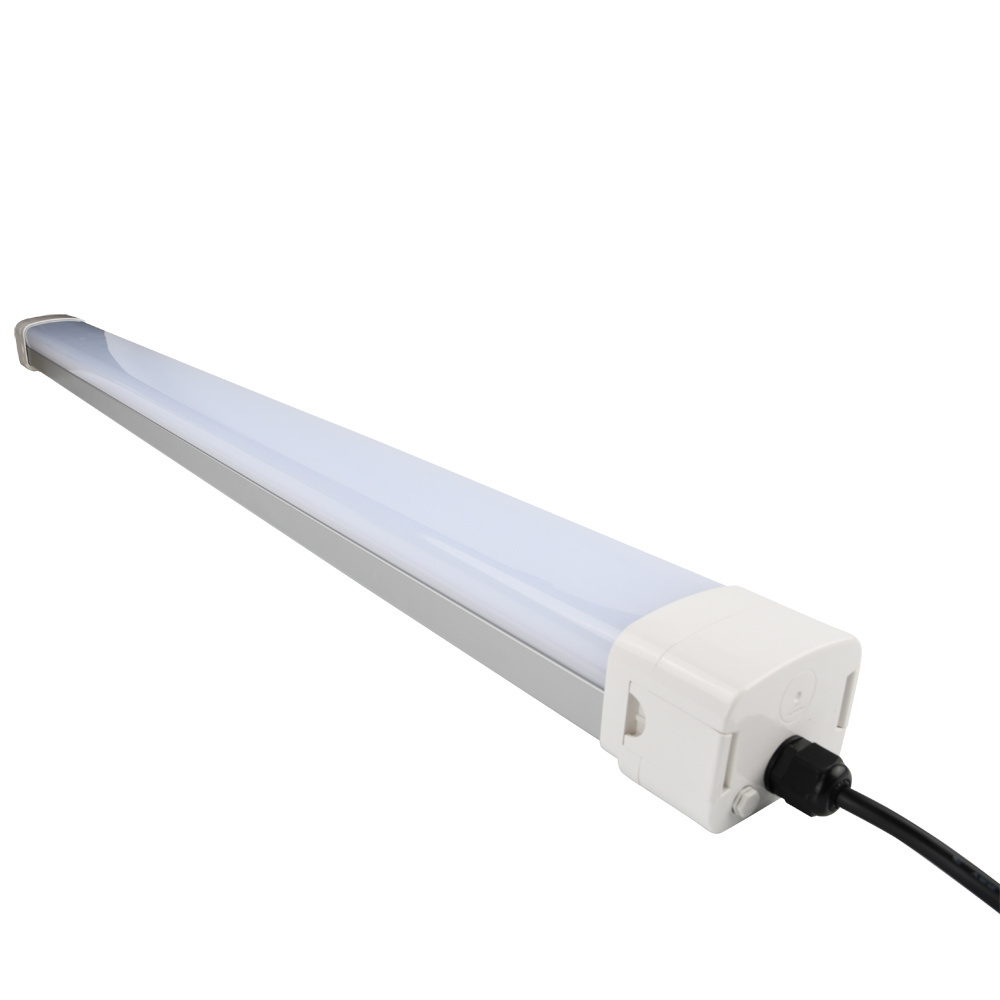

Waterproof Motion Sensor Led Tube Linear Fixture Triproof Industrial Vapor Tight Fixture 60w LED Vapor Light

Waterproof Motion Sensor Led Tube Linear Fixture Triproof Industrial Vapor Tight Fixture 60w LED Vapor Light

FOB Reference Price: Get Latest Price

≥1 Pieces

US $24.81

≥20000 Pieces

US $20.21

Free Inquiry

Customized Request

Explore More Products

Microwave Sensor Radar Motion Detector Intelligent Lamp LED Smart Bulb Light

$ 0.6 - $ 0.9

Indoor Aluminum 5w 10w 15w 20w 30w 40w 50w 60w E27 B22 Warm White Led Light Bulb

$ 0.86 - $ 1.13

Energy Saving Ip67 Light Aluminum Outdoor Waterproof Solar Led Energy Saving Light

$ 10.26 - $ 29.54

Customizable Led Waterproof Rechargeable Intelligent Led Emergency Light Bulb

$ 2.5 - $ 2.64

Product Details

{{item.text}}

Quick Details

Tube Length(ft):: 8, 4ft

Color Rendering Index(Ra):: 85

Input Voltage(V):: AC 100-277V & AC 100-480V

CRI (Ra>):: 85

Working Temperature(℃):: -25 - 55

Working Lifetime(Hour):: 50000

Place of Origin:: Guangdong, China

Brand Name:: SUNPZONE

Model Number:: SPZTP460

Power:: 60W

Lumens:: 9600LM

Sensor:: Microwave/Bi-level/PIR sensor

Dimming:: 0-10V/1-10V/Dali

Color temperature:: 3000-6000k

Features:: Special design for multiple link

Max Linkable Wattage:: 600W

Cover:: Clear, Milk or Striped Cover

Wires Type:: Bare wires

Certification:: ETL

Quick Details

Warranty(Years):: 5

Lamp Luminous Efficiency(lm/w):: 160

Lamp Body Material:: PC+Aluminum

Tube Length(ft):: 8, 4ft

Color Rendering Index(Ra):: 85

Input Voltage(V):: AC 100-277V & AC 100-480V

CRI (Ra>):: 85

Working Temperature(℃):: -25 - 55

Working Lifetime(Hour):: 50000

Place of Origin:: Guangdong, China

Brand Name:: SUNPZONE

Model Number:: SPZTP460

Power:: 60W

Lumens:: 9600LM

Sensor:: Microwave/Bi-level/PIR sensor

Dimming:: 0-10V/1-10V/Dali

Color temperature:: 3000-6000k

Features:: Special design for multiple link

Max Linkable Wattage:: 600W

Cover:: Clear, Milk or Striped Cover

Wires Type:: Bare wires

Certification:: ETL

We invited Alibaba to film our factory. Pls click below, we'll take you visit our factory.

Pls click below different product, you can see the details of different products.

Applications

1. Food Processing 2. Facilities Warehouses

3. Parking Garages 4. Wet Environments

5. Walkway Canopies 6. Harsh Environments

7. Hospitals 8. School

9. Gymnasiums 10. Recreation Centers

Customer feedback

Products Description

* Engraved LOGO is helpful to improve your brand identification

* Over 60% energy saving compared to fluorescent fixtures

* High optical PC cover with 93% transmission. Stainless Steel spec grade clips.

* Life time over to 50,000 hours.

* Multiple mounting option

1.There will be two junction boxes on each end of fixutre and also one waterproof connector and one breath kit.

2. Using tools such as screw driver to open the locker on both sides of junction box and pull out the junction box from the fixture body.

3. Loose the endcap of waterproof connectors and make wires go through the endcap and waterproof connector and junction box.

4. Make connection between the wires and quicker connector, black wire goes to L, green wire goes to G, white goes to N, Purple wire goes to dim+, and Gray wire goes to dim-. Relock the junction box screw the end cap of waterproof connector

* More energy saving: ours 160LM/W 40W=Others' 100LM/W 60W

* Emergency backup battery is available

* Linkable with double ended connectors

* 0-10V dimmable is available. Compatible with DALI Dimmer

* IP65; 100-277V; 347V is available. Waterproof, Dustproof, Moistureproof

* Suitable for wet location

* IP65, IK10 and ETL listed

* Excellent thermal conductivity and heat dissipation

* ETL& Premium DLC 120-160lm/w; 5 years warranty ; UGR less than 20

Model	LED	Watt (W)	Input Voltage	Lumen (Lm)	IP Rate	Size (Inch)
SPZTP230	Epistar	30	100-277V 100-347V	4800	IP65	23.62.363.54
SPZTP440L	Epistar	40	100-277V 100-347V	6400	IP65	47.22.363.54
SPZTP460	Epistar	60	100-277V 100-347V	9600	IP65	*47.22.363.54*
SPZTP690L	Epistar	90	100-277V 100-347V	14400	IP65	70.82.363.54
SPZTP890	Epistar	90	100-277V 100-347V	14400	IP65	94.52.363.54
SPZTP8120	Epistar	120	100-277V 100-347V	19200	IP65	94.52.363.54
