Quick Details
-
Dimension(L*W*H):
-
Machine Size
-
Motor Power (kW):
-
20kw
-
Model Number:
-
AMD-357
-
Weight (T):
-
13
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE ISO
-
Product name:
-
Punching Pressing Machine
-
Function:
-
Punching hole
-
Processing sheet size:
-
2500*1250
-
Max. Punch diameter:
-
88.9mm
-
Punching frequency:
-
600
-
Number of stations in turret:
-
16/24/32
-
Keyword:
-
Hydraulic Punch
-
Name:
-
Cnc Turret Punch Machine
-
Weight (KG):
-
14000
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AMD
-
Voltage:
-
customizable
-
Dimension(L*W*H):
-
Machine Size
-
Motor Power (kW):
-
20kw
-
Model Number:
-
AMD-357
-
Weight (T):
-
13
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE ISO
-
Product name:
-
Punching Pressing Machine
-
Function:
-
Punching hole
-
Processing sheet size:
-
2500*1250
-
Max. Punch diameter:
-
88.9mm
-
Punching frequency:
-
600
-
Number of stations in turret:
-
16/24/32
-
Keyword:
-
Hydraulic Punch
-
Name:
-
Cnc Turret Punch Machine
-
Weight (KG):
-
14000
Products Description

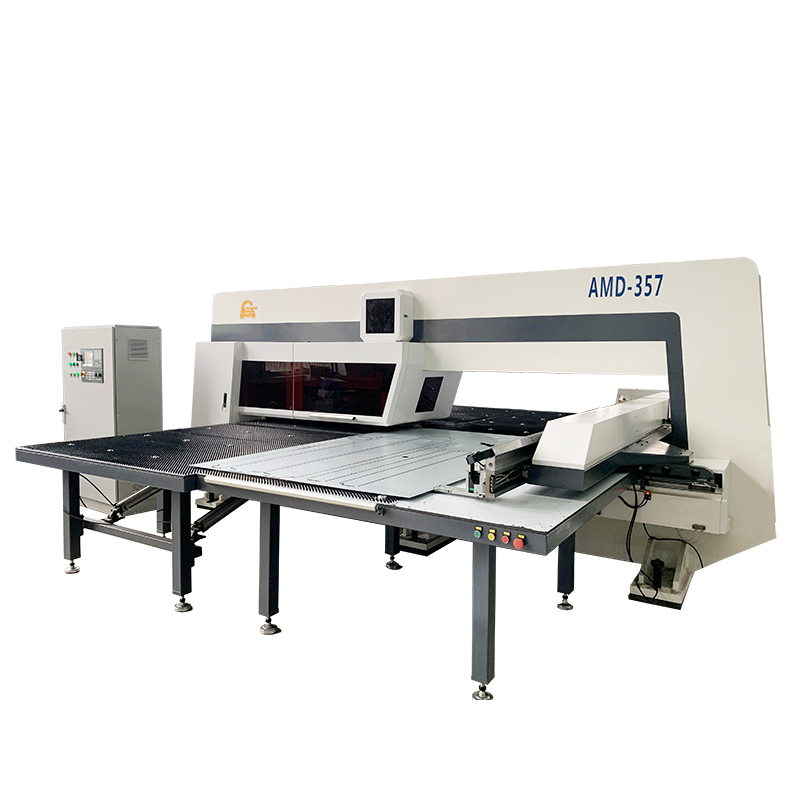

New design Mechanical Type Turret Punch/CNC Punching Machine
Features:Siemens control system, Rexroth linear guide and ball screw, punching speed 270 times per minute, simple operation and easy maintenance.
AMD-357 CNC turret punching machine is mechatronics automation equipment, it's widely used in the instruments and meters, chassis cabinets processing, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate,lamps, kitchen equipment, air conditioners and other sheet metal processing industries.
Product Paramenters
|
Model
|
AMD-357
|
|
Capacity
|
300/500 KN
|
|
Driving Type
|
Mechanical driving
|
|
CNC System
|
Siemens/Fanuc
|
|
Max. Processing sheet (Reposition)
|
1000/1250/1500/1750 mm1500/2500/4000/6000 mm
|
|
QTY of Clamp
|
No.3
|
|
Max. Processing Sheet Thickness
|
6 mm
|
|
Max. Punch Diameter
|
Φ88.9 mm
|
|
Max. Punch Hit at 1mm Pace
|
400 hpm
|
|
Max. Punch Hot at 25mm Pace
|
220 hpm
|
|
QTY of Station
|
No.24/32
|
|
Controlling Axis
|
No.4
|
|
Machine Frame
|
O type
|
|
Max. Feeding Speed
|
60 m/min
|
|
Tooling Rotation Speed
|
30 rpm
|
|
Accuracy
|
±0.1 mm
|
|
Rated Power
|
20 KW
|
|
Air Pressure
|
0.6-0.8 MPa
|
|
Outline Dimension
|
4490*5300*2110 mm
|
Detail Image
Panasonic servo motor controller, ESTUN punch controller, Schneider electrical components
Integral casting Turret, AIRTAC pneumatic components
ESTUN main servo motor
Panasonic servo motor and reducer
Punching Sample
