- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
YJV32
-
Product Name:
-
low voltage armoured cable
-
Conductor:
-
Pure Copper
-
Number of Cores:
-
1,2,3,4,5
-
Insulation:
-
XLPE Insulation
-
Sheath:
-
PVC Shealth
-
Rated voltage:
-
0.6/1kV
-
Cross section:
-
25mm2-630mm2
-
Armour:
-
SWA STA AWA ATA
-
Usage:
-
Power Station, Power Station, Railway, Underground
-
Certificate:
-
CE/CCC
Quick Details
-
Insulation Material:
-
XLPE, PVC
-
Application:
-
Underground, Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
YJV32
-
Product Name:
-
low voltage armoured cable
-
Conductor:
-
Pure Copper
-
Number of Cores:
-
1,2,3,4,5
-
Insulation:
-
XLPE Insulation
-
Sheath:
-
PVC Shealth
-
Rated voltage:
-
0.6/1kV
-
Cross section:
-
25mm2-630mm2
-
Armour:
-
SWA STA AWA ATA
-
Usage:
-
Power Station, Power Station, Railway, Underground
-
Certificate:
-
CE/CCC
Products Description

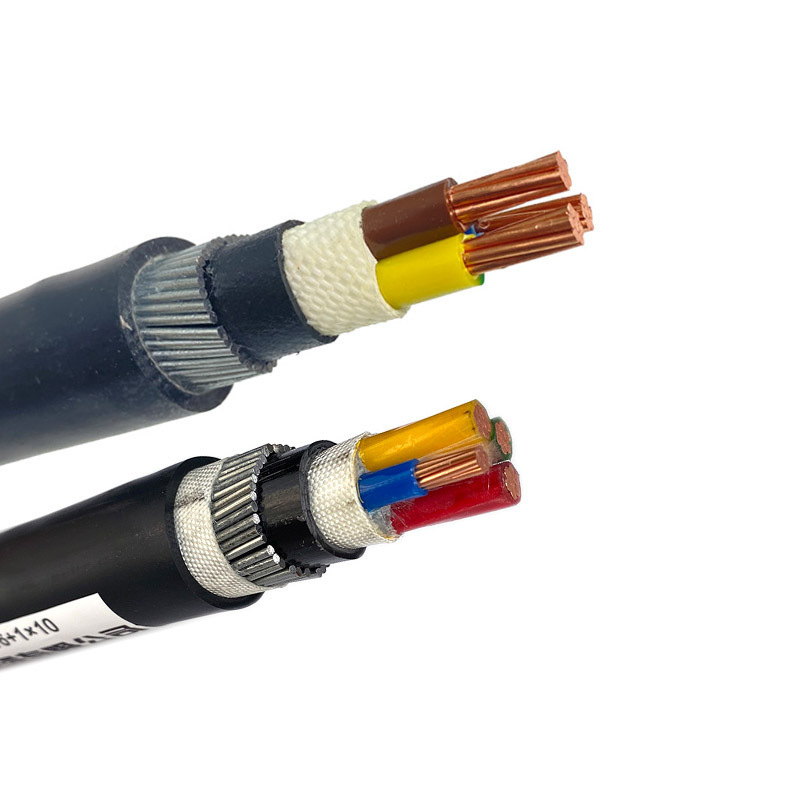

Custom Copper Core PVC Insulation Steel Wire Armoured Power Cable
Conductor:
Aluminum or Copper
Armoured: SWA(Steel Wire Armored) / STA(Steel Tape Armored) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 3
Section Area: 25mm2-630mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement
Armoured: SWA(Steel Wire Armored) / STA(Steel Tape Armored) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 3
Section Area: 25mm2-630mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement
Jiangnan Cable and Wire
More than 37 years knowledge in cables industry, we supply reliable cables world widely including control cables, building wire, electric wire, power cable, control cable, flexible cable, screen cable, armored cable, LSZH cable. We can supply the cables according to the standard of BS, AS/NZS and IEC.
Details Images
Product Paramenters
|
XLPE insulated power cable for Rated Voltage Kv 8.7/10(15)kV
|
|
|
|
|||
|
Naninal cross-sectional area mm2
|
Insulation thickness mm
|
Approx overall diameter mm
|
Calculated weight of cable
|
|||
|
1x25
|
4.5
|
22.1
|
687
|
|||
|
1X35
|
4.5
|
23.2
|
811
|
|||
|
1x50
|
4.5
|
24.4
|
959
|
|||
|
1x70
|
4.5
|
26.2
|
1208
|
|||
|
1x95
|
4.5
|
28.1
|
1506
|
|||
|
1x120
|
4.5
|
29.3
|
1759
|
|||
|
1x150
|
4.5
|
31.1
|
2070
|
|||
|
1x185
|
4.5
|
32.7
|
2443
|
|||
|
1x240
|
4.5
|
35.3
|
3036
|
|||
|
1x300
|
4.5
|
37.8
|
3673
|
|||
|
1x400
|
4.5
|
40.5
|
4523
|
|||
|
1x500
|
4.5
|
44.4
|
5658
|
|||
|
1x630
|
4.5
|
48.3
|
7066
|
|||
|
1x800
|
4.5
|
52.4
|
8804
|
|||
|
1x1000
|
4.5
|
55.9
|
10576
|
|||
|
3x25
|
4.5
|
44.9
|
2425
|
|||
|
3x35
|
4.5
|
47.5
|
2819
|
|||
|
3x50
|
4.5
|
50.3
|
3285
|
|||
|
3x70
|
4.5
|
53.9
|
4090
|
|||
|
3x95
|
4.5
|
57.8
|
5012
|
|||
|
3x120
|
4.5
|
60.6
|
5831
|
|||
|
3x150
|
4.5
|
64.2
|
6820
|
|||
|
3x185
|
4.5
|
67.9
|
8039
|
|||
|
3x240
|
4.5
|
73.5
|
9913
|
|||
|
3x300
|
4.5
|
78.8
|
11983
|
|||
|
3x400
|
4.5
|
84.6
|
14607
|
|||
|
3x500
|
4.5
|
93.0
|
18130
|
|||
|
3x630
|
4.5
|
101.4
|
22571
|
|||
