Quick Details
-
Body Material:
-
Brass
-
Valve Core Material:
-
Brass
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DOUBLE-LIN
-
Model Number:
-
LL2042
-
ITEM:
-
Brass Hose Bibcock
-
SIZE:
-
1/2" * 3/4", 3/4" * 1", 1" * 1 1/4"
-
BRASS MATERIAL:
-
HPB 57-3
-
STEM TYPE:
-
Double O-ring
-
SEAT MATERIAL:
-
PTFE
-
OPENING/CLOSING TEST:
-
10,000 Times
-
WORKING PRESSURE:
-
16 Bar(232 Psi)
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Bathroom
-
Design Style:
-
Modern
-
Body Material:
-
Brass
-
Valve Core Material:
-
Brass
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DOUBLE-LIN
-
Model Number:
-
LL2042
-
ITEM:
-
Brass Hose Bibcock
-
SIZE:
-
1/2" * 3/4", 3/4" * 1", 1" * 1 1/4"
-
BRASS MATERIAL:
-
HPB 57-3
-
STEM TYPE:
-
Double O-ring
-
SEAT MATERIAL:
-
PTFE
-
OPENING/CLOSING TEST:
-
10,000 Times
-
WORKING PRESSURE:
-
16 Bar(232 Psi)
Products Description

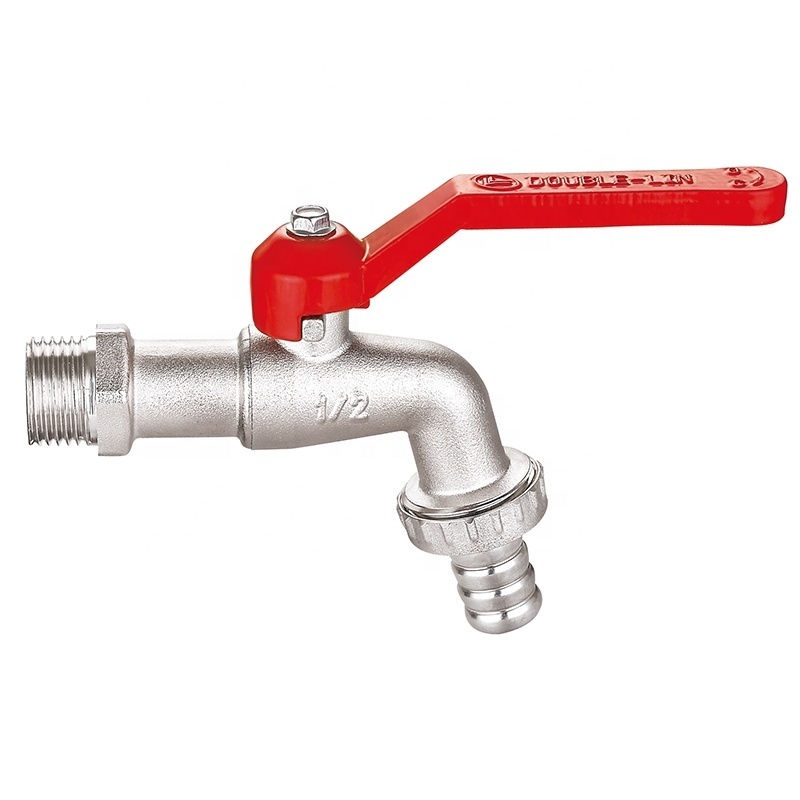

LL2042
Brass Valve Body
: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet : High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball : Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem : Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat : Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Handle : Aluminium handle
O-ring : NBR , made of imported raw material, small friction coefficient, long service life and not easy to leak.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
Water Outlet : Made of stainless steel 304 in good quality, no deformation and rust after long-time use.
Brass Bonnet : High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball : Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem : Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat : Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Handle : Aluminium handle
O-ring : NBR , made of imported raw material, small friction coefficient, long service life and not easy to leak.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
Water Outlet : Made of stainless steel 304 in good quality, no deformation and rust after long-time use.
Details Images
|
Dimension mm
|
1/2" * 3/4"
|
3/4" * 1"
|
1" * 1 1/4"
|
|
A
|
85
|
102
|
120
|
|
B
|
56
|
60
|
68
|
|
C
|
43
|
48
|
48
|
|
D
|
96
|
96
|
127
|
|
E
|
10
|
12
|
14.80
|
|
PN
|
16
|
16
|
16
|
|
No.
|
Part
|
Materials
|
|
1
|
Body
|
Brass
|
|
2
|
Bonnet
|
Brass
|
|
3
|
Ball
|
Brass
|
|
4
|
Seal
|
PTFE
|
|
5
|
Stem
|
Brass
|
|
6
|
O ring
|
NBR
|
|
7
|
O ring
|
NBR
|
|
8
|
Handle
|
Aluminium
|
|
9
|
Nut
|
Stainless Steel
|
