Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant
-
Model Number:
-
JJ -PKM- C01
-
Type:
-
Automatic Door Operators
-
Motor's Power:
-
24VDC 40W
-
rod's max travel:
-
300mm
-
single-leaf length:
-
2.5m
-
rod's running speed:
-
1.6cm/s
-
single-leaf weight::
-
200KG swing gate opener
-
Continunous working time:
-
5 minutes
-
rotational speed:
-
250PRM
-
protection calss:
-
IP55 swing gate opener
-
Gross weight:
-
15KG
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant
-
Model Number:
-
JJ -PKM- C01
-
Type:
-
Automatic Door Operators
-
Motor's Power:
-
24VDC 40W
-
rod's max travel:
-
300mm
-
single-leaf length:
-
2.5m
-
rod's running speed:
-
1.6cm/s
-
single-leaf weight::
-
200KG swing gate opener
-
Continunous working time:
-
5 minutes
-
rotational speed:
-
250PRM
-
protection calss:
-
IP55 swing gate opener
-
Gross weight:
-
15KG
Product Application
This double gate opening system is a robust,tuff,long lasting,this type double swing gates up to 2.5 m in length. The motor can handle light gates. The PKM-C01 swing gate operators is a sleek design telescopic linear screw type actuator that is made of stainless steel with a cast alloy motor housing.The two motors make are constructed of metal (no plastic, fibre or nylon).
The PKM-C01 swing gate opener is fitted with an emergency manual override on each actuator to allow the user to open the gates manually in case of an emergency such as a power failure situation.
|
Power Supply
|
220V 50HZ/110V 60HZ
|
Electric Motor Power
|
24V 40W*2
|
|
Current
|
5A
|
Motor Speed
|
250RPM
|
|
Acutator Running Speed
|
1.6CM/S
|
Actuator Stroke
|
300MM
|
|
Max Single Leaf Width
|
2.5M
|
Max Single Leaf Weight
|
200KG
|
|
Working Temperature
|
-20°C~+55°C
|
Protection Class
|
Ip55
|

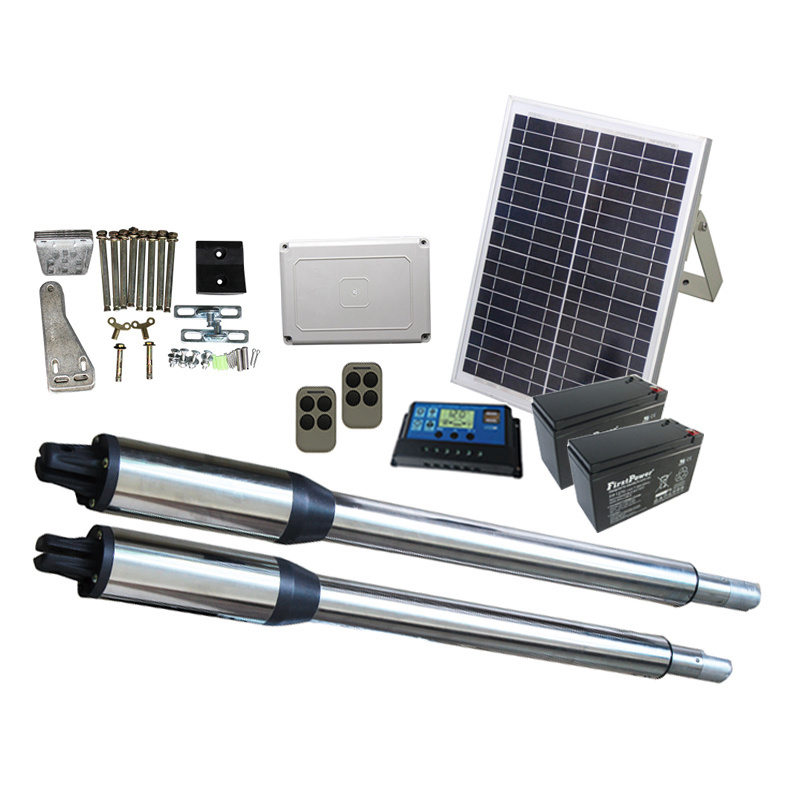

One Set Complete Kits
2 x DC gate motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
1 x Instruction manual
1 x complete install kits
Mean Features
1. Field tested by EU and US clients with Min 30000 open/close cycles.
2. DC 24V voltage motor that is safe and compatible with back up power supply.
3. Copper made worm gear driving design ensures the motor longer working life and extremely quiet.
4. Super quick manually release with secure customized key in case of power failure.
5. Soft start and slow stop.
6. Adjustable opening/closing interval time of double gate leaves.
7. Auto-stop if any obstacles detected during operation.
8. Built in max motor running time adjustable for multiple safety protection.
9. Separately adjust the force of double gate leaves.
10. Single leaf or double leaves operation.
11. Easy installation and low maintenance.
12. 12 months guarantee,life long post sales service.
Diagram for Swing Gate Opener PKM-C01
Application:Used for DC swing gate opener
Voltage: DC 24V
Protection fuse: 10A
Board Memory: 120 rolling code transmitters
frequency: 433.92mhz (other frequency customized)
Output Voltage: DC 12V-24V
Led digital seting and potentiometer setting optional
