Quick Details
-
Material:
-
barium titanate
-
Application:
-
Sensor, cleaning,beauty
-
Shape:
-
Ring
-
Color:
-
Silver
-
Quality guarantee:
-
Strictly Tested
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Devey
-
Model Number:
-

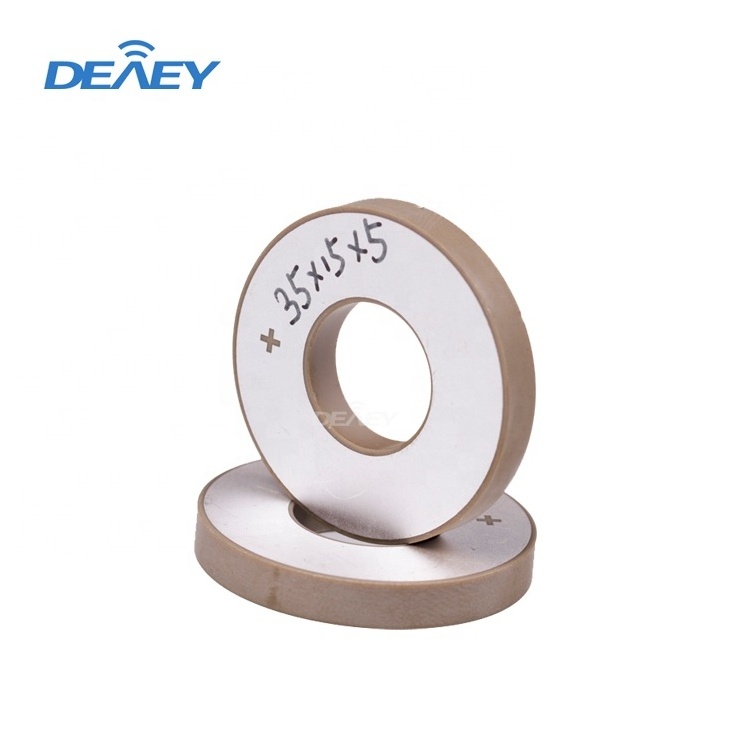

P81- 35*15*5mm
-
Material:
-
barium titanate
-
Application:
-
Sensor, cleaning,beauty
-
Shape:
-
Ring
-
Color:
-
Silver
-
Quality guarantee:
-
Strictly Tested
Product Description
PiezoelectricCeramics (PZT) materials are categorized as functional ceramics. In sensors they make it possible toconvert forces,pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations.PiezoelectricCeramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.
Free samples electric transducer piezo crystal pzt
|
NO.
|
Dimension（mm）
|
Material
|
Radial Frequency(kHz)
|
Impedance（ Ω）
|
Capacitance(pF)
|
Application
|
|
1
|
DW-P43- Φ25*10*5mm
|
PZT4
|
62.14KHz
|
13.82Ω
|
1000pf
|
35KHz/28KHz welding transducer
|
|
2
|
DW-P43- Φ30*12*5mm
|
PZT4
|
47KHz
|
11.2Ω
|
1285pf
|
28KHz welding transducer
|
|
3
|
DW-P43- Φ35*15*5mm
|
PZT4
|
42.6KHz
|
16Ω
|
1800pf
|
28KHz cleaning transducer
|
|
4
|
DW-P43- Φ35*15*5.5mm
|
PZT4
|
43KHz
|
16Ω
|
1700pf
|
28KHz cleaning transducer
|
|
5
|
DW-P43- Φ38*15*5mm
|
PZT4
|
40.2KHz
|
17Ω
|
2500pf
|
28KHz cleaning transducer
|
|
6
|
DW-P43- Φ45*15*5mm
|
PZT4
|
36.3KHz
|
4Ω
|
3200pf
|
40KHz cleaning transducer
|
|
7
|
DW-P43- Φ50*17*5mm
|
PZT4
|
33KHz
|
4Ω
|
4000pf
|
20KHz welding transducer
|
|
8
|
DW-P43- Φ50*17*6.5mm
|
PZT4
|
33.4KHz
|
4.24Ω
|
3000pf
|
20KHz welding transducer
|
|
9
|
DW-P43- Φ50*20*6mm
|
PZT4
|
31.5KHz
|
5.28Ω
|
3300pf
|
20KHz welding transducer
|
|
10
|
DW-P43- Φ50*20*6.5mm
|
PZT4
|
31.3KHz
|
5.2Ω
|
3000pf
|
20KHz welding transducer
|
|
11
|
DW-P43- Φ60*30*10mm
|
PZT4
|
23.87KHz
|
11Ω
|
2300pf
|
15KHz welding transducer
|
|
12
|
DW-P43- Φ65*30*10mm
|
PZT4
|
24KHz
|
10Ω
|
2500pf
|
15KHz welding transducer
|
|
13
|
DW-P43- Φ50*2.6mm-S
|
PZT4
|
43.3KHz
|
1.58Ω
|
7800pf
|
mini cleaning machine
|
|
14
|
DW-P81- Φ25*10*5mm
|
PZT8
|
66.28KHz
|
75.87Ω
|
770pf
|
35KHz/28KHz welding transducer
|
|
15
|
DW-P81- Φ30*12*5mm
|
PZT8
|
55KHz
|
10Ω
|
1075pf
|
28KHz welding transducer
|
|
16
|
DW-P81- Φ35*15*5mm
|
PZT8
|
45.77KHz
|
13.1Ω
|
1400pf
|
28KHz cleaning transducer
|
|
17
|
DW-P81- Φ38*15*5mm
|
PZT8
|
43.8KHz
|
10.66Ω
|
1800pf
|
28KHz cleaning transducer
|
|
18
|
DW-P81- Φ38*15*6mm
|
PZT8
|
43.64KHz
|
13.84Ω
|
1500pf
|
28KHz welding transducer
|
|
19
|
DW-P81- Φ45*17*6.5mm
|
PZT8
|
38.8KHz
|
13.26Ω
|
2500pf
|
15KHz welding transducer
|
|
20
|
DW-P81- Φ50*17*6.5mm
|
PZT8
|
35.3KHz
|
6.5Ω
|
2700pf
|
20KHz welding transducer
|
|
21
|
DW-P81- Φ50*20*5mm
|
PZT8
|
33.2KHz
|
6.36Ω
|
3000pf
|
20KHz welding transducer
|
|
22
|
DW-P81- Φ50*20*6mm
|
PZT8
|
33.1KHz
|
6.6Ω
|
2700pf
|
20KHz welding transducer
|
|
23
|
DW-P81- Φ50*20*6.5mm
|
PZT8
|
33.3KHz
|
7.5Ω
|
2400pf
|
20KHz welding transducer
|
|
24
|
DW-P81- Φ60*30*10mm
|
PZT8
|
25.34KHz
|
15.19Ω
|
1913pf
|
15KHz welding transducer
|
Product packaging
Each piece is individually packaged to prevent breakage
Thickened carton
+ foam paper packaging, more secure
