Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHA
-
Model Number:
-
C303
-
Product name:
-
Illuminated Push Button Switch
-
Material:
-
Plastic
-
Color:
-
Optional
-
Certificate:
-
CQC
-
LED color:
-
Red.Yellow.Green.White.Blue.Orange
-
Keyword:
-
led push button switch
-
Size:
-
12x12mm
-
Mechanical Life:
-
1000000 Cycles
-
Electrical Life:
-
100000 Cycles
-
Brand:
-
CHA
Quick Details
-
Protection Level:
-
IP54
-
Max. Current:
-
100 mA
-
Max. Voltage:
-
12 VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHA
-
Model Number:
-
C303
-
Product name:
-
Illuminated Push Button Switch
-
Material:
-
Plastic
-
Color:
-
Optional
-
Certificate:
-
CQC
-
LED color:
-
Red.Yellow.Green.White.Blue.Orange
-
Keyword:
-
led push button switch
-
Size:
-
12x12mm
-
Mechanical Life:
-
1000000 Cycles
-
Electrical Life:
-
100000 Cycles
-
Brand:
-
CHA

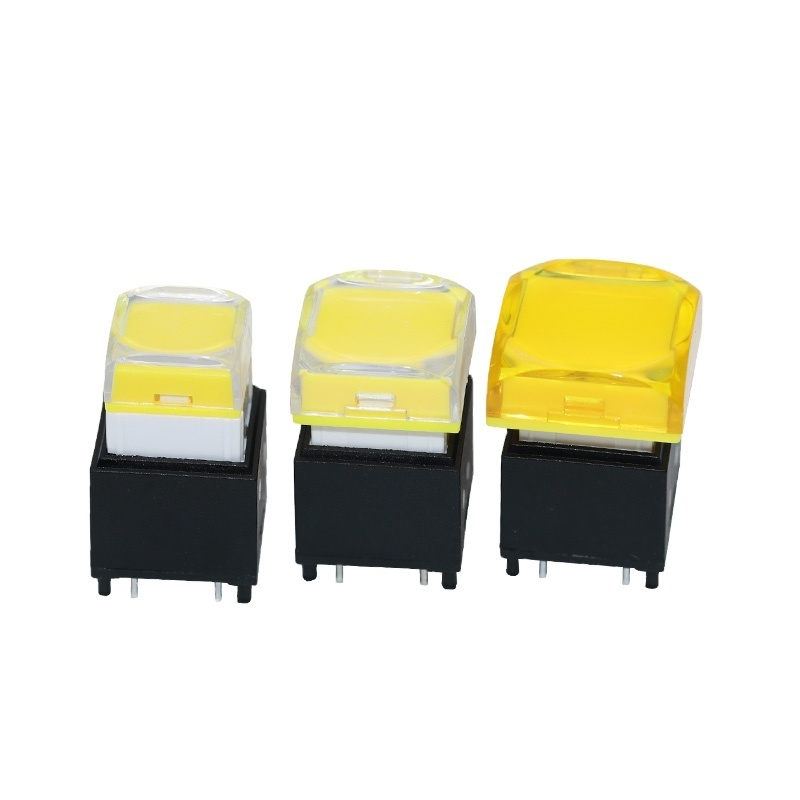

CHA C303 Silent Series illuminated push button switch RGB momentary switch
| Model:C303 series Illuminated push button switches | |
| SPECIFICATIONS | |
| Circuit : | SPST |
| Current rating : | 100mA |
| Voltage rating : | 12VDC |
| Dielectric withstanding voltage: | 250VAC for 1 minute |
| Contact resistance: | 200mQMax. (Initial) |
| Insulation resistance: | 100MQ Min. |
| Operating force: | 250±100gf |
| Full travel: | 4.5mm±0.2mm |
| Mechanical life: | Over 1,000,000 cycles |
| Electrical life: | Over 100,000 cycles |
| Manual welding: | 350°C for 3 seconds |
| Function: | Momentary |
| Operating temperature: | -20°C~+70°C |
| Function: | OFF-(ON) |
Q1.Can I have a sample order ?
A:Yes,We welcome sample order to test and check quality. Mixed samples are acceptable.
Q2.What about the lead time ?
A:Sample need 2 —7 days, mass production time needs about 1 to 2 weeks, Based on quantity.
Q3.Do you have any MOQ limit for order ?
A:Yes Usually MOQ 200 pcs,Except for samples, at least 5 pieces can be provided
Q4.How do you ship the goods and how long does it take to arrive?
A:We usually ship by EMS, DHL, UPS, FedEx or TNT. It usually takes 1 week to arrive. Airline and ocean shipping are optional.
Q5.Do you offer guarantee for the products?
A:Yes.Generally 1 to 2 year.
Q6.How to deal with the faulty?
A:Firstly,Our products are produced in strict quality control system and the defective rate will be less than 0.2%.If there is any faulty. If necessary, we can also go to the site for processing
