Quick Details
-
Brand Name:
-
Yuandong
-
Motor Power:
-
8-15kw
-
Charging Capacity:
-
0.30-1.0 cubic meter
-
Reclaiming capacity:
-
0.30 -1.0 cubic meter
-
Speed of Mixing Drum:
-
29-35r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
2500*1800*2200
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2500 kg
-
Product name:
-
Mini Concrete Mixer Truck
-
Dimensions:
-
4050*1750*2050mm
-
Tank diameter:
-
1350-2050mm
-
Tank Thickness:
-
4-10mm
-
Effective capacity:
-
6m³
-
Drum inclination:
-
16°
-
Loading speed:
-
6m³/min
-
Discharge speed:
-
5m³/min
-
Discharge residual rate:
-
≤0.5%
-
Tank material:
-
Q345B
Quick Details
-
Mixing Power:
-
5.5kw
-
Productivity:
-
2000-3200L/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuandong
-
Motor Power:
-
8-15kw
-
Charging Capacity:
-
0.30-1.0 cubic meter
-
Reclaiming capacity:
-
0.30 -1.0 cubic meter
-
Speed of Mixing Drum:
-
29-35r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
2500*1800*2200
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2500 kg
-
Product name:
-
Mini Concrete Mixer Truck
-
Dimensions:
-
4050*1750*2050mm
-
Tank diameter:
-
1350-2050mm
-
Tank Thickness:
-
4-10mm
-
Effective capacity:
-
6m³
-
Drum inclination:
-
16°
-
Loading speed:
-
6m³/min
-
Discharge speed:
-
5m³/min
-
Discharge residual rate:
-
≤0.5%
-
Tank material:
-
Q345B
Product Introduction

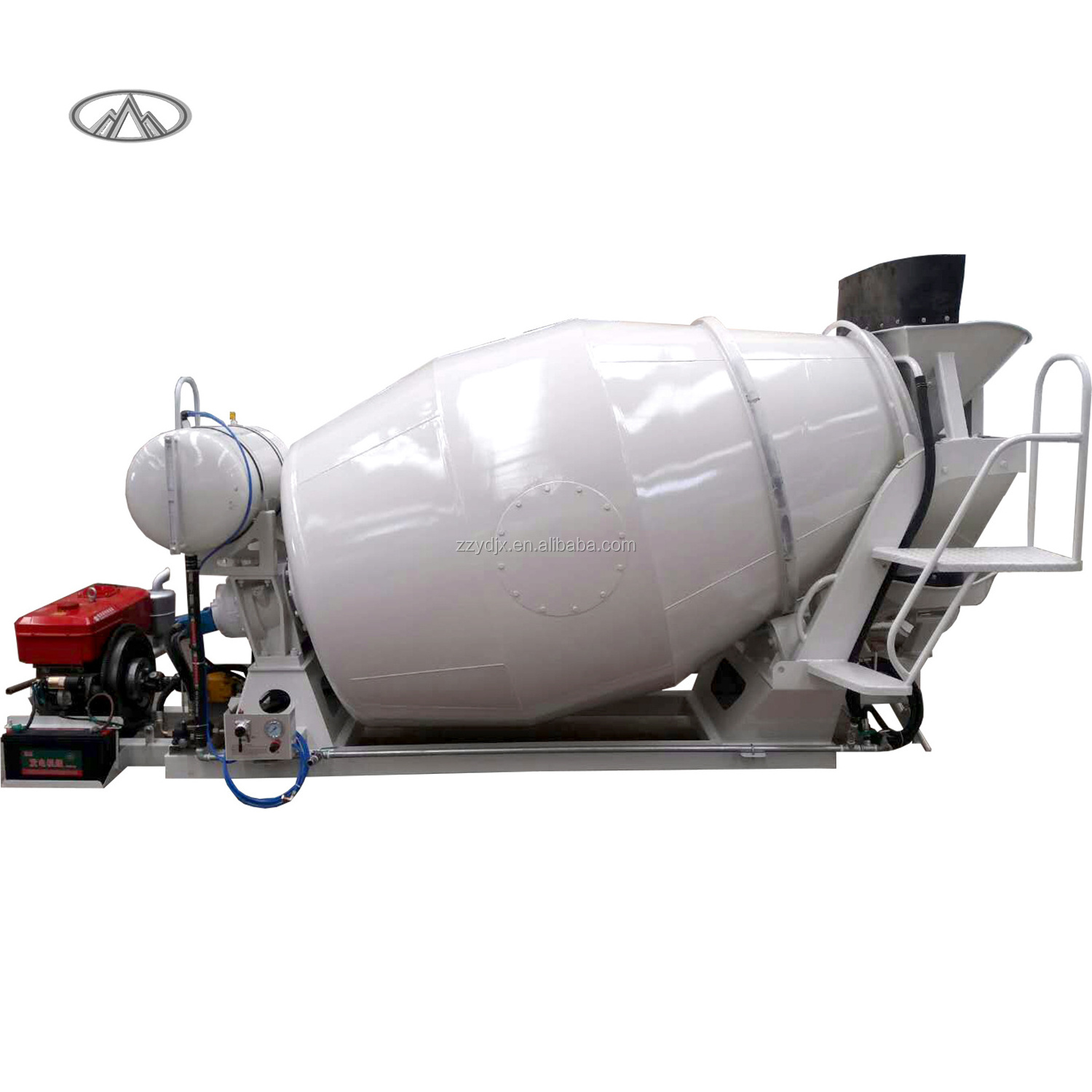

Concrete mixer
truck
(Cement
mixer
truck
) is a special truck used to transport construction concrete; because of its shape, it is often called snail truck. This kind of truck is equipped with cylindrical mixing drum to carry the mixed concrete. During transportation, the mixing drum will always rotate to ensure that the concrete transported will not set. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from occupying the space.
2 yard cement mixer concrete mixer with pump machine concrete truck mixer
Product Specification
|
Model
|
3 Yard
|
4 Yard
|
5 Yard
|
6 Yard
|
|||
|
Actual capacity
|
2.25m³
|
3.30m³
|
4.24m³
|
5.20m³
|
|||
|
Power Type
|
Truck engine or independent diesel engine
|
|
|
|
|||
|
Degree Of Automation
|
Fully automatic
|
Fully automatic
|
Fully automatic
|
Fully automatic
|
|||
|
Speed
|
20-25r/min
|
18-23r/min
|
18-23r/min
|
17-22r/min
|
|||
|
Installation Dimension
(W*L)
|
780*2750 mm
|
760*3300 mm
|
760*3600 mm
|
800*3950 mm
|
|||
Mixer
truck
composition: Class II chassis, transmission system, hydraulic system, frame, mixing tank, feeding and discharging device, water supply system, control system, ladder and other parts. The front end of the mixing tank is connected with the reducer and installed on the front end of the rack, and the rear end is supported by two supporting wheels installed on the back end of the rack through the roller track.
Product details
The power is output by the full power power power take-off of class II chassis and transmitted to the hydraulic pump through the transmission shaft. The hydraulic energy generated by the hydraulic pump is transmitted to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and transmits it to the mixing tank through the reducer to reduce the speed and increase the torque. By adjusting the angle of the servo handle of the (dual function variable) hydraulic pump, the forward and reverse rotation of the mixing tank and the speed are realized
to achieve concrete loading, mixing, stirring, discharging and other operations.
2 yard cement mixer concrete mixer with pump machine concrete truck mixer
Production Display
Client feedback
Packing And Transport
We adopt wooden and iron box to pack steel rod cutter machine, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.Covered with plastic bag--protect machine from water.Plastic bag covered with strong waterproof bag--double protect machine from water and surface damage.Fix the machine into Iron shelf - prevent from damage.Carton cover onto their on shelf--protect the privacy of clients' goods.
Our company
Zhengzhou Yuandong Machinery Manufacturing Co., Ltd. has been focusing on the construction machinery design and manufacturing industry for more than 20 years. Our company has an independent R & D and design team. The production workshop is equipped with professional automated production equipment. Rich experience can provide professional customization and foundry processing services.
Our company's main varieties include: road machinery, reinforced machinery, concrete machinery. Our products are produced in strict accordance with the requirements of ISO9001 quality system and CE safety system.
At present, our company has realized spot warehousing and fixed-point after-sales services in many regions around the world.
At present, our company has realized spot warehousing and fixed-point after-sales services in many regions around the world.
Our Services
1. As a manufacturer, we can tailor our products to our customers' needs.
2. 24 Hours free Online Consulting Service ,we will analysis for customer's needs, provide right machine for customers.
3. 12 Months warranty for the whole this machine,except the artificial damage and consumable accessories.
4. Free operation training in our factory.
5. Engineers are available to service the machinery overseas.
6. Our engineer solve the problems on line if the customers need.
2. 24 Hours free Online Consulting Service ,we will analysis for customer's needs, provide right machine for customers.
3. 12 Months warranty for the whole this machine,except the artificial damage and consumable accessories.
4. Free operation training in our factory.
5. Engineers are available to service the machinery overseas.
6. Our engineer solve the problems on line if the customers need.
2 yard cement mixer concrete mixer with pump machine concrete truck mixer
