Quick Details
-
Dimension(L*W*H):
-
1680x1140x1760mm
-
Weight (KG):
-
700
-
Power (kW):
-
5.5
-
Application:
-
various machining workshops
-
Advantage:
-
high precision
-
Spindle speed:
-
2850r/min
-
Max. travel of table:
-
530x220mm
-
Product name:
-
Grinding Machine
-
Keywords:
-
Universal Grinder Machine
-
Color:
-
Customized Optional
-
Usage:
-
Grinding Products
-
Model:
-
MY250
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1680x1140x1760mm
-
Weight (KG):
-
700
-
Power (kW):
-
5.5
-
Application:
-
various machining workshops
-
Advantage:
-
high precision
-
Spindle speed:
-
2850r/min
-
Max. travel of table:
-
530x220mm
-
Product name:
-
Grinding Machine
-
Keywords:
-
Universal Grinder Machine
-
Color:
-
Customized Optional
-
Usage:
-
Grinding Products
-
Model:
-
MY250

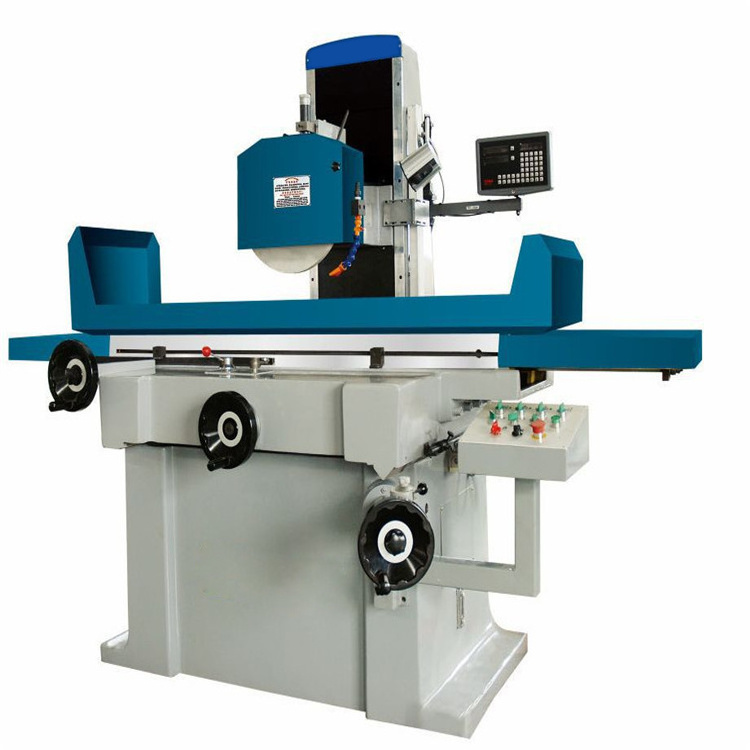

Mini Plane Grinder MY250 Hydraulic Surface Grinding Machine From China
Product main technical Specifications :
|
T echnical specifications |
MY250 |
|
|
The grinding wheel size (o. d * w * i. d.) |
250*540*420 |
|
|
Maximum longitudinal movement of the working table |
500 |
|
|
Maximum horizontal displacement of the working table |
200 |
|
|
Maximum distance from working table to spindle center |
420 |
|
|
Slide table |
V Flat rail |
|
|
Table maximum load |
200 |
|
|
Table size (length * width) |
250*500 |
|
|
Table T type slot |
14×1 |
|
|
Table speed |
|
|
|
After the feed hand wheel |
0.02/grid 2.5/round |
|
|
Start feed wheel |
0.01/grid 2.0/round |
|
|
Grinding wheel size (outer diameter * width * inner diameter) |
200*30*31.75 |
|
|
Spindle speed |
50Hz |
2850 |
|
Main motor |
1.5 |
|
|
Cooling pump |
40 |
|
|
The surface of the base of parallelism |
300:0.006 |
|
|
Surface roughness |
Ra0.32 |
|
|
Machine tool overall size (L * w * h) |
1.25*1.4*1.8 |
|
|
Gross weight, net weight |
0.95 |
|
