Quick Details
-
Model Number:
-
20210730003
-
Brand Name:
-
MZC or OEM
-
Standard or Nonstandard:
-
Standard
-
key word:
-
gate valve
-
Body material:
-
WCB/CF8/CF8M
-
Connection:
-
Flange Ends
-
Size:
-
1/2" - 48"
-
Seal Material:
-
13Cr/CF8/CF8M
Quick Details
-
Port Size:
-
1/2" ~48"
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
20210730003
-
Brand Name:
-
MZC or OEM
-
Standard or Nonstandard:
-
Standard
-
key word:
-
gate valve
-
Body material:
-
WCB/CF8/CF8M
-
Connection:
-
Flange Ends
-
Size:
-
1/2" - 48"
-
Seal Material:
-
13Cr/CF8/CF8M

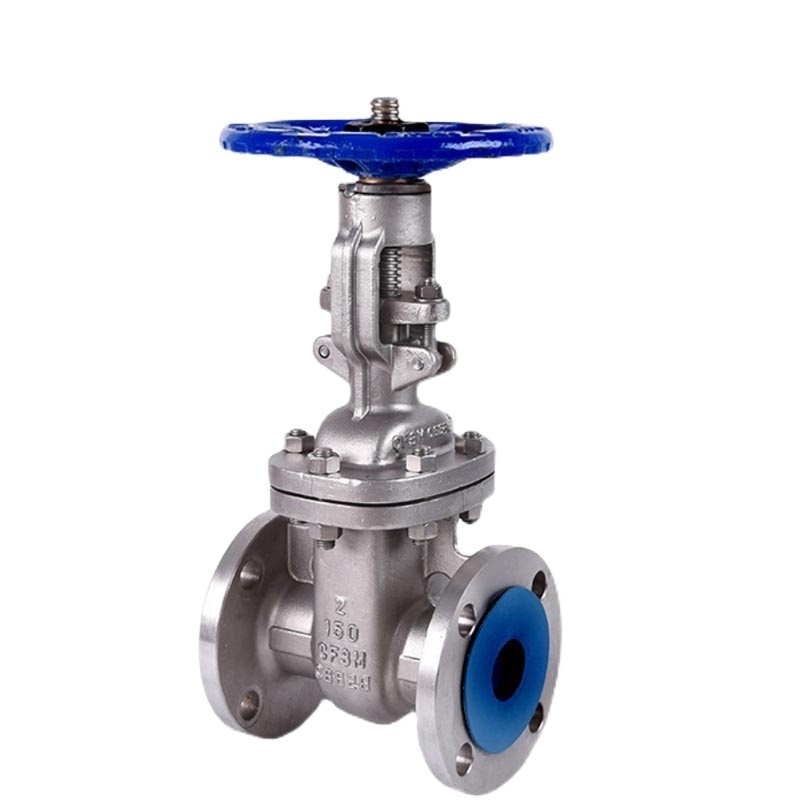

Bolted Bonnet Stainless Steel Solid Wedge Gate Valve
Funcation description:
Gate valve is a valve that the valve plate moves along the vertical
direction in the pipeline.
Advantages of gate valve:
1. Small fluid resistance
2. The torque for opening and closing is small, so it is easy to open and
close.
3. The medium flowing direction is not restricted, and it doesn't disturb
flowing and reduce the pressure of pipeline.
4. Short length structure
5. Good sealing performance
6. Simple shape, good casting process, widely used
Standards:
Design Standard:
ANSI B16.34 / API 600 / API 602
Inspection & Test:
API 598
Face To Face:
ANSI B16.10
Flange Connection:
ANSI B16.5 (For NPS≤24) / ANSI B16.47 SERIES B, ANSI 16.47 SERIES A, MSS SP-44 (For NPS >24)
Application:
Applicable Temperature:
-196℃ ~ 649 ℃
Main Materials:
WCB/CF8/CF8M/CF3/CF3M
Applicable Medium:
Water / Oil / Gas / Causticity Medium
Pressure Rating: Class150 ~ Class900 PN16 ~ PN64
Size Range: 1/2" ~ 48"
Pressure Testing:
