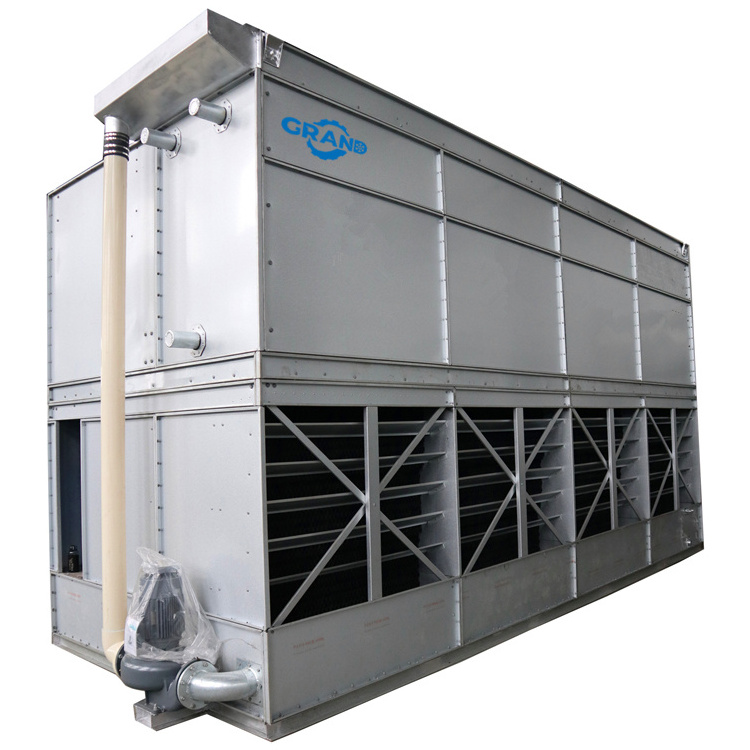

Heat exchange takes place between the high-temp Gaseous refrigerant in pipe coil and water sprayed onto it. The high-temp Gaseous refrigerant turns into liquid during the process.
The fresh air travels from the bottom to the top of the condenser, taking away the vapor of the heated spay water. The vapor water will be stopped by the water fender board and flows into the collection basin through pipe coils, and then pumped back into the circulation system. The lost water can be re-supplied with the water level regulator
Continuous bend coil pipe, with long flow path, few weld joint and leakage points;
Hot dipped galvanized technology adopted to improve the corrosion prevention performance;
Tube Diameter 26.7 mm
Our product adopt special axial fan with aluminum alloy blade.
The structure design of tilting type wind page, streamline inlet air duct, no pulley drive, and adopts the fully enclosed self-cooled low noise special motor.
It has the advantage of small size, light weight, good start-up performance, reliable operation and durability.
The water pump adopts high-quality mechanical seals that are not restricted by steering,
It has characteristics such as no leakage, long lifetime, less power consumption,large flow, low noise, high efficiency etc.
The water pump motor we use famous brand such as Siemens.
Evaporation condenser original removable dehydrator is made of corrosion-resistant PVC material.
Its structure makes the air flow direction change can effectively remove the moisture from the coil, so that the water drift rate reaches 0.001%.
When the water eliminator or packing is cleaned, the eliminator can be removed easily .
|
