Quick Details
-
Name:
-

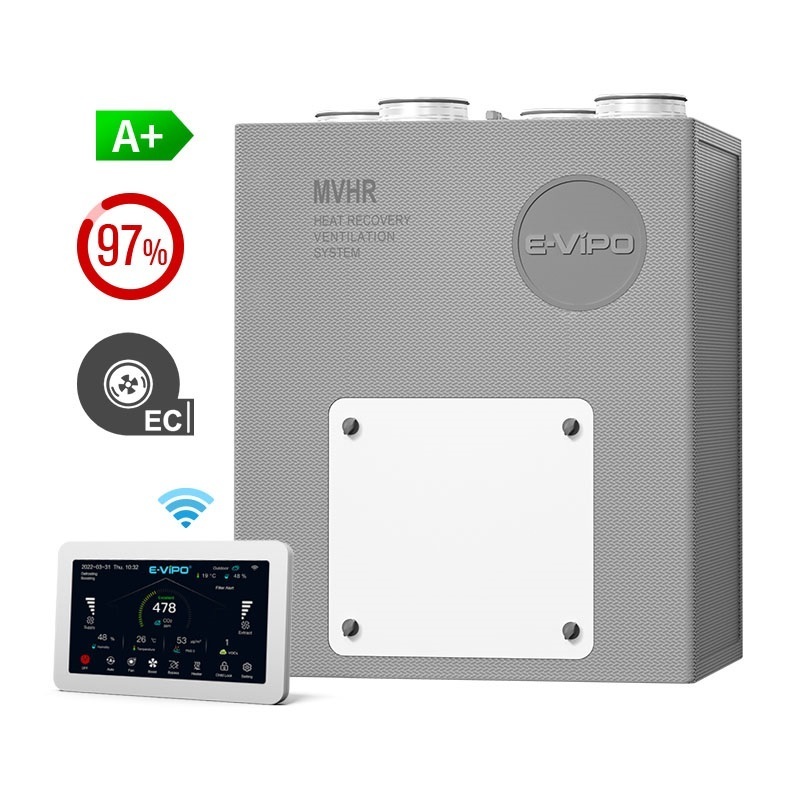

Wall Air Recuperator Heat Recovery Ventilation System
-
Airflow:
-
500m3/h
-
Motor Type:
-
Energy Saving EC Motor (BLDC)
-
Heat Recovery Type:
-
Counter-flow Heat Exchanger * 2pcs
-
Bypass:
-
100% Summer Bypass AUTO
-
Supply Filters:
-
G4 (Standard) | F8 (Optional)
-
Shell Material:
-
100% EPP Casing
-
Heat Recovery Efficiency:
-
Up to 97% Efficiency
-
Other Features:
-
Boost Switch/ Air Damper/ Defrost/ Pre-heater
-
WiFi Control:
-
APP Remote Control
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
E-VIPO
-
Model Number:
-
TP SERIES
-
Name:
-
Wall Air Recuperator Heat Recovery Ventilation System
-
Airflow:
-
500m3/h
-
Motor Type:
-
Energy Saving EC Motor (BLDC)
-
Heat Recovery Type:
-
Counter-flow Heat Exchanger * 2pcs
-
Bypass:
-
100% Summer Bypass AUTO
-
Supply Filters:
-
G4 (Standard) | F8 (Optional)
-
Shell Material:
-
100% EPP Casing
-
Heat Recovery Efficiency:
-
Up to 97% Efficiency
-
Other Features:
-
Boost Switch/ Air Damper/ Defrost/ Pre-heater
-
WiFi Control:
-
APP Remote Control
Features
▶
Durable EPP (Expanded Polypropylene) Casing
▶ High-efficiency heat recovery up to 97%
▶ EC Energy Saving Motor (High Static Pressure)
▶
Summer Bypass Integration
▶
Low Energy Consumption
▶ Efficient Sound Reduction
▶ Efficient Sound Reduction
▶ Strong Thermal Insulation
▶ WiFi Control - APP for Android / iOS
If you feel comfortable with the temperature of the outdoor air, you can start the bypass function. The outdoor air can enter the room directly without heat exchange, and the hot indoor air is discharged outside.
You may choose bypass automation works based on Indoor temperature or Outdoor temperature.
|
Model
|
Airflows
|
Efficiency
|
Supply Filters
|
Motor
|
Heat
Exchanger
|
Air Duct
Diameter
|
|
TP350
|
350m3/h
|
89% ~ 97%
|
G4 | F8
|
EC (BLDC)
|
Counter-flow*2
|
Φ160mm
|
|
TP400
|
400m3/h
|
87% ~ 97%
|
G4 | F8
|
EC (BLDC)
|
Counter-flow*2
|
Φ160mm
|
|
TP450
|
450m3/h
|
84% ~ 97%
|
G4 | F8
|
EC (BLDC)
|
Counter-flow*2
|
Φ160mm
|
|
TP500
|
500m3/h
|
81% ~ 97%
|
G4 | F8
|
EC (BLDC)
|
Counter-flow*2
|
Φ160mm
|
|
TP550
|
550m3/h
|
78% ~ 97%
|
G4 | F8
|
EC (BLDC)
|
Counter-flow*2
|
Φ160mm
|
|
TP600
|
600m3/h
|
75% ~ 97%
|
G4 | F8
|
EC (BLDC)
|
Counter-flow*2
|
Φ160mm
|
Reversible Mounting
Same Unit Used For LEFT & RIGHT Installation
VK8 Controller Feature
- HD 7” Color Touchscreen with Real-time IAQ Display
- Variable Speed Control
- Modbus RS485 Smart Home Connection
- IAQ Sensors CO2 / PM2.5 / VOCs / TEMP / RH
- Weekly Scheduled Operation
- Optional Fans Separately Control
- Multiple External CO2 / RH / TEMP Sensors Connection
- Multiple External Boost Switches Connection
- Bypass / Defrost / IAQ Automation
- APP Remote Control Available
- Filter Countdown / Replacement Notification
- Complete Settings on Control Panel
- Variable Speed Control
- Modbus RS485 Smart Home Connection
- IAQ Sensors CO2 / PM2.5 / VOCs / TEMP / RH
- Weekly Scheduled Operation
- Optional Fans Separately Control
- Multiple External CO2 / RH / TEMP Sensors Connection
- Multiple External Boost Switches Connection
- Bypass / Defrost / IAQ Automation
- APP Remote Control Available
- Filter Countdown / Replacement Notification
- Complete Settings on Control Panel
VK2 Controller Feature
- 3.5” Display & Touchscreen
-
Optional Fans Separately Control
- Filter Management with Filter Timer & Notification
-
Week Scheduled Operation
-
Boost Ventilation Function
- APP Remote Control Available
