This miner's lamp cannot have the functions of regular miner's lamps, as well as video shooting and audio recording functions,
with 2 million pixels, 128G large memory, and 1280 * 720 resolution. There is a USB interface to connect the computer to export
and import files.
- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
1
-
Input Voltage(V):
-
3.7V
-
Product Weight（kg）:
-
0.7
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HUC
-
Model Number:
-
KLX5LM KLX6LM
-
Rated voltage:
-
3.7V
-
Rated capacity:
-
5/6 Ah
-
Effective working time main light source:
-
>18 h
-
Rated voltage LED main light source:
-
3.7V
-
Rated current LED main light source:
-
0.47A (Including camera)
-
LED main light source luminous intensity:
-
≥11 CD
-
Maximum output voltage:
-
4.2/5.5V (U0)
-
Resolution:
-
1280x720 px
-
Effective recording time:
-
≥8/12/15 h
-
Full lamp weight:
-
≤0.70 kg
Quick Details
-
Lifespan (hours):
-
100000
-
Power Source:
-
rechargeable battery
-
Lamp Body Material:
-
ABS
-
Warranty(Year):
-
1
-
Input Voltage(V):
-
3.7V
-
Product Weight（kg）:
-
0.7
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HUC
-
Model Number:
-
KLX5LM KLX6LM
-
Rated voltage:
-
3.7V
-
Rated capacity:
-
5/6 Ah
-
Effective working time main light source:
-
>18 h
-
Rated voltage LED main light source:
-
3.7V
-
Rated current LED main light source:
-
0.47A (Including camera)
-
LED main light source luminous intensity:
-
≥11 CD
-
Maximum output voltage:
-
4.2/5.5V (U0)
-
Resolution:
-
1280x720 px
-
Effective recording time:
-
≥8/12/15 h
-
Full lamp weight:
-
≤0.70 kg
Hunan Huachuang Lighting Electrical Appliance Co., Ltd
Hunan Huachuang Lighting
has been a professional manufacturer of mining lighting equipment for 20 years. Our main products include: mining lamps,headlights, explosion-proof lighting lamps, digital gas alarm lamps, tunnel lamps, mining charging racks (charging cabinets), and mining command and communication systems; Production and sales of injection molded shells and die-casting shells. The product is explosion-proof and has complete coal safety certification.
Detailed Images
Instant video capture and audio recording tracking function, 128GB of large memory
Configure a charger for use while charging
Rechargeable lithium battery, equipped with a charger, can be charged and used at any time. It is lightweight, convenient to
carry, maintenance free, and has charging and discharging protection functions. It can be fully charged for more than 18 hours at
a time.
carry, maintenance free, and has charging and discharging protection functions. It can be fully charged for more than 18 hours at
a time.
Explosion proof and waterproof, suitable for various occasions
It can be used for emergency lighting in mining areas, tunnels, petrochemical industries, special places for electricity, railway
and highway construction and repair, river and sea aquaculture, ship operations, emergency rescue and disaster relief, and other
occasions.
and highway construction and repair, river and sea aquaculture, ship operations, emergency rescue and disaster relief, and other
occasions.
Miner's lamp cap hook design
Head lamp can be rotated 180 degrees, thickened firmly, not easy to break. It can be put on the helmet and can be hung on the
waist.
waist.
Intrinsically safe double-layer protector device
With both light source and battery equipped with protectors, dual circuit protection, stronger safety and stability performance,
suitable for use in various high-risk environments such as gas mining areas. There are also explosion-proof and IP65 waterproof ratings
suitable for use in various high-risk environments such as gas mining areas. There are also explosion-proof and IP65 waterproof ratings
|
Product Name
|
|
|

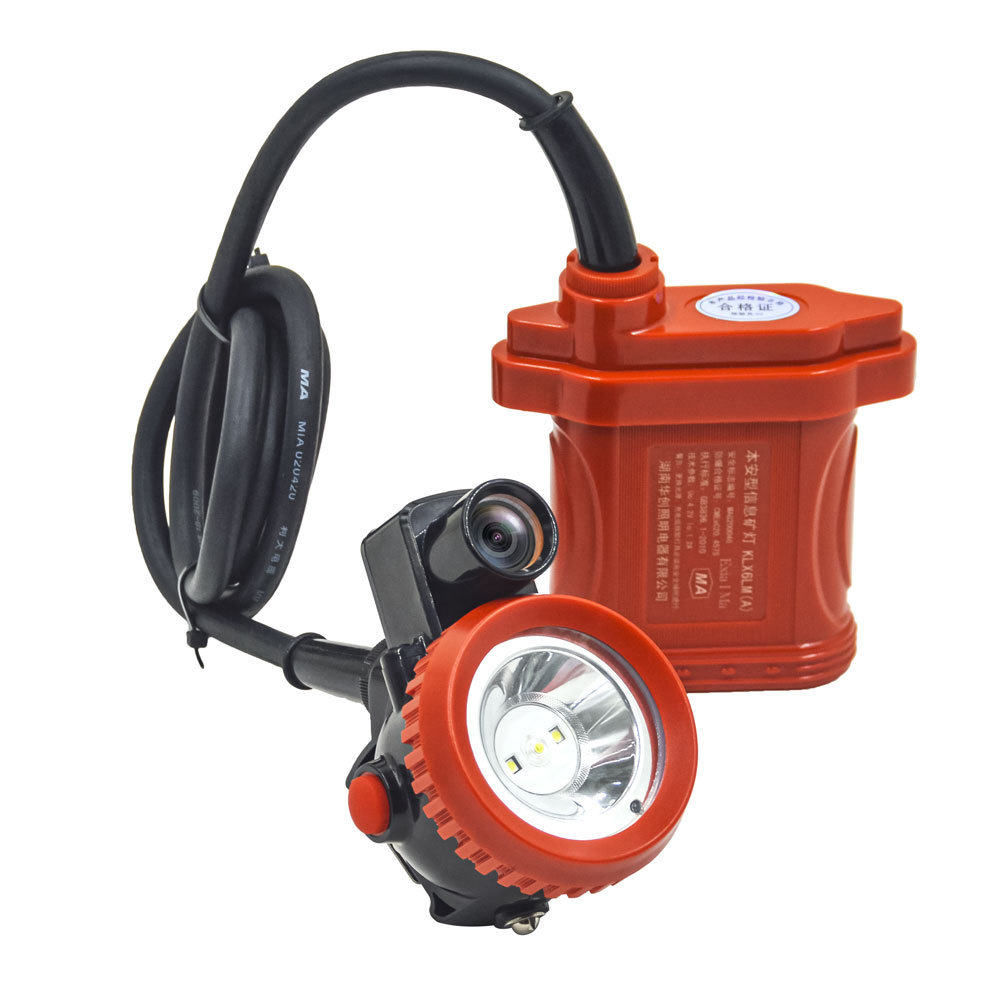

Intrinsically safe information miner's lamp
|
|
|||
|
Rated voltage
|
|
|
3.7V
|
|
|||
|
Rated capacity
|
|
|
5/6 Ah
|
|
|||
|
Effective working time of the main light source
|
|
|
>18 h
|
|
|||
|
Rated voltage of LED main light source
|
|
|
3.7V
|
|
|||
|
Rated current of LED main light source
|
|
|
0.47A (Including camera)
|
|
|||
|
LED main light source luminous intensity
|
|
|
≥11 CD
|
|
|||
|
Rated voltage of LED auxiliary light source
|
|
|
3.7V
|
|
|||
|
Rated current of LED auxiliary light source
|
|
|
0.09A
|
|
|||
|
Maximum output voltage (Intrinsic safety parameters)
|
|
|
4.2/5.5V (U0)
|
|
|||
|
Maximum output current (Intrinsic safety parameters)
|
|
|
1.1 A ( I 0 )
|
|
|||
|
Resolution
|
|
|
1280x720 px
|
|
|||
|
Effective recording time
|
|
|
≥8/12/15 H
|
|
|||
|
Storage period
|
|
|
half a year
|
|
|||
|
Battery cycle life
|
|
|
≥500 cycle
|
|
|||
|
Full lamp weight
|
|
|
≤0.70 kg
|
|
|||
With professional and technical personnel, dozens of sets of advanced equipment, adapt to mass production, fast shipment. There are special CNC workshop, milling machine workshop, mold workshop, spray workshop, injection workshop, die casting workshop, assembly workshop, charging and testing workshop, R & D design room, office area and so on.
