OMC 5 Axis CNC granite stone slab cutting polishing edge machine price

OMC 5 Axis CNC granite stone slab cutting polishing edge machine price

FOB Reference Price: Get Latest Price

≥1 Sets

US $26800

≥5 Sets

US $25800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 100%

Place of Origin:: China

Brand Name:: OMC

Voltage:: 380V

Dimension(L*W*H):: 4500x2750x2100mm

Weight:: 2100 kg

Product name:: 5 Axis CNC granite stone slab cutting polishing edge machine price

Programming method 1:: Manual or Image input

Control method:: CNC

X axis working stroke:: 3000mm

Y axis working stroke:: 2000mm

Z axis working stroke:: 260mm

A axis working stroke:: 360 degree free rotation

B axis working stroke:: 0-90 degree

Cutting thickness:: 100mm

R.P.M:: 2800-3400

Quick Details

Type:: Stone Cutting Machine

Power:: 4kw

Cutting thickness (max):: 100mm

Production Capacity:: 100%

Place of Origin:: China

Brand Name:: OMC

Voltage:: 380V

Dimension(L*W*H):: 4500x2750x2100mm

Weight:: 2100 kg

Product name:: 5 Axis CNC granite stone slab cutting polishing edge machine price

Programming method 1:: Manual or Image input

Control method:: CNC

X axis working stroke:: 3000mm

Y axis working stroke:: 2000mm

Z axis working stroke:: 260mm

A axis working stroke:: 360 degree free rotation

B axis working stroke:: 0-90 degree

Cutting thickness:: 100mm

R.P.M:: 2800-3400

PRODUCT RECOMMENDED

OMC 5 axis quartz granite marble stone

CNC milling cutting bridge saw machine

CNC bridge saw 5 axis stone cutting machine

for granite quartz

Product Description

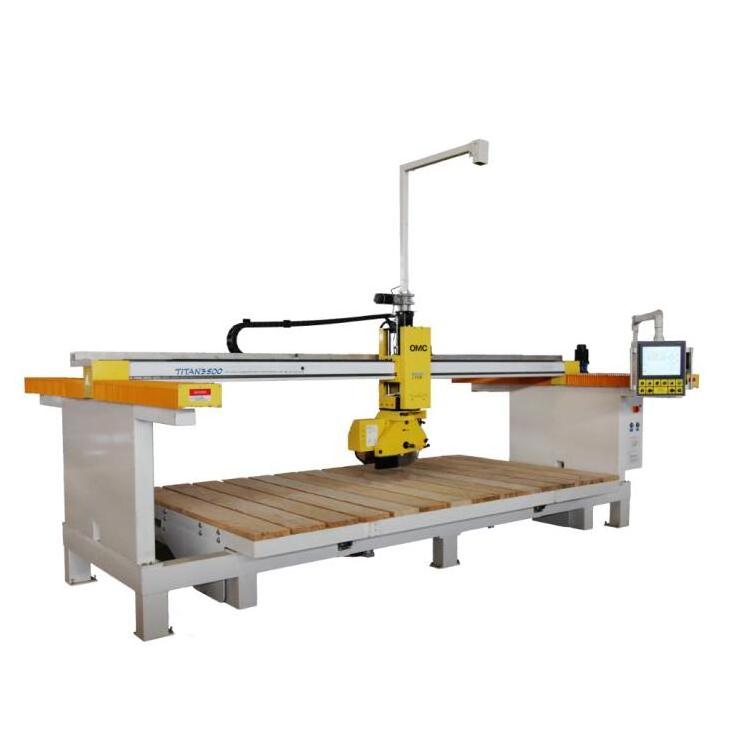

TITAN 3500 is the new generation multi-function processing machine which is associated to be designed and manufactured between OMC and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge.

This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.

Characteristic:

1. Compact size without needing the ground base.

2. With advanced CNC control system and all pattern operation, the machine can be operated without professional operators.

3. With powerful functions, the machine can work almost all the jobs of a small factory .

4. With less electricity and more efficiency, the cost is decreased much.

5. High quality accessories and electric parts are used to secure long service life and low cost.

Friendly Note:

Camera Funtion is optional function. The price shown on the page does not include the function.

Programming method 1	CAD image input & Manual programming
Control method	CNC
Power	4KW (optional 7.5KW / 11KW)
Working voltage	380V 3phase (customized)
R.P.M	2800r/min
Blade size	350mm
X-axis working stroke	3000mm
Y-axis working stroke	2000mm
Z-axis working stroke	260mm
A-axis working stroke	360° free rotation
B-axis working stroke	0-90°
X/Y-axis cutting speed	1-2000mm/min
Z-axis cutting speed	1-1000mm/min
A cutting speed	0-7r/min
Cutting thickness	100mm
Processing precision	0.2mm
Working table size	3500x2000mm
Overall size	5000x2750x2100mm
Weight	2200KG
