Quick Details
-
Product Name:
-
vacuum motor 1500w
-
Usage:
-
Industrial wet /dry vacuum cleaner
-
Voltage(V):
-
100-240
-
Power(W):
-
1000-1600
-
Feature:
-
double stage
-
Advantage:
-
big suction and large air flow
-
Certification:
-
CE,CCC,REACH
-
Rated Frequency:
-
50Hz
-
Class of insulation:
-
E
-
Material:
-
Pure copper wire
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Powerx
-
Model Number:
-
PX-PR-YLc
-
Product Name:
-
vacuum motor 1500w
-
Usage:
-
Industrial wet /dry vacuum cleaner
-
Voltage(V):
-
100-240
-
Power(W):
-
1000-1600
-
Feature:
-
double stage
-
Advantage:
-
big suction and large air flow
-
Certification:
-
CE,CCC,REACH
-
Rated Frequency:
-
50Hz
-
Class of insulation:
-
E
-
Material:
-
Pure copper wire

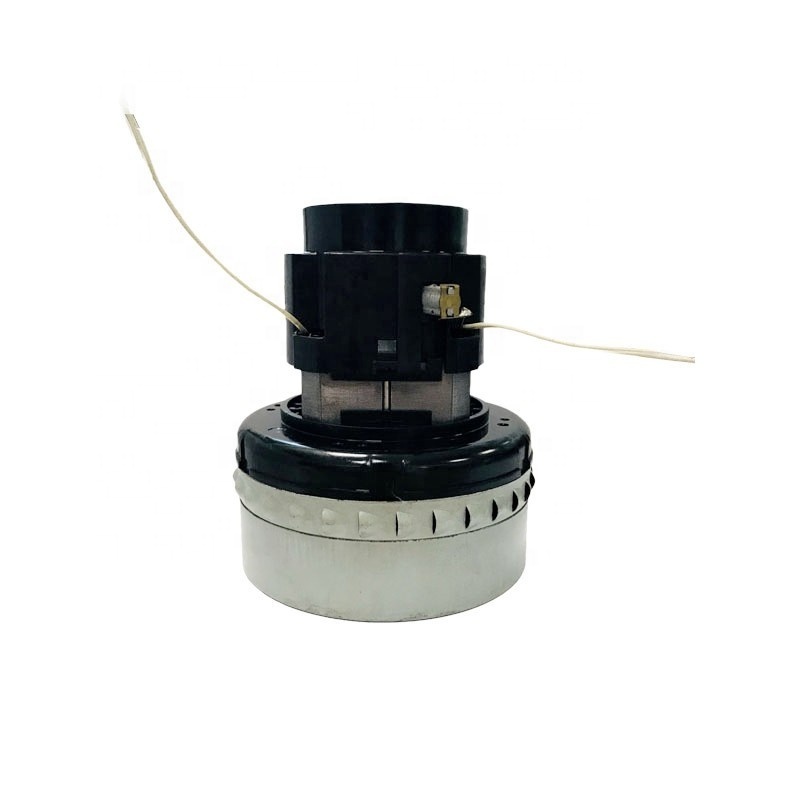

vacuum motor 1500w
Vacuum cleaner motor is the heart of the vacuum cleaner . Main types of the vacuum cleaner are: dry vacuum cleaner motor, wet and dry vacuum cleaner motor. Vacuum cleaner motor consists of two parts: part of the motor and fan, due to the vacuum cleaner motor speed requirements is very high, general in 20000-30000 turn per minute, so the motor is mainly used is the series excited motor, also known as series excited motor.
The motor is also known as the "motor" the color line is an insulating layer
A machine that converts electrical energy into mechanical energy. A large amount of electric energy produced by the generator can be used in the production process by using the electric motor. The structure and the generator are basically the same, but the principle is just the opposite, the motor is energized to the rotor coil to cause movement, and the generator is the use of the rotor in the magnetic field of motion generated current. In order to obtain a strong magnetic field, regardless of motor or generator, to use the electromagnet is appropriate.
The stator excitation winding and armature (rotor) winding in series, can pass through the DC and AC motor with commutator reversing.
1.Ametek vacuum motor
2.Motor with CE.CCC
3.Best price and big suction
4.Watts:1000-1600W,voltage:100-240V
5.Diameter:144.4mm,height:176.5mm
6.Motor for central industrial vacuum cleaner
PX-PR-YLc Technical Parameters
|
Parameters/Models |
PX-PR-YLc |
Tolerance Value |
|
Rated voltage(V) |
100-240 |
/ |
|
Rated frequency(Hz) |
50/60 |
/ |
|
Rated input power(W) |
1200 |
+10% -10% |
|
Max vacuum degree(KPa) |
26 |
+5% -5% |
|
Max air flow(M3/min) |
3.1-3.6 |
-8% |
|
Temperature rise(K) |
60 |
/ |
|
Noise(dB) |
93 |
/ |
|
Spark |
<1 |
/ |
|
Class of insulation |
ABEF |
/ |
|
Max efficiency |
≥33% |
+10% |
