Quick Details
-
Model:
-
18series
-
Core Components:
-
Drag chain
Quick Details
-
Material:
-
engineering PA, PA+30% GLASS FIBER
-
Weight (KG):
-
2.2
-
Brand:
-
CZZH
-
Model:
-
18series
-
Core Components:
-
Drag chain
Feature

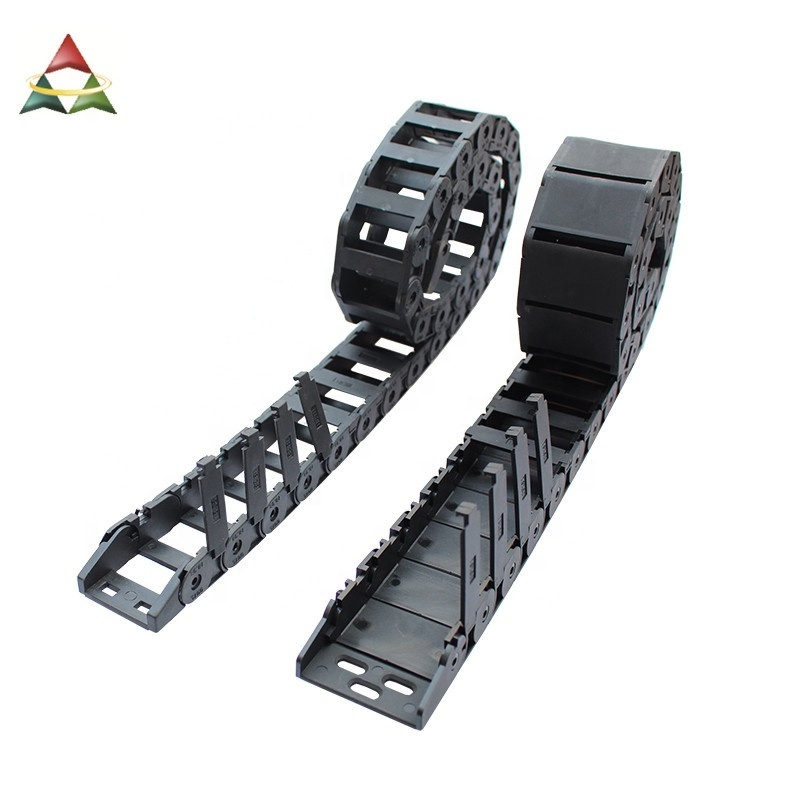

1.The small size semi-closed cable drag chain can be used for such locations where reciprocating motions are required so that internally installed cables ,oil pipes ,gas tubes and water tubes can be dragged an protected .
2.The appearance of the cable protection chain looks like the crawler of a tank consisting of certain number of joints,they are freely turned roud.
3.Spacers are not available for these small ones.
4.Material :reinforced nylon
5.resistance :oil and salt resistance
6.service :under normal conditions,5 million reciprocating motions can be reached.
The above is only part of the product specifications,
Other specifications, please contact me!
How to choose the size of cable drag chain?
1.I nner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
2.I nner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin.
3.R adius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin.
Installation for cable drag chain
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Product Show
1. 24 HOURS SERVICE FOR YOU
Our service is available for seven twenry-four! There will be a team at your service anytime.
2. We are a MANUFACTURER , and we strictly control the costs and expenses to ensure the low price as well as high quality.
3. OEM of customized products/ logo /btand/ Packing is accepted.
4. We have more than 20 production lines, and there are enough stocks for normal size products, Quick delivery.
I will offer you the most suitable semi-closed cable drag chain, the most competitive price!
