Quick Details
-
Jacket:
-
PVC,PE,LSZH
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JINGWEI
-
Model Number:
-
YJV,YJLV,YJV32,YJLV32 and so on
-
Conductor:
-
Copper,Aluminum
-
Size:
-
1*25-3*630
-
Rated Voltage:
-
3.6-33kV
-
Packing:
-
Wooden Drum/Iron Drum
-
Feature:
-
UV Resistance
-
Special Requiremets:
-
Fire-resistant, Flame retardant, Low smoke
-
Sectional Area:
-
25sqmm-630sqmm
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Industrial
-
Conductor Material:
-
Copper,Aluminum
-
Jacket:
-
PVC,PE,LSZH
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JINGWEI
-
Model Number:
-
YJV,YJLV,YJV32,YJLV32 and so on
-
Conductor:
-
Copper,Aluminum
-
Size:
-
1*25-3*630
-
Rated Voltage:
-
3.6-33kV
-
Packing:
-
Wooden Drum/Iron Drum
-
Feature:
-
UV Resistance
-
Special Requiremets:
-
Fire-resistant, Flame retardant, Low smoke
-
Sectional Area:
-
25sqmm-630sqmm
Details Images
Products Description

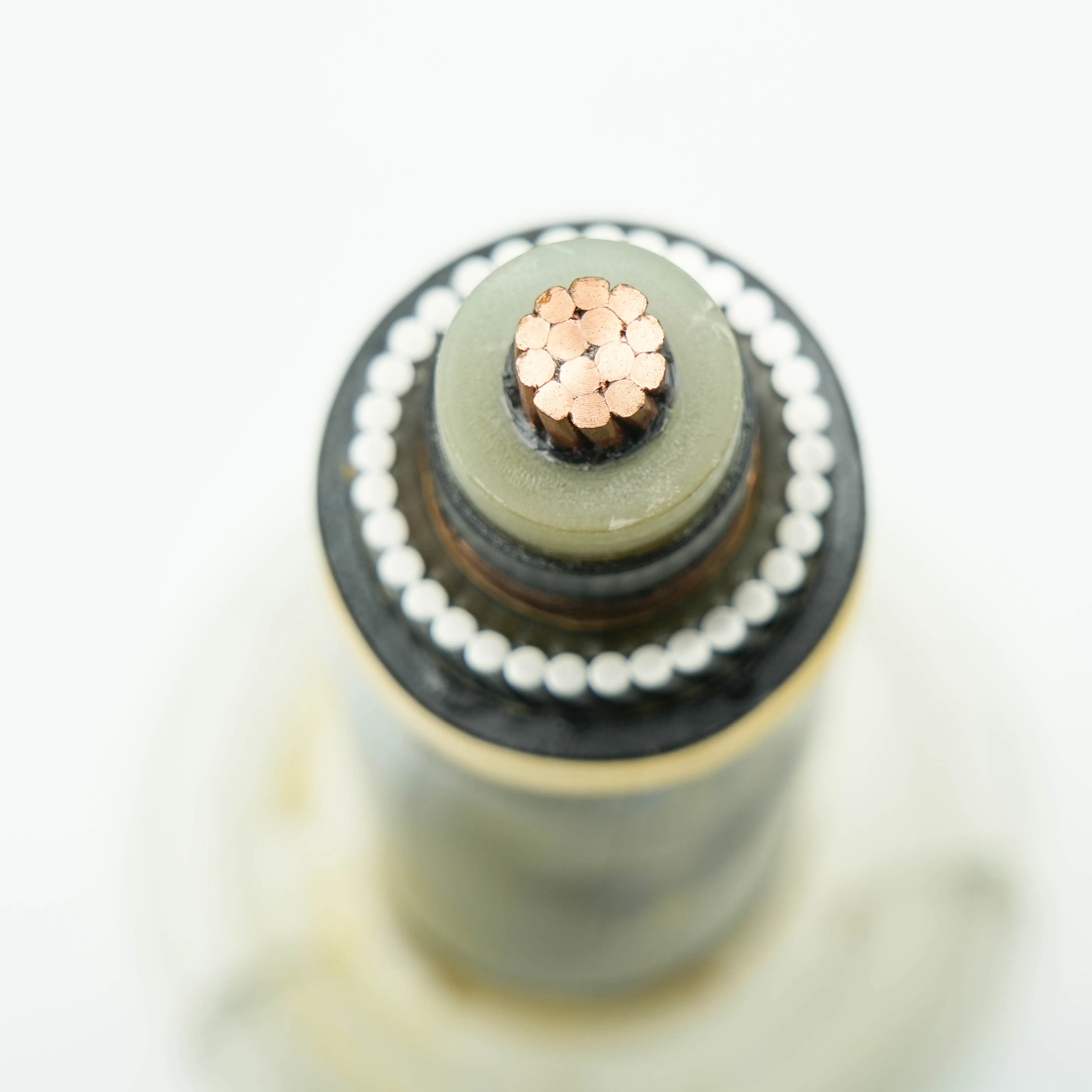

XLPE insulated power cable for rated voltage26/35KV
|
Cable technical parameters
|
|
|
|
|
||||
|
D.C resistance of conductor and Conductor maximum short circuit current
|
|
|
|
|
||||
|
Nominal cross-sec tional area ㎟
|
（Ω/km） Max.D.C resistance of conductor at 20℃
|
|
Maximum allowable short-circuit current of conductor at 90℃ (1 second)
|
|
||||
|
|
Copper conductor
|
Aluminum conductor
|
Copper conductor
|
Aluminum conductor
|
||||
|
25
|
0.727
|
1.2
|
3.69
|
2.42
|
||||
|
35
|
0.524
|
0.868
|
5.15
|
3.37
|
||||
|
50
|
0.387
|
0.641
|
7.31
|
4.79
|
||||
|
70
|
0.268
|
0.443
|
10.2
|
6.68
|
||||
|
95
|
0.193
|
0.32
|
13.8
|
9.03
|
||||
|
120
|
0.153
|
0.253
|
17.4
|
11.4
|
||||
|
150
|
0.124
|
0.206
|
21.7
|
14.2
|
||||
|
185
|
0.0991
|
0.164
|
26.7
|
17.5
|
||||
|
240
|
0.0754
|
0.125
|
34.6
|
22.6
|
||||
|
300
|
0.0601
|
0.1
|
43.1
|
28.2
|
||||
|
400
|
0.047
|
0.0778
|
57.4
|
37.6
|
||||
|
500
|
0.0366
|
0.0605
|
71.7
|
47
|
||||
|
630
|
0.0283
|
0.0469
|
88.8
|
58
|
||||
