Quick Details
-
Brand Name:
-
GN
-
Model Number:
-
CX-GWMP
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.5~2
-
Cable Length:
-
customized
-
Outlet Size:
-
G1/8" G1/4" G1/2"
-
Power:
-
customized
-
Number of evolutions:
-
100~1000r/min
-
Flow capacity:
-
0.15-3.6 CC/r OR 6-30(±3%) CC/r
-
Working speed:
-
5~200 r/min
-
Medium:
-
Fluid
-
Temperature:
-
200℃
-
Min inlet pressure:
-
less than 0.2Mpa
-
Max outlet pressure:
-
Less than 30 Mpa
-
Product name:
-
gear metering pump
-
Working pressure:
-
0~2.5Mpa
Quick Details
-
Application:
-
Automotive Industry, Irrigation and Agriculture, Machining, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
0.1~30MPA
-
Voltage:
-
220/380VAC
-
Brand Name:
-
GN
-
Model Number:
-
CX-GWMP
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.5~2
-
Cable Length:
-
customized
-
Outlet Size:
-
G1/8" G1/4" G1/2"
-
Power:
-
customized
-
Number of evolutions:
-
100~1000r/min
-
Flow capacity:
-
0.15-3.6 CC/r OR 6-30(±3%) CC/r
-
Working speed:
-
5~200 r/min
-
Medium:
-
Fluid
-
Temperature:
-
200℃
-
Min inlet pressure:
-
less than 0.2Mpa
-
Max outlet pressure:
-
Less than 30 Mpa
-
Product name:
-
gear metering pump
-
Working pressure:
-
0~2.5Mpa
|
|
|
|
||

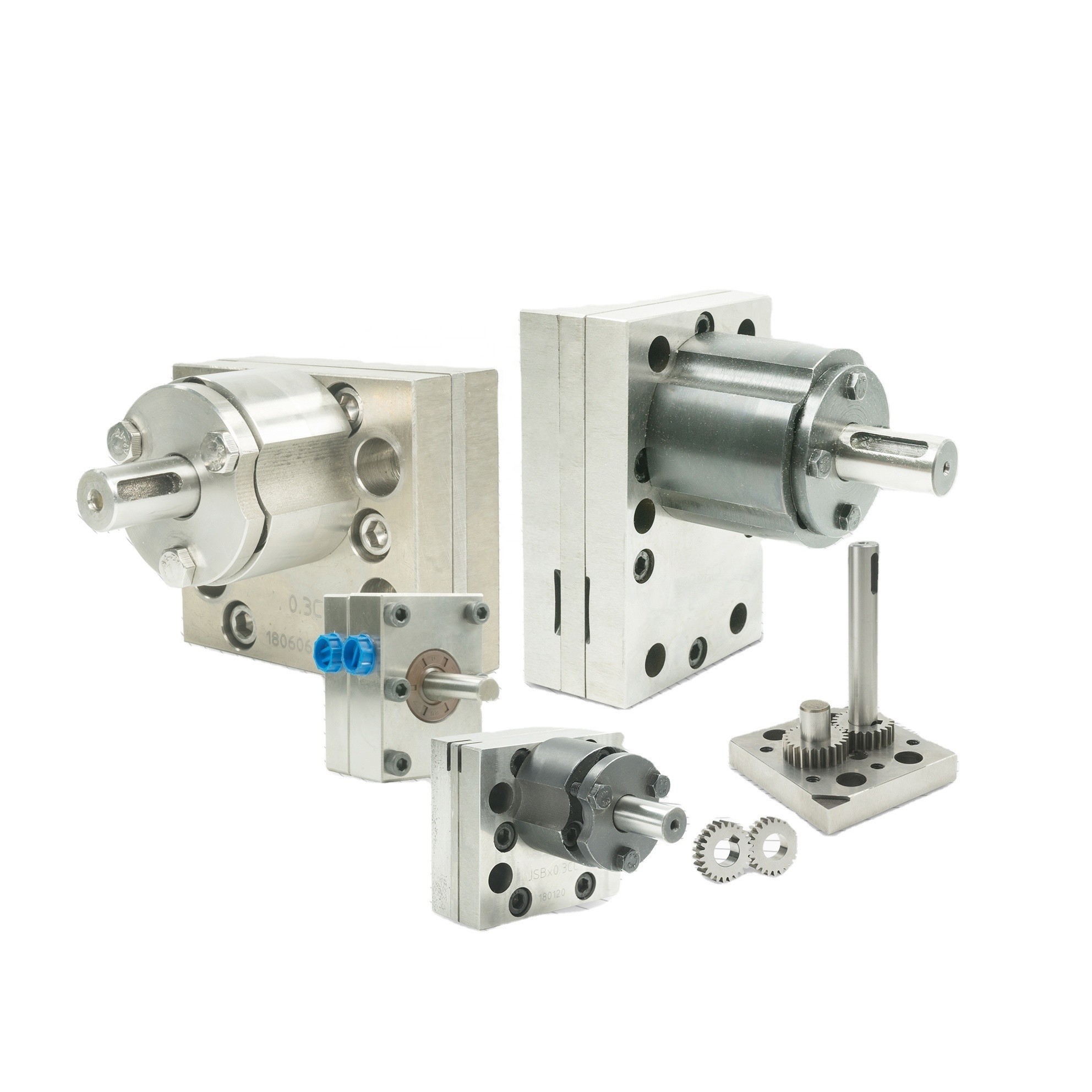

High Performance Epoxy Resin Glue Injection Hot Melt Gear Metering Pump
The dosing gear pump is composed of a pair of meshing gear.One of them is diving gear and the other is driven gear,The housing leaves a small gap, and when the gear rotates, the tooth is gradually disengaged from the meshing cavity.
The volume of the seal between the teeth increases, forming a partial vacuum, and the liquid is sucked into the suction chamber under the pressure difference,Every time the gear rotates, the volume of the liquid to be removed is constant, and the speed is controlled.Thereby calculating the flow of the gear metering pump...
FEATURES
The dosing gear pump with high accuracy,no pulsation;unique design,the the flexible drive connection between the motor and the metering pump eliminates the influence of the alignment error between the motor and the metering pump on the measurement accuracy, and also prevents the motor from transmitting the vibration to the dosing gear pump.
- High accuracy dosing and semi-automatic control
- More material for the more medium
- More sealing methods and good sealing performance
- Wide measurable range, minimum displacement 0.05cc
- High measurable medium viscosity, wide temperature range.
TECHNICAL
Rotating speed: 10-200 r/min
Main material: tool steel,9Cr18MoV,stellite,Hastelloy...
Seal: Combined seal;Machinery Seal;Magnetic seal...
Pressure: 2-30Mpa
Medium viscosity: <1000 thousand cp
Temperature: normal temperature<200C,High temperature 450C
Accuracy: 0.3%
Matching motor: servo motor;Inverter motor;Stepper motor;Brushless Motor
The gear metering pump composed by bottom cove;gear;gear cavity plate,roof cove,seal cover,Axle...
| Displacement | B Width(mm) | A Height(mm) | Pressure(Mpa) | Rotating speed(r/min) |
| 0.05cc | 36.94 | 65.94 | 0.1 | 15-50 |
| 0.15cc | 24 | 85 | 3 | 10-120 |
| 0.3cc | 28 | 85 | 3 | 10-150 |
| 0.6cc | 28 | 85 | 5 | 10-150 |
| 1.2cc | 32 | 90 | 5 | 10-150 |
| 2.4cc | 32 | 100 | 8 | 10-150 |
| 3.2cc | 47.6 | 103 | 8 | 10-200 |
| 3.6cc | 50 | 105 | 8 | 10-200 |
| 4cc | 38.2 | 120 | 8 | 10-200 |
| 6cc | 41.6 | 125 | 8 | 10-200 |
| 9cc | 46.4 | 130 | 8 | 10-200 |
| 12cc | 51.2 | 135 | 8 | 10-200 |
| 15cc | 56 | 140 | 8 | 10-200 |
| 20cc | 64 | 145 | 8 | 10-200 |
| 25cc | 72 | 150 | 8 | 10-200 |
| 30cc | 80 | 160 | 8 | 10-200 |
Note
:
Direction of rotation: clockwise from the axis of rotation
ACCESSORY SELECTION
The dosing gear pump should cooperate with accessory to work,different working conditions with different accessory.such as: PLC,servo motor,Reducer,Coupling,Frequency converter,Inverter motor ...
PLAN A (Without PLC)
Frequency converter+inverter motor+coupling+gear metering pump
PLAN B (With PLC)
PLC+Servo motor+reducer+coupling+gear metering pump
