Quick Details
-
Brand Name:
-
Macsensor
-
Model Number:
-
UL103
-
Material:
-
Polypropylene + glass fiber
-
Mode:
-
ultrasonic level sensor
-
Range:
-
2.5m, 5m, 10m, 15m, others on request
-
Output signal:
-
RS485+4~20mA; RS485+0~5V
-
Process connect port:
-
M68*2.0 male
-
Accuracy:
-
0.25%F.S, 0.5%F.S optional
-
Power supply:
-
10~30VDC(5~30VDC by customized)
-
Blind area:
-
150-300mm
-
Operating temperatures:
-
-10~50℃(-40~80℃ by customized)
-
IP class:
-
IP67
-
Beam angle:
-
12°
-
Product name:
-

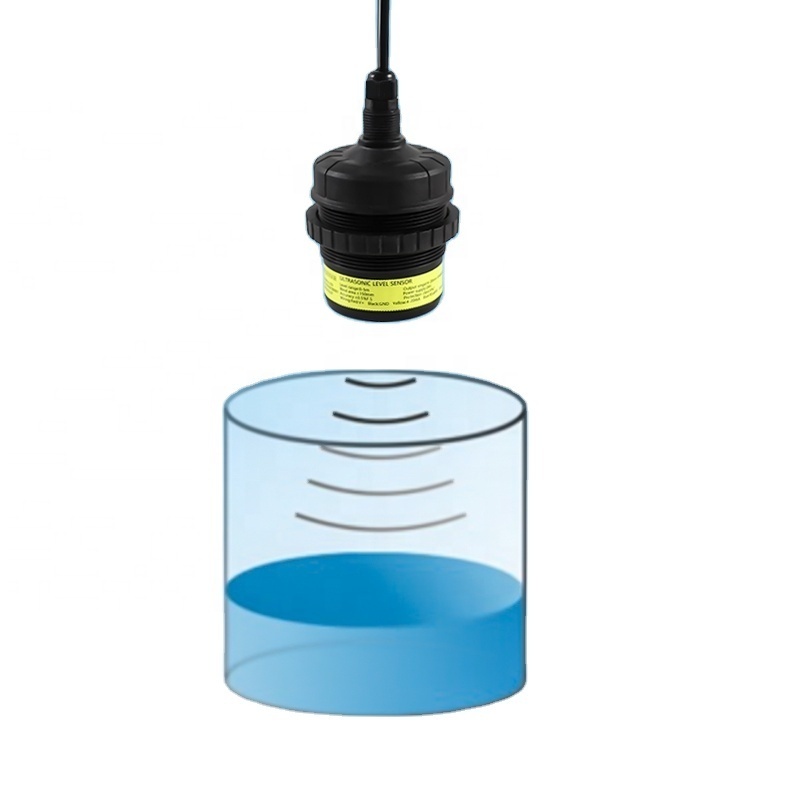

Non Contact Ultrasonic Level Sensor
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
12 months
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Macsensor
-
Model Number:
-
UL103
-
Material:
-
Polypropylene + glass fiber
-
Mode:
-
ultrasonic level sensor
-
Range:
-
2.5m, 5m, 10m, 15m, others on request
-
Output signal:
-
RS485+4~20mA; RS485+0~5V
-
Process connect port:
-
M68*2.0 male
-
Accuracy:
-
0.25%F.S, 0.5%F.S optional
-
Power supply:
-
10~30VDC(5~30VDC by customized)
-
Blind area:
-
150-300mm
-
Operating temperatures:
-
-10~50℃(-40~80℃ by customized)
-
IP class:
-
IP67
-
Beam angle:
-
12°
-
Product name:
-
Non Contact Ultrasonic Level Sensor
Explosion Proof Ultraschall 420madiesel Dredge Slurry Water Level Control Ultrasound Non Contact Ultrasonic Level Sensor
Product Description
Specifications of UL103 Ultrasonic Level Transmitters
| Measuring range | 2.5m, 5m, 10m, others on request |
| Blind area |
4-20mA(2.5m/5m)≤150mm
0-5V(2.5m/5m)≤200mm 4-20mA/0-5V(10m)≤300mm |
| Accuracy | 0.25%F.S, 0.5%F.S optional |
| Beam angle | 12° |
| Measuring mode | Distance mode(default), or level mode optional |
| Output signal | RS485+4~20mA; RS485+0~5V |
| Power supply | 10~30VDC(5~30VDC by customized) |
| Current | ≤100mA |
| Working temperature | -10~50℃(-40~80℃ by customized) |
| Installation Mode | Nut clamping fixed installation |
| or screw-in installation | |
| Response time | 0.1s~10s(adjustable) |
| Product material | Polypropylene + glass fiber |
| IP Rating | IP67 |
Wide application in Wastewater Treatment Plant Rivers and Lakes Chemical Storage Tank Beverage Factory Latex Factory Organic Material, etc.
