KA-3 dual 12 inch 2 way audio line array system outdoor waterproof speaker

KA-3 dual 12 inch 2 way audio line array system outdoor waterproof speaker

FOB Reference Price: Get Latest Price

≥1 Pieces

US $994

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KA-3

Dimension:: 950 x 402 x 355/286 mm

Output Power:: 450w

Product Name:: Professional Speaker

Usable bandwidth (-10 dB):: 42Hz-20kHz

Components:: LF: 2X12" HF: 1X4"

Horn material:: Neodymium magnet

Cabinet:: FIrst grade Russian birch plywood

Rigging components:: High grade steel with anti-corrosion coating

Maximum SPL:: 143 dB

Impedence:: 8Ω

Weight:: 43 kg / 95 lb

Quick Details

Warranty:: 2 years

Place of Origin:: Guangdong, China

Brand Name:: Sinbosen

Model Number:: KA-3

Dimension:: 950 x 402 x 355/286 mm

Output Power:: 450w

Product Name:: Professional Speaker

Usable bandwidth (-10 dB):: 42Hz-20kHz

Components:: LF: 2X12" HF: 1X4"

Horn material:: Neodymium magnet

Cabinet:: FIrst grade Russian birch plywood

Rigging components:: High grade steel with anti-corrosion coating

Maximum SPL:: 143 dB

Impedence:: 8Ω

Weight:: 43 kg / 95 lb

Function Description

Product Name	KA-3 2 way audio line array system
Usable bandwidth (-10 dB)	42 Hz – 20 kHz
Maximum SPL1	143 dB
Nominal directivity (-6 dB)	Horizontal: 70° / 110° symmetric or 90° asymmetric
Nominal directivity (-6 dB)		vertical: depending on number of elements and array curvature
Transducers	LF: 2 × 12″ neodymium cone driver
Transducers		HF: 1 × 4″ diaphragm compression driver, neodymium
Rigging and handling	Flush-fitting 4-point rigging system
		2 handles
		inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Nominal impedance	LF : 8 Ω
Nominal impedance		HF : 8 Ω

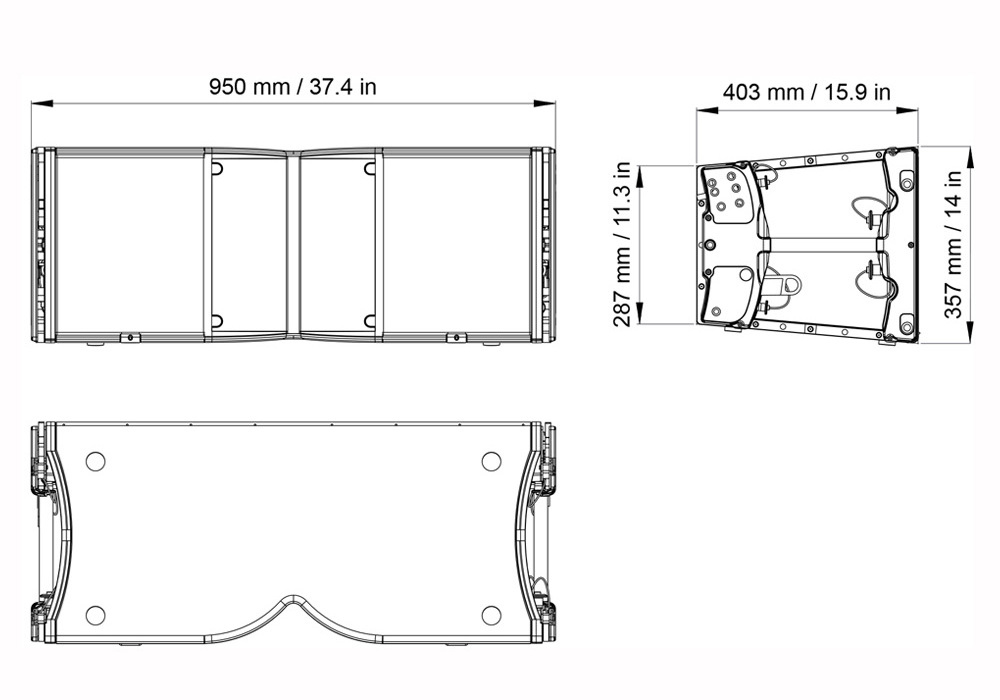

Dimension	950 x 402 x 355/286 mm 37.4 x 15.8 x 13.9/11.2in
Weight (net)	43 kg / 95 lb

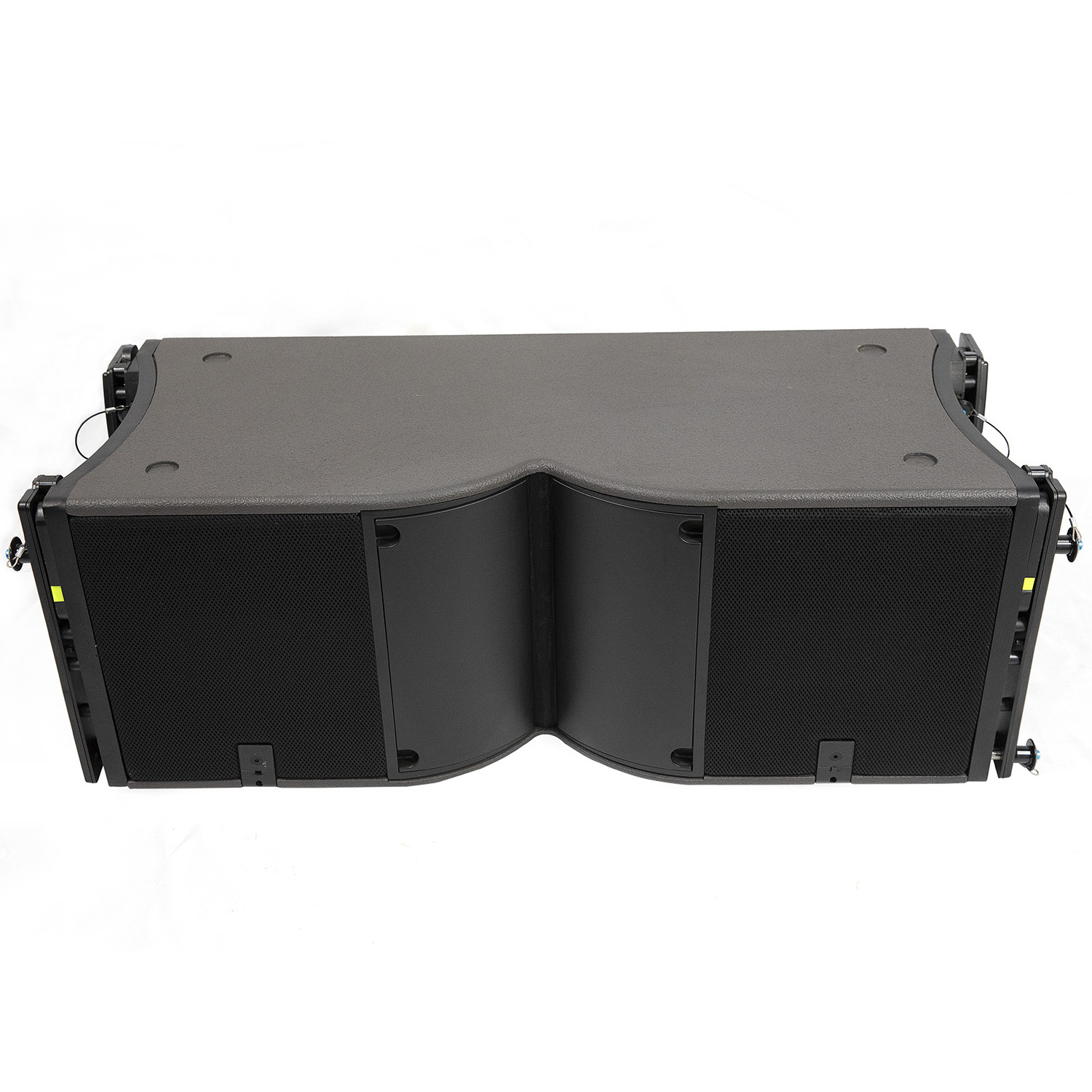

KA-3 dual 12inch 2 way audio line array system.

Made of first grade Russian birch plywood.

Built-in two 8Ω 450W 12 inch neodymium woofers and one 8Ω 140W 4 inch tweeter.

The inter-enclosure angles can be adjusted and you can replace speakers without disassembly!

Details Images

You will see this yellow fluorescent label when the speaker is not hung correctly. When hung correctly, you will not see this yellow fluorescent label.

When the holes are aligned and fixed, the speaker will automatically adjust the angle.

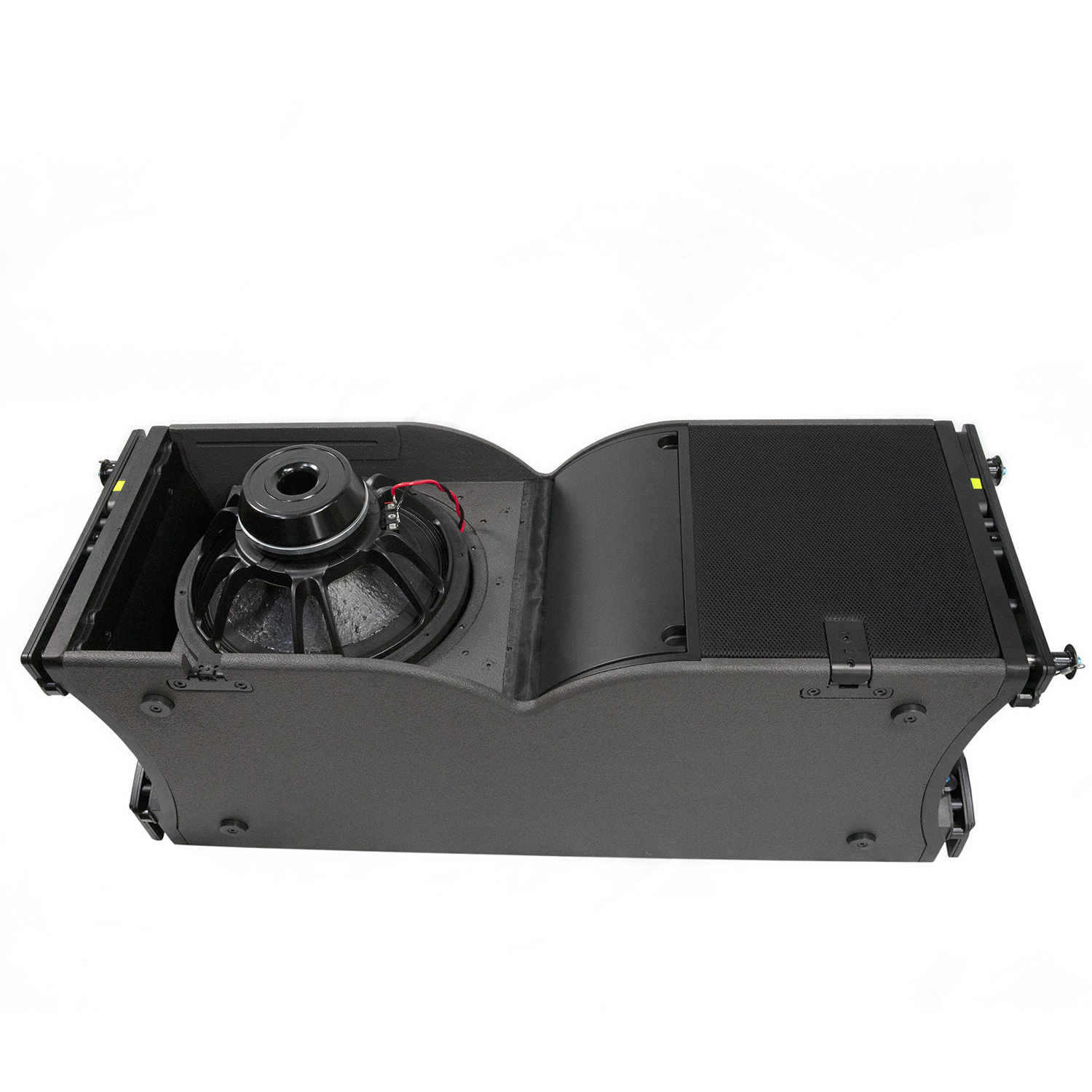

High quality neodymium magnetic speaker
