Quick Details
-
Brand Name:
-
TIDER
-
Fork Length:
-
1070mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
2720 * 1225 * 2090 Mm
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Overseas third-party support available, Field maintenance and repair service
-
Product Name:
-

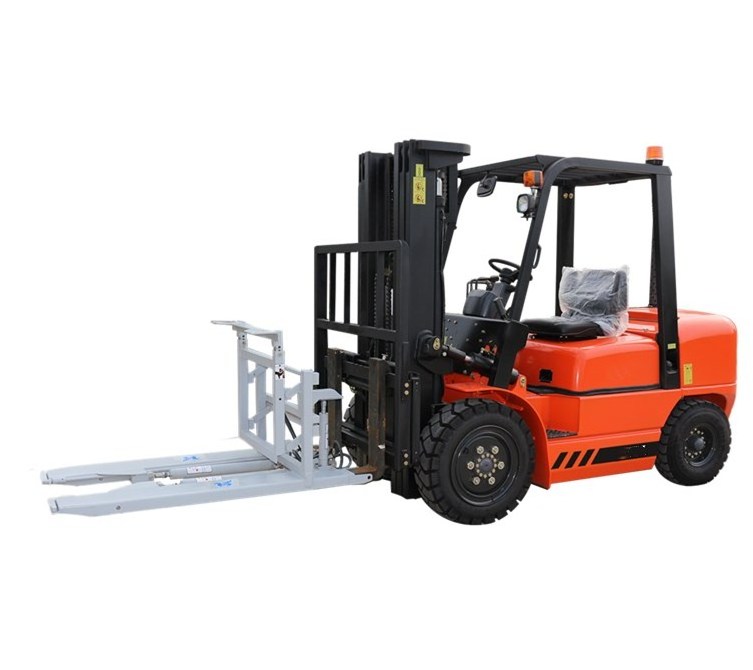

TIDER 3 ton diesel forklift with forklift push pull attachment
-
Color:
-
customized
-
Item:
-
3 ton forklift truck
-
Power type:
-
diesel power
-
Feature:
-
forklift 3 ton
-
Weight:
-
4300KGS
-
Engine:
-
Isuzu engine/Xinchai engine
-
Mast:
-
3 Stage / 2 Stage
-
Certification:
-
CE/ISO9001
Quick Details
-
Min. Lifting Height:
-
0
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TIDER
-
Fork Length:
-
1070mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
2720 * 1225 * 2090 Mm
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Overseas third-party support available, Field maintenance and repair service
-
Product Name:
-
TIDER 3 ton diesel forklift with forklift push pull attachment
-
Color:
-
customized
-
Item:
-
3 ton forklift truck
-
Power type:
-
diesel power
-
Feature:
-
forklift 3 ton
-
Weight:
-
4300KGS
-
Engine:
-
Isuzu engine/Xinchai engine
-
Mast:
-
3 Stage / 2 Stage
-
Certification:
-
CE/ISO9001
TIDER
3 ton forklift push pull pusher forklift with different attachment available
Application
Our High quality fork lift diesel 3 ton forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The Technical Parameters of
3 ton forklift push pull pusher forklift with different attachment available
|
Specifications Manufacture
|
|
TIDER
|
|
Model
|
|
FD30
|
|
Power Type
|
|
Diesel type
|
|
Rated Capacity
|
kg
|
3000
|
|
self weight
|
kg
|
4300
|
|
Dimensions Max. Lifting Height
|
mm
|
3000
|
|
Load Centre
|
mm
|
500
|
|
Fork Size(L*W*T)
|
mm
|
1070*125*45
|
|
Mast Extended Height(With backrest)
|
mm
|
4160
|
|
Mast Lowered Height
|
mm
|
2115
|
|
Overhead Guard Heigh
|
mm
|
2090
|
|
Turning Radius(Outside)
|
mm
|
2440
|
|
Min. Insecting aisle
|
mm
|
2490
|
|
Performance Speed Travel(Empty load)
|
km/h
|
19
|
|
Lifting(Full load)
|
mm/s
|
440
|
|
Max.Gradeability
|
%
|
20
|
|
Wheel & Tires Tire Front
|
mm
|
28*9-15-12PR
|
|
Rear tire
|
mm
|
6.50-10-10PR
|
|
Ground Clearance(Bottom of mast)
|
mm
|
135
|
|
Wheelbase
|
mm
|
1700
|
|
Power Battery Voltage/Capacity
|
V/Ah
|
12/80
|
|
Engine Model
|
|
ISUZU C240 / Xinchai C490
|
|
Rated Output
|
/r.p.m kw
|
35.4/2500
|
|
Rated Torque
|
/r.p.m N.m
|
139/1800
|
|
No. of Cylinder
|
|
4
|
|
Bore*Stroke
|
mm
|
86*102
|
|
Displacement
|
cc
|
2369
|
|
Fuel Tank Capacity
|
L
|
60
|
|
Transmission Type
|
|
Power shift
|
|
Stage(FWD/RVS)
|
|
1/1
|
TIDER 3 ton forklift push pull pusher forklift with different attachment available
1.Chinese Engine
2. Hydraulic / Automatic Transmission
3. Duplex Mast Lifting Height 3000mm
4. Pneumatic Tires
5. 1070mm Fork Length
Optional Equipments
1.Janpan engine ISUZU or Mitsubishi
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positiner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.
Production Quality Control
|
Size Chart (cm)
|
|
|
||
|
1cm=0.3937inch
|
|
|
||
|
Forklift truck
|
3 ton forkllift (FD30)
|
|
||
|
Overall length
|
inch
|
107.5
|
||
|
Overall width
|
inch
|
48.2
|
||
|
Overall height
|
inch
|
83.3
|
||
|
Fork size
|
inch
|
42.1*4.9*1.8
|
||
|
Other fork size is available
|
|
|
||
Forklift Spare Parts As Gift
Various forklift spare parts as gift shipped together with forklift
After-services:
Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services. All the products purchased from Tider enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
TIDER 3 ton forklift push pull pusher forklift with different attachment available
1. Why choose us?
As a manufacturer, Tider industrial is committed to offer not only products with
high quality
and performance and
competitive price
, but also in-time delivery and
comprehensive 7/24 after-sale services
.
2. What is the product range of our factory ?
Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the
ISO9001 Quality System
and have acquired
CE certificate. EPA approval
will be available if needed.
5. How about our delivery time?
Usually it will take
15 to 30 days
after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tider industrial can provide customized products according to customers' requirements, both
OEM and ODM
are acceptable.
