Quick Details
-
Name:
-
High Speed semi-automatic Handle rope shoelace Tipping machine
-
Product:
-
Shoelace
-
Application:
-
Shoelace tipping machine
-
Certificate:
-
CE ISO
-
Payment Terms:
-
30%TT
-
Material:
-
Sepcial Cast Iron
-
Speed:
-
220-330 Rpm
-
Voltage:
-
380v/50Hz
-
Spindle No:
-
4
-
Type:
-
Automatic
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROPENET
-
Weight (KG):
-
230 KG
-
Name:
-
High Speed semi-automatic Handle rope shoelace Tipping machine
-
Product:
-
Shoelace
-
Application:
-
Shoelace tipping machine
-
Certificate:
-
CE ISO
-
Payment Terms:
-
30%TT
-
Material:
-
Sepcial Cast Iron
-
Speed:
-
220-330 Rpm
-
Voltage:
-
380v/50Hz
-
Spindle No:
-
4
-
Type:
-
Automatic
Products Description

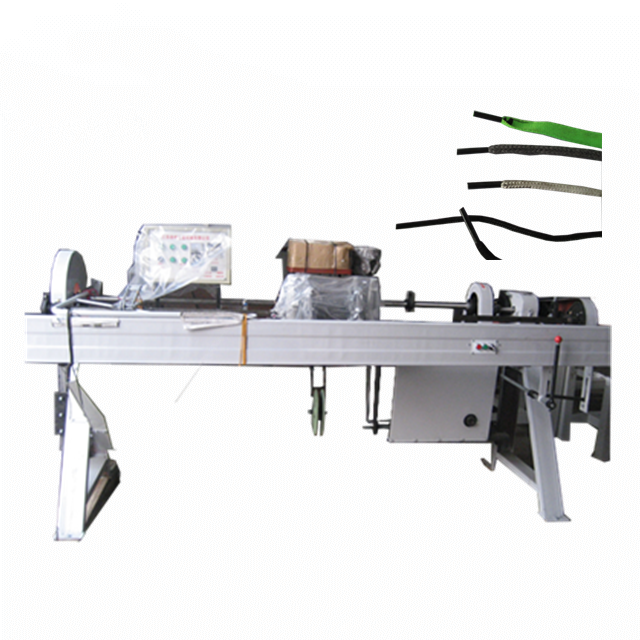

High Speed semi-automatic Handle rope shoelace Tipping machine
1: It is widely used for tipping cords,shoelaces,ropes ect.
2:it is easy to produce different sizes of shoelace by changing the gear
3:Adopting Frequency control,our machines possess auto-stop sysem,wrapping center yarn feeding
synchronously,and that can achievelow waste and high productivity
4:with high quality work and reasonable structures,it runs stably in long lifetime.
5:with good designation,easy and security opeartion,the maintainance of it is eay and convienient.
6:Adopting frequency control motor is easy to control the speed and protect the load
7:hanging industrial ceramic eyelets at the yarn offtrack point to instead peforation work and it is easy
to change the bobbin and adjust the spring for the using of new type spindle.
Main Features :
Full-automatic tipping machine is uniquely equipped with an automatic take-up device. It is stable running and high efficient.
1. deliver the shoelace automatically
2. tip the shoelace automatically
3. it achieves the automatically operation, and improves the efficiency greatly.
4. energy-saving and reduction of cost,1000pair of shoelace consume 125g acetone,
5. output: 4000-6000 per hours
6. length of shoelace:30cm-200cm
7. motor:1.5KV three phase
8. adhesive acetone: CH3 ,COCH3
Specification
|
Model
|
PT01
|
PT02
|
PT03
|
|
Min. Length of lace
|
35 cm
|
35 cm
|
35 cm
|
|
Max. Length of lace
|
100 cm
|
150 cm
|
200 cm
|
|
Output
|
60 pcs/min
|
60 pcs/min
|
60 pcs/min
|
|
Motor
|
1.5 KW
|
1.5 KW
|
1.5 KW
|
|
Electric heating
|
40° - 45°
|
40° - 45°
|
40° - 45°
|
|
Machine size
|
191×133×162 cm
|
250×140×166 cm
|
312×140×166 cm
|
