- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
MD-550
-
brightness:
-
700cd/m2
-
Net Weight(approximate):
-
33.5kg
-
VGA/DVI Resolution Ratio:
-
640*480,800*600,1024*768,1280*1024,
-
narrow gap:
-
narrownest :6.5MM
-
Color Components:
-
16.7M
-
Visual Angle:
-
Horizontal 178/Vertical178
-
Contract Ratio:
-
3000:1
-
Dimension of Machine Frame(±1mm):
-
(Width)1215.3mm*(Height)686.1mm
-
Input Port:
-
3*BNC, 1*VGA, 1*DVI,1*HD MI
-
product name:
-
55 inch sled tv wall
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Online support, Free spare parts, Video technical support, Field maintenance and repair service, Field installation, commissioning and training
-
Type:
-
TFT
-
Brightness:
-
700cd
-
Viewing Angle:
-
89/89/89/89
-
Response Time:
-
5ms
-
Input Voltage:
-
110v 240v
-
Pixel Pitch:
-
0.521*0.521
-
Contrast Ratio:
-
5000:1
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
Genevision
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MD-550
-
brightness:
-
700cd/m2
-
Net Weight(approximate):
-
33.5kg
-
VGA/DVI Resolution Ratio:
-
640*480,800*600,1024*768,1280*1024,
-
narrow gap:
-
narrownest :6.5MM
-
Color Components:
-
16.7M
-
Visual Angle:
-
Horizontal 178/Vertical178
-
Contract Ratio:
-
3000:1
-
Dimension of Machine Frame(±1mm):
-
(Width)1215.3mm*(Height)686.1mm
-
Input Port:
-
3*BNC, 1*VGA, 1*DVI,1*HD MI
-
product name:
-
55 inch sled tv wall
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Online support, Free spare parts, Video technical support, Field maintenance and repair service, Field installation, commissioning and training
-
Type:
-
TFT
-
Brightness:
-
700cd
-
Viewing Angle:
-
89/89/89/89
-
Response Time:
-
5ms
-
Input Voltage:
-
110v 240v
-
Pixel Pitch:
-
0.521*0.521
-
Contrast Ratio:
-
5000:1

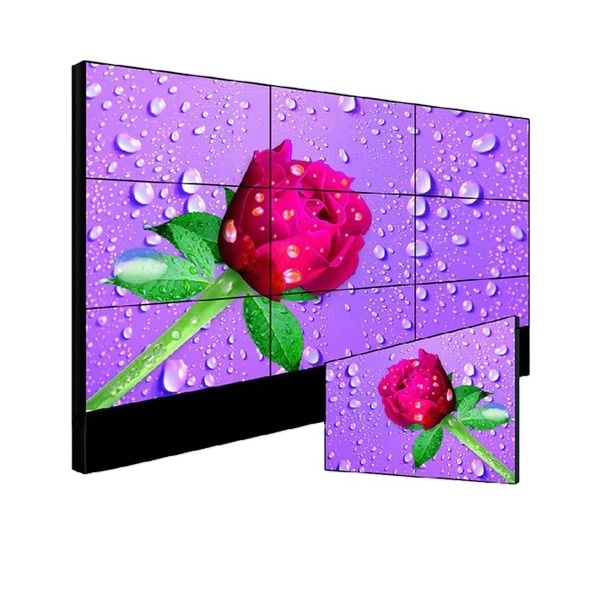

55 inch wall mounted led tv wall led video wall display price (MD-550)
Features:
1.LED-DID Industrial HD&High-brightness narrow edge led tv wall
2.Narrow Edge Design: Minimum 1.8mm led video wall display
3.High Resolution Ratio: 1920*1080
4.High-brightness: 700cd/sqm
5.Super wide visual angle:178(H)/178(V).
Description:
Genevision DID broadcast monitor chooses gennum project. , DID technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and
television, the product supports audio embedded solution, at the same time , supports the highest resolution to 1080 p 60 hz, which should be more extensive.
Performance Features as follows:
Support a variety of signal ports.
Built-in splicing module, Support splice function
Support Creating one window(PIP) across the screen,roaming service,scaling,PIP
Support matrix joint control.
Unique DNX motion supplement image processing technology,
Dynamic image without motion trail
Splicing image processing RS-232(RJ-45)loop-circuit input/output.
Input by remote control with wire,mobile receiver head.
Note:such mode does not support1080PSF24HZ,1080I48HZ,720P24HZ,720P25HZ,
720P30HZ.
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
|
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools; |
|
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Technical Parameters:
|
Specification/Model |
MD-550 |
|
Panel Size |
55" LED-DID |
|
Screen Aspect Ratio |
16:9 |
|
Visual Angle |
Horizontal 178/Vertical178 |
|
Brightness |
700cd/sqm |
|
Contract Ratio |
3000:1 |
|
Resolution Ratio |
1920*1080 |
|
Color Components |
16.7M |
|
Response Time |
8ms |
|
Power Consumption of Stand-alone |
250W |
|
Power Supply |
Input:AC110-220V-50/60Hz |
|
Service Life of Panel |
60000Hours |
|
Dimension of Machine Frame(±1mm) |
(Width)1215.3mm*(Height)686.1mm |
|
Size of Shell Frame(±1mm) |
Left side3.7mm/right side1.8mm/ top3.7mm/bottom1.8mm |
|
Panel Display Area |
(Width)1213.6mm*(Height)684.4mm |
|
Shell Color |
Black |
|
Installation |
Wall-mounted |
|
Net Weight(approximate) |
33.5kg |
|
Working Humidity |
10%-90% |
|
Working Temp. |
0-60 Celsius degree |
|
Input Port |
3*BNC, 1*VGA, 1*DVI,1*HD MI |
|
VGA/DVI Resolution Ratio |
640*480,800*600,1024*768,1280*1024, 1600*1200, 1920*1080 |
|
HD MI Resolution Ratio HD MI |
480I,480P,576I,720P,1080I,1080P |
|
Output Port |
1 Video output(BNC) |
|
Split Screen/PIP Mode |
Two signals image or PIP |
|
Splice Function |
Multiscreen Splice Function(image processing Function) |
Competitive Advantage:
D igital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD . Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.
Unique DNX motion supplement image processing technology, Dynamic image without motion
trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.
Tag: LCD Video Wall, LCD Wall, Display Wall, Folding Display Wall,LCD Display Video Wal
