Quick Details
-
Brand Name:
-
SINOWAY
-
Model Number:
-
SWD320Y
-
Dimension(Long * Breadth * High):
-
6880*4130*3640mm
-
Engine power:
-
257KW
-
Track width:
-
560mm
-
Color:
-
Yellow
-
Blade type:
-
Straight
-
Blade width:
-
4130mm
-
Blade height:
-
1590mm
-
Max.digging depth:
-
560mm
-
Pump type:
-
Double vane pump
-
Control valve:
-
Hydraulic operated, servo control
-
Fuel tank capacity:
-
600L
Quick Details
-
Machine Weight:
-
36ton
-
Dozing Capacity:
-
10 m3
-
Place of Origin:
-
China
-
Brand Name:
-
SINOWAY
-
Model Number:
-
SWD320Y
-
Dimension(Long * Breadth * High):
-
6880*4130*3640mm
-
Engine power:
-
257KW
-
Track width:
-
560mm
-
Color:
-
Yellow
-
Blade type:
-
Straight
-
Blade width:
-
4130mm
-
Blade height:
-
1590mm
-
Max.digging depth:
-
560mm
-
Pump type:
-
Double vane pump
-
Control valve:
-
Hydraulic operated, servo control
-
Fuel tank capacity:
-
600L
Main Features
Optimal design in overall appearance and structure strength.
Powerful Cummins engine meeting Euro II off-road emission standard adopted for high power rise, big output torque, fuel saving and excellent reliability.
Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting.
3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.
The hexagonal cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power
transmission, and increased life.
Blade is more durable and capacious. Alarming & monitoring system is efficient and reliable.
Centralized pressure checking easy for malfunction diagnosis. Ergonomics design in controls to reduce operator's fatigue.
Use automatic dust discharge type air precleaner for more adaptable in working in dust surroundings.Optimal design in overall appearance and structure strength.
Powerful Cummins engine meeting Euro II off-road emission standard adopted for high power rise, big output torque, fuel saving and excellent reliability.
Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting.
3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.
The hexagonal cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power
transmission, and increased life.
Blade is more durable and capacious. Alarming & monitoring system is efficient and reliable.
Centralized pressure checking easy for malfunction diagnosis. Ergonomics design in controls to reduce operator's fatigue.
Use automatic dust discharge type air precleaner for more adaptable in working in dust surroundings.
Powerful Cummins engine meeting Euro II off-road emission standard adopted for high power rise, big output torque, fuel saving and excellent reliability.
Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting.
3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.
The hexagonal cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power
transmission, and increased life.
Blade is more durable and capacious. Alarming & monitoring system is efficient and reliable.
Centralized pressure checking easy for malfunction diagnosis. Ergonomics design in controls to reduce operator's fatigue.
Use automatic dust discharge type air precleaner for more adaptable in working in dust surroundings.Optimal design in overall appearance and structure strength.
Powerful Cummins engine meeting Euro II off-road emission standard adopted for high power rise, big output torque, fuel saving and excellent reliability.
Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting.
3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.
The hexagonal cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power
transmission, and increased life.
Blade is more durable and capacious. Alarming & monitoring system is efficient and reliable.
Centralized pressure checking easy for malfunction diagnosis. Ergonomics design in controls to reduce operator's fatigue.
Use automatic dust discharge type air precleaner for more adaptable in working in dust surroundings.

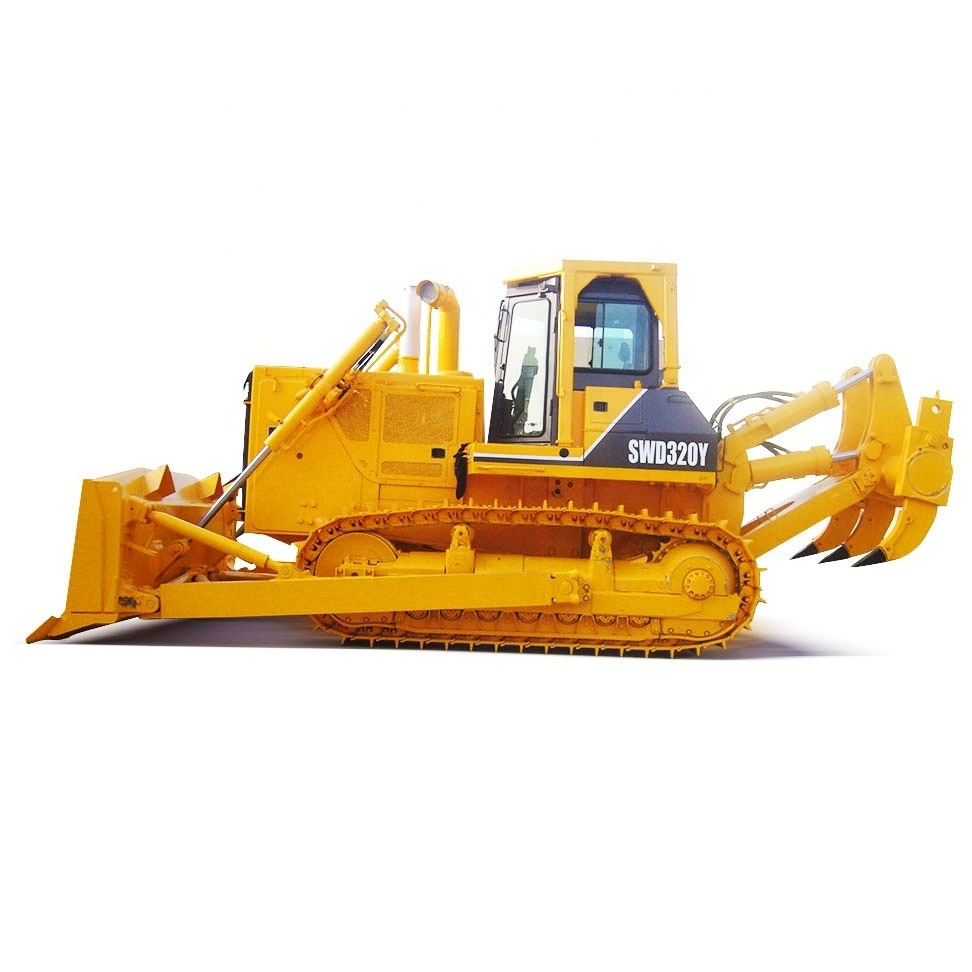

Product Show
Specification
|
Engine
|
|
|
Model
|
Cummins NTA855
|
|
Type
|
Six-cylinder, water cooled, turbocharged, mechanical injection
|
|
Rated power
|
257KW
|
|
Main Technical Specification
|
|
|
Operating weight
|
35900kg
|
|
Max. Tractive force
|
281KN
|
|
Blade type
|
Straight
|
|
Blade dimension(W x H)
|
4130mm x 1590mm
|
|
Blade capacity
|
8.0m3
|
|
Max. Digging depth
|
560mm
|
|
Max. Lifting height
|
1560mm
|
|
Tilting angle
|
14°
|
|
Travelling
|
|
|
Travelling speed
|
F3: 3.6km/h;6.6km/h;11.5km/h
|
|
|
R3: 4.4km/h; 7.8km/h;13.5km/h
|
|
Grade-ability
|
58%
|
|
Ground pressure
|
0. 094MPa
|
|
Dimension
|
|
|
Overall size (L x W x H)
|
6880mm x 4130mm x 3640mm
|
|
Track gauge
|
228.6mm
|
|
Track length on ground
|
3150mm
|
|
Track width
|
560mm
|
|
Ground clearance
|
500mm
|
|
Service Capacities
|
|
|
Fuel tank
|
600L
|
|
Hydraulic oil tank
|
164L
|
