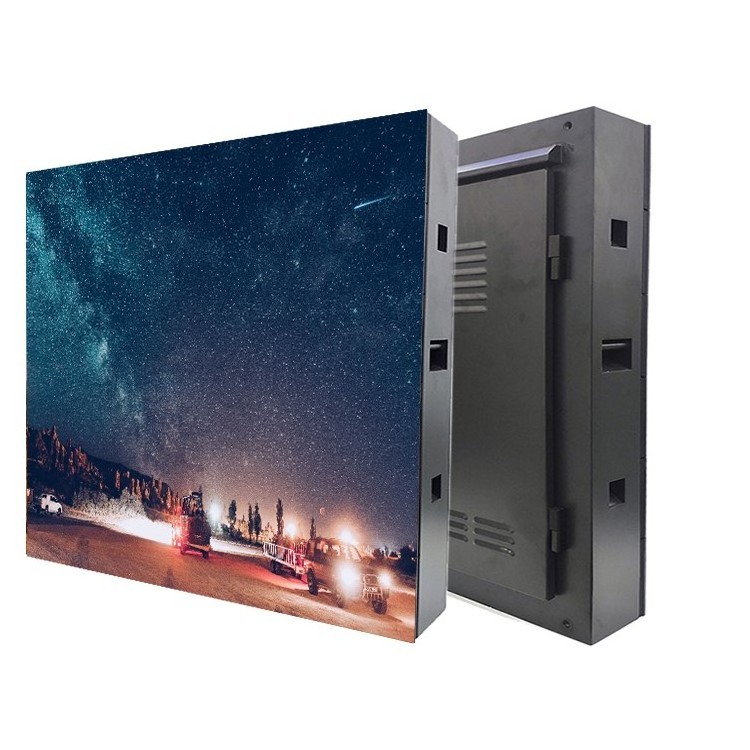

Ultra Narrow pixel pitch LED panel for Customized video wall
- Product Details
- {{item.text}}
Quick Details
-
Panel Size:
-
256*128
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HRSIM-P2
-
Product name:
-
Narrow Pitch LED Display
-
Model:
-
HRSIM-P2
-
Pixel pitch:
-
2MM
-
Encapsulation:
-
SMD1515
-
Module size:
-
256*128
-
Pixel density:
-
250,000dots/㎡
-
Module/Pixel resolution:
-
128*64
-
Average power:
-
20W
-
Weight:
-
0.5KG
-
Scan mode:
-
1/32S
-
Pixel Pitch:
-
2mm
Quick Details
-
Application:
-
Advertising
-
Brand Name:
-
HR
-
Color:
-
Full color
-
Panel Size:
-
256*128
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HRSIM-P2
-
Product name:
-
Narrow Pitch LED Display
-
Model:
-
HRSIM-P2
-
Pixel pitch:
-
2MM
-
Encapsulation:
-
SMD1515
-
Module size:
-
256*128
-
Pixel density:
-
250,000dots/㎡
-
Module/Pixel resolution:
-
128*64
-
Average power:
-
20W
-
Weight:
-
0.5KG
-
Scan mode:
-
1/32S
-
Pixel Pitch:
-
2mm
HRSIM- P0.93 / P1.25 / P1.66 / P2 (Indoor series) in Stock
|
Model
|
HRSIM-P0.93
|
HRSIM-P1.25
|
HRSIM-P1.66
|
HRSIM-P2
|
|
Pixel pitch
|
0.9375MM
|
1.25MM
|
1.667MM
|
2MM
|
|
Encapsulation
|
Mini0.9
|
SMD1010
|
SMD1010
|
SMD1515
|
|
Module size
|
150*168.75mm
|
200*150
|
200*150
|
256*128
|
|
Pixel density
|
1,137,777dots/㎡
|
640,000dots/㎡
|
360,000dots/㎡
|
250,000dots/㎡
|
|
Pixel configuration
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
|
Pixel resolution
|
160*180
|
160*120
|
120*90
|
128*64
|
|
Average power
|
25W
|
25W
|
25W
|
20W
|
|
Weight
|
0.2KG
|
0.2KG
|
0.19KG
|
0.5KG
|
|
Drive type
|
Constant current drive
|
Constant current drive
|
Constant current drive
|
Constant current drive
|
|
Scan mode
|
1/30S
|
1/30S
|
1/30S
|
1/32S
|
|
Refresh frequency
|
3840HZ/S
|
3840HZ/S
|
≥3840HZ/S
|
1920HZ/S
|
|
Brightness (cd/m²)
|
600cd/㎡
|
600-800cd/㎡
|
600-800cd/㎡
|
1000cd/㎡
|
|
Life-span
|
50,000Hours
|
100,000Hours
|
100,000Hours
|
100,000Hours
|
|
Viewing angle
|
140°/120°
|
140°/120°
|
Horiaontal>170° Vertical>120°
|
Horiaontal>170° Vertical>120°
|
|
Input voltage
|
AC220V-AC250V
|
AC220V-AC250V
|
220VAC/50HZ±10%
|
220VAC/50HZ±10%
|
