Quick Details
-
Production Capacity:
-
50sets/month
-
Power:
-
4.5Kw
-
Dimension(L*W*H):
-
5300*930*1700mm
-
Machine Type:
-
UPVC Window welding machine
-
Power supply:
-
AC 220V 50Hz
-
Total Power:
-
4.5kw
-
Work Air Pressure:
-
0.5-0.8Mpa
-
Air consumption:
-
200L/min
-
Welding material length:
-
380-4500mm
-
Welding material height:
-
20-120mm
-
Welding material width:
-
max 120mm
-
Overall:
-
5300*930*1700mm
-
Clean type:
-
Inner/outer/both surface
-
Certification:
-
ISO9001
Quick Details
-
Brand Name:
-
Hisena
-
Voltage:
-
AC 220V 50Hz
-
Weight:
-
1500Kg
-
Production Capacity:
-
50sets/month
-
Power:
-
4.5Kw
-
Dimension(L*W*H):
-
5300*930*1700mm
-
Machine Type:
-
UPVC Window welding machine
-
Power supply:
-
AC 220V 50Hz
-
Total Power:
-
4.5kw
-
Work Air Pressure:
-
0.5-0.8Mpa
-
Air consumption:
-
200L/min
-
Welding material length:
-
380-4500mm
-
Welding material height:
-
20-120mm
-
Welding material width:
-
max 120mm
-
Overall:
-
5300*930*1700mm
-
Clean type:
-
Inner/outer/both surface
-
Certification:
-
ISO9001
Product Description
Main Features

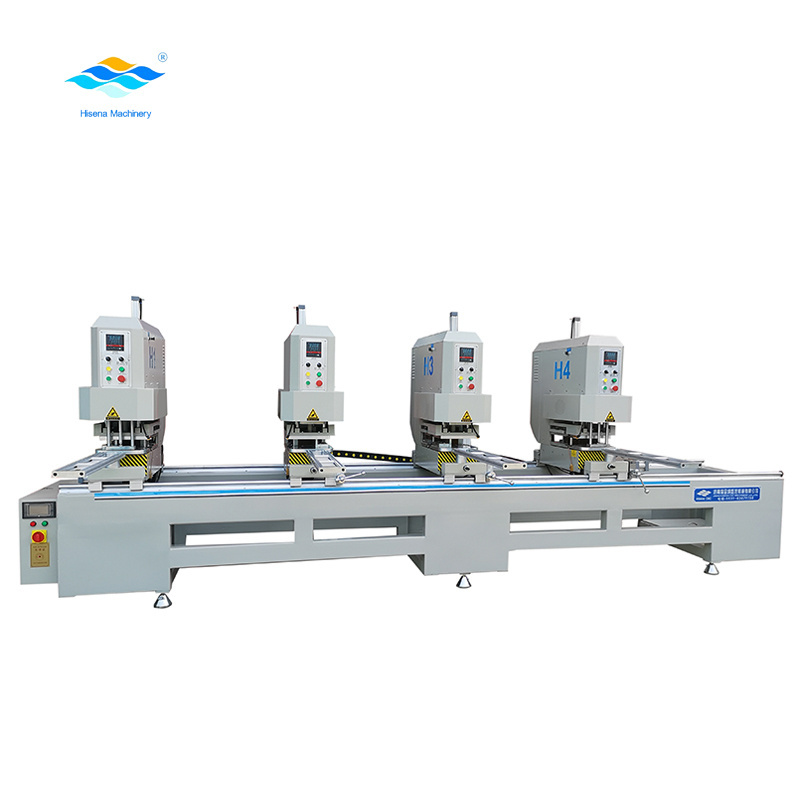

1 Used for high-end colorful(filmed type /transfer type/two-color extrusion type/spraying type)Upvc and common white Upvc type window door frame double surface cleaning welding.
2 Adjust the melt temperature/melt time/cooling time for different type profile.
3 Each head have
two cleaning tools
.To make the welding surface smooth,after welding,those tools
automatic cleaning the welding surface
.
4 Adopts PLC system,increase extra pinch device,to make welding stable.welding frame corner high strength.
Technical Parameters
|
Power
|
220V50Hz
|
Dimension
|
5300mm x 930mm x 1700mm
|
|
Input power
|
4.5KW
|
Weight
|
1500kg
|
|
Working pressure
|
0.5-0.8MPa
|
Melding time
|
0-99s
|
|
Air consumption
|
200L/min
|
Melting temperature
|
0-399℃
|
|
welding width
|
max120mm
|
Melt quantity
|
6±1mm
|
|
welding height
|
20-120mm
|
Clean type
|
Both surface
|
|
welding length
|
380-4500mm
|
|
|
Detailed Images
Finished Effect
