Quick Details
-
Brand Name:
-
Sunpoc
-
Model Number:
-
SUT-320
-
Product name:
-
Thickness Gauge
-
Model:
-
SUT 320
-
Material:
-
Aluminum Alloy
-
Application:
-
Measuering
-
Keyword:
-
GUIZHOU SUNPOC Good price SUT 320 thickness gauge
-
Type:
-
Good price GUIZHOU SUNPOC SUT 320 painting thickness gauge
-
Size:
-
200x200mm -- 4000x8000mm
-
Color:
-
White
-
Usage:
-
testing hardness
-
Feature:
-
Accurate Measurement
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guizhou, China
-
Brand Name:
-
Sunpoc
-
Model Number:
-
SUT-320
-
Product name:
-
Thickness Gauge
-
Model:
-
SUT 320
-
Material:
-
Aluminum Alloy
-
Application:
-
Measuering
-
Keyword:
-
GUIZHOU SUNPOC Good price SUT 320 thickness gauge
-
Type:
-
Good price GUIZHOU SUNPOC SUT 320 painting thickness gauge
-
Size:
-
200x200mm -- 4000x8000mm
-
Color:
-
White
-
Usage:
-
testing hardness
-
Feature:
-
Accurate Measurement
Metal material thickness tester coating and material thickness gauges for bad environment
Product Description

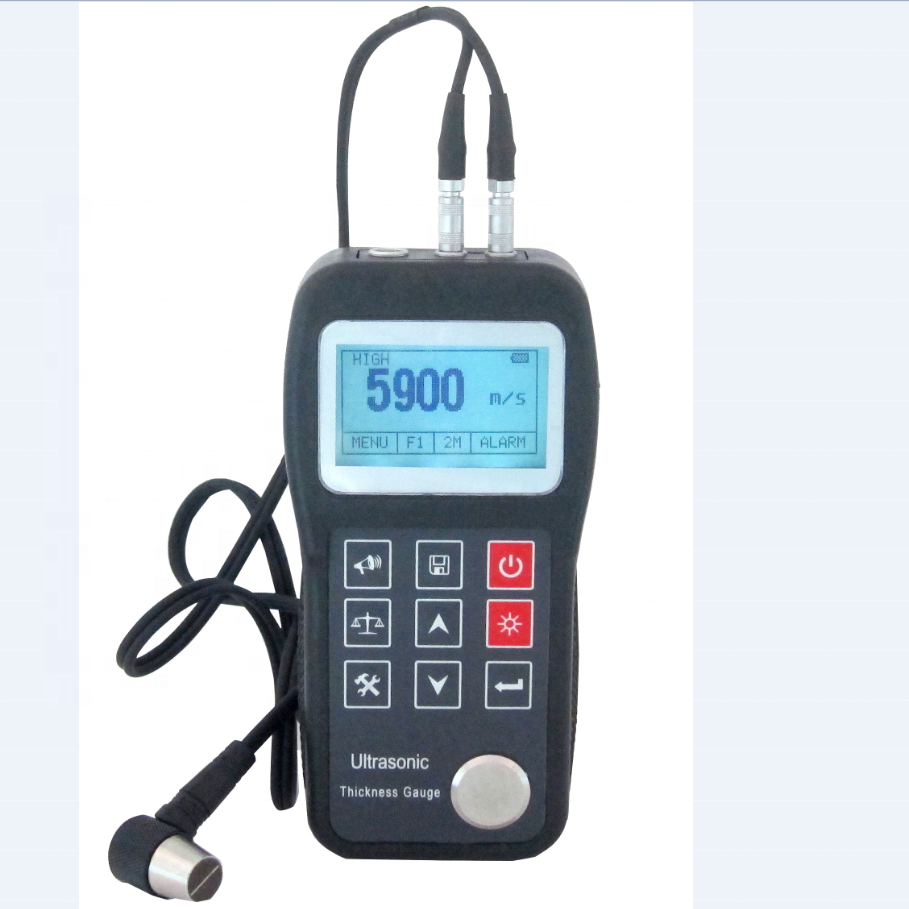

Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
|
Product Type:
|
SUT-320 Ultrasonic Thickness Gauge
|
|
Display
|
4.5'' LCD with EL backlight
|
|
Measuring range
|
0.75-300 mm in steel
|
|
Sound velocity range
|
1000-9999 m/s
|
|
Resolution
|
0.1mm
|
|
Accuracy
|
1% Thickness+0.1mm. depends on materials and conditions
|
|
Measurement frequency
|
4 times/s for single point, 10 times/s for scan mode.
|
|
Working modes
|
Single point and scanning measurement
|
|
Power supply
|
2 AA size 1.5V dry cell
|
|
Working time
|
100 hours around no backlight
|
|
Size and Weight
|
150X74X31mm. 245g
|
