Quick Details
-
Brand Name:
-
MING GE
-
Standard or Nonstandard:
-
Standard
-
Name:
-
High pressure bottle blowing machine valve
-
Type:
-
Normally Colsed, SOLENOID VALVES
-
Orifice:
-
15mm
-
Connection:
-
G1/2", G3/4"(NPT Available)
-
Voltage:
-
DC24V,AC220V~230V
-
Working pressure:
-
0.2~5Mpa (2~50Bar)
-
Ambient Temperature:
-
-5~50℃
-
Medium Temperature:
-
-5~80℃
-
Certification:
-
CE
Quick Details
-
Port Size:
-
1/2", 3/4"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
MG22H40-20
-
Brand Name:
-
MING GE
-
Standard or Nonstandard:
-
Standard
-
Name:
-
High pressure bottle blowing machine valve
-
Type:
-
Normally Colsed, SOLENOID VALVES
-
Orifice:
-
15mm
-
Connection:
-
G1/2", G3/4"(NPT Available)
-
Voltage:
-
DC24V,AC220V~230V
-
Working pressure:
-
0.2~5Mpa (2~50Bar)
-
Ambient Temperature:
-
-5~50℃
-
Medium Temperature:
-
-5~80℃
-
Certification:
-
CE

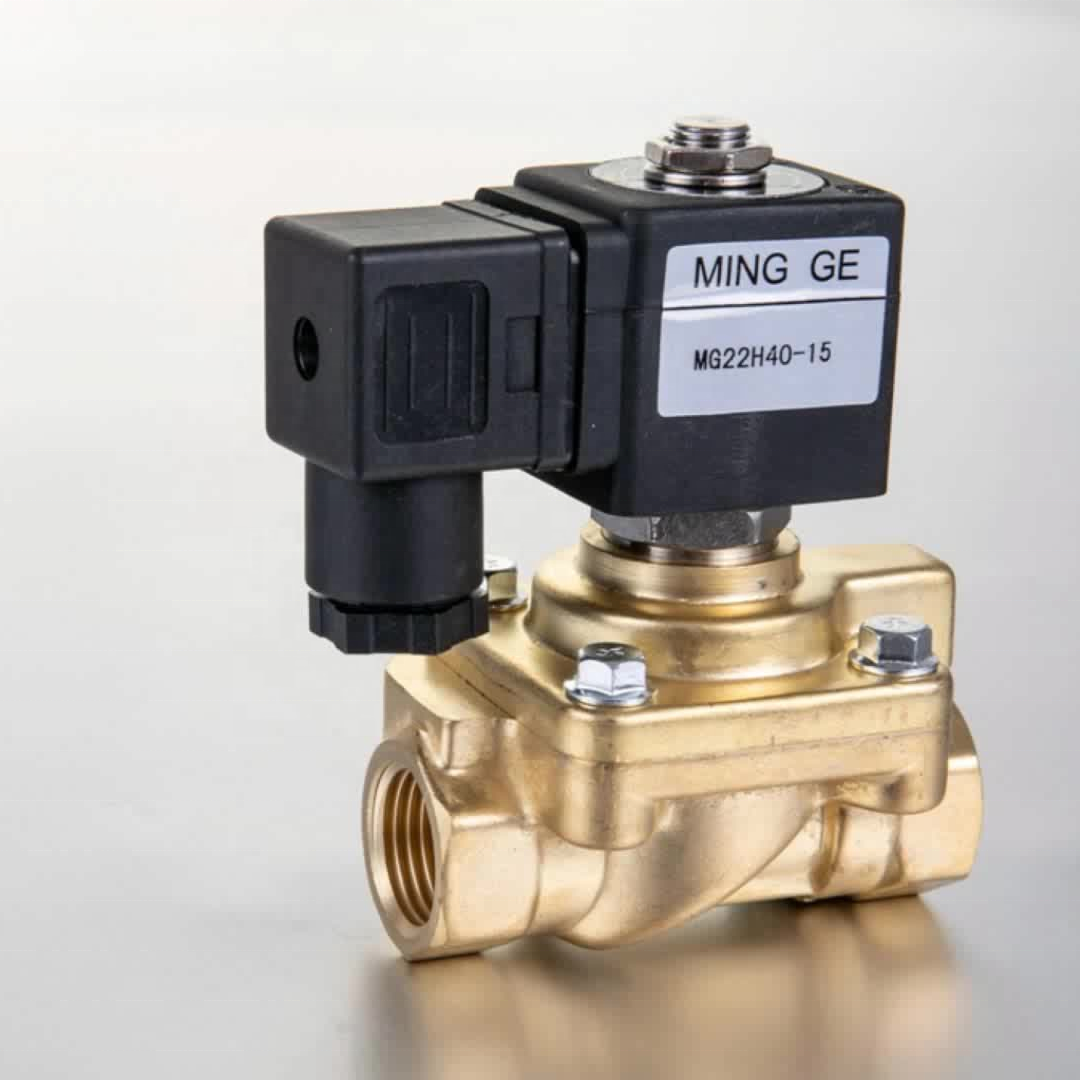

2/2 Way Solenoid Valve for High Pressure pneumatic applications - 40 bar (Normally Closed )
It can perfect replace the Parker 321H35, 321H36 type valve. and used widely in plastic bottle blowing machine (PET blowing machine).
Applications:
The life expectancy of several millions of cycles, with response time of few milliseconds, allows the use of these solenoid valves on intensive applications and on high technology machines, as the plastic bottle blowing machines, or the laser cutting machines.
|
Product Name
|
2/2 Way Solenoid Valve for High Pressure pneumatic applications - 40 bar
|
|
Model
|
MG22H40-15 (321H35), MG22H40-20 (321H36)
|
|
Orifice size
|
15 mm
|
|
Pipe mounting Thread
|
G 1/2", G 3/4" (NPT Available)
|
|
Working pressure
|
40 bar(maximum 50 bar)
|
|
Type
|
Pilot operated Normally closed solenoid valve
|
|
Brand
|
MING GE
|
|
Voltage
|
DC24V, AC220V~AC230V
|
|
Coil
|
Standard Coil Mono-Frequency, F Class, IP65
|
|
Used
|
Plastic bottle blowing machine (PET blowing machine), laser cutting machines.
|
